INSTALLATION AND
OPERATION MANUAL

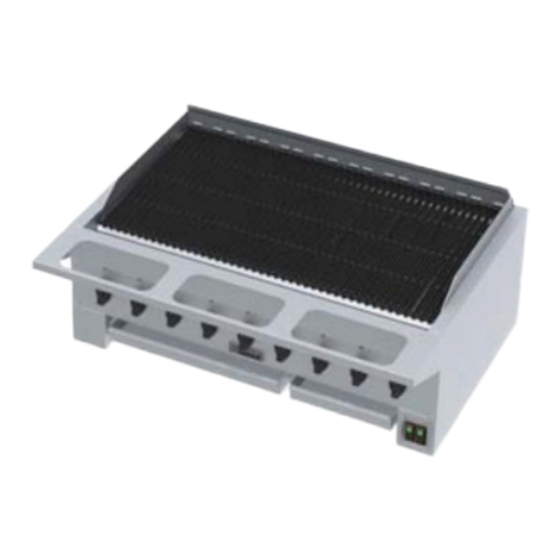

HIGH EFFICIENCY
RADIANT CHAR-BROILER
HEEGM24CE HEEGM48CE
HEEGM36CE HEEGM60CE
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that installation, maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or
which has been modified or repaired using unauthorized parts or by unauthorized service agents.
For a list of authorized service agents in your region, please refer to the Manitowoc Foodservice web site at:
http://www.ManitowocFoodservice.com.
The information contained herein, including design and parts specifications, may be superseded and is subject to
change without notice.
GARLAND COMMERCIAL RANGES, LTD.
1177 Kamato Rd., Mississauga, ON L4W 1X4 Canada
www.Garland-Group.com
Part # 4532435 Rev 02 (Sep 9/14)
APPLIANCE
MANITOWOC FOODSERVICE
Sales and Service: www.ManitowocFoodservice.com
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE.
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED.
For Your Safety:
In a clear and observable location, post
instructions to be followed if a user smells
gas. This information shall be obtained by
consulting your local gas supplier.
KEEP APPLIANCE AREA FREE AND CLEAR OF
COMBUSTIBLES.
© 2013 Garland Commercial Ranges Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Garland HEEGM24CE
Summary of Contents for Garland HEEGM24CE
- Page 1 Users are cautioned that installation, maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts. Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents.
-
Page 2: Table Of Contents
TABLE OF CONTENTS DIMENSIONS AND SPECIFICATIONS ..........3 Shipping Dimensions, Weight and Size . -
Page 3: Dimensions And Specifications
DIMENSIONS AND SPECIFICATIONS Shipping Dimensions, Weight and Size Shipping Dimensions: inch(mm) Shipping Shipping Model Weight Size Width Depth Height Lbs/Kg CuFT/CuM HEEGM24CE 40(1016) 45(1143) 25.5(648) 280/127 34.9/0.988 HEEGM36CE 52(1321) 45(1143) 25.5(648) 420/191 45.4/1.285 HEEGM48CE 64(1626) 45(1143) 25.5(648) 560/254 55.8/1.581 HEEGM60CE... -
Page 4: Dimensions
Dimensions Width Measurements Model Cook Width "C" Leg Pitch "D" Overall Width "E" Grease Tray 19.906in (506mm) 14.124in (359mm) 23.500in (597mm) SINGLE HEEGM24CE 29.906in (760mm) 24.124in (613mm) 33.500in (851mm) SINGLE HEEGM36CE 43.906in (1115mm) 38.124in (968mm) 47.500in (1207mm) DUAL HEEGM48CE 53.906in (1369mm) 48.124in (1222mm) -
Page 5: Pre-Installation
Two grate positions to choose from: the standard position, with a slight 2° slope to the front or the second position, with a 10° slope to the front and more distance between the product and the burner. • Large capacity, removable grease tray(s). HEEGM24CE & 36CE models have one tray and HEEGM48CE & 60CE have two trays. •... -
Page 6: Installation
THIS PRODUCT IS NOT AUTHORIZED FOR HOME OR 3. For cleanliness, the unit can be sealed to the mounting RESIDENTIAL USE. GARLAND WILL NOT PROVIDE SERVICE, surface with silicone. If sealing the unit to the surface, WARRANTY, MAINTENANCE OR SUPPORT OF ANY KIND avoid sealing lower stainless steel panels to the surface, OTHER THAN IN COMMERCIAL APPLICATIONS. -
Page 7: Electrical Connection
INSTALLATION continued 3. Air movement should be checked during installation. “ALL DOWNSTREAM BURNER AND PILOT VALVES There must be adequate air intake into the building MUST BE TURNED OFF PRIOR TO RESTORING THE to compensate for the amount of air removed by the GAS SUPPLY. -
Page 8: Start Up
INSTALLATION Continued 6. When pressure testing the gas supply piping to a FOR HEEGM24 & 36 SIZE UNITS maximum of ½ psi (14” WC, 34.9mbar), the appliance • Connect a manometer to the test spigot on the must be isolated from the supply line by closing the manifold. -
Page 9: Operation
2. Models HEEGM24CE and HEEGM36CE have one power independently as shown below: switch on the lower right side of the unit. Once pushed •... -
Page 10: Warnings
& maintaining their appliance power cord. Take care not to expose the power cord to on a regular basis. Garland will not be responsible for heat (ie: under grease tray, near fl ue or grate support performance reductions and/or fi res resulting from etc) and be careful not to damage the cord by pinching misuse and/or poor cleaning &... -
Page 11: Optional Equipment
USE AND CARE continued immediately and should not be used until it has been serviced by a qualifi ed technician and deemed safe to operate. Optional Equipment As an option, your appliance may have been supplied with a special top grate designed to hold and heat fajita pans. This appliance is certifi ed to use only one of these fajita pan grates at a time. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE THIS APPLIANCE WILL PERFORM OPTIMALLY AND LAST • Do not attempt to clean the grates by burning off LONGER IF IT IS PROPERLY MAINTAINED. FOLLOWING A grease/debris. The cooking grates on this unit are CLEANING SCHEDULE AND HAVING THE UNIT CHECKED shielded from open fl ame by the radiants. -
Page 13: Daily Cleaning
CLEANING AND MAINTENANCE continued Daily Cleaning 2. Remove the burners and hanging shields from the unit as follows: 1. Scrape and/or brush the cooking grates using the • Remove the pins at the rear of the burner tool provided or any other cleaning tool of preference while the grates are still warm. -
Page 14: Maintenance
Manitowoc service agency. All repairs must be performed by a qualifi ed technician, using genuine Garland replacement parts or risk negating the warranty. For a list of Authorized Service Agents or to view a Genuine Parts list for your appliance, visit the Manitowoc Foodservice website at: http://www. - Page 15 NOTES Part # 4532435 Rev 02 (Sep 9/14) Page 15...
- Page 16 Installation and Operation Manual High Effi ciency Radiant Char-Broiler — HEEGMxxCE GARLAND COMMERCIAL RANGES, LTD. MANITOWOC FOODSERVICE 1177 Kamato Rd., Mississauga, ON L4W 1X4 Canada Sales and Service: www.ManitowocFoodservice.com www.Garland-Group.com Part # 4532435 Rev 02 (09/09/14) © 2013 Garland Commercial Ranges Ltd.
