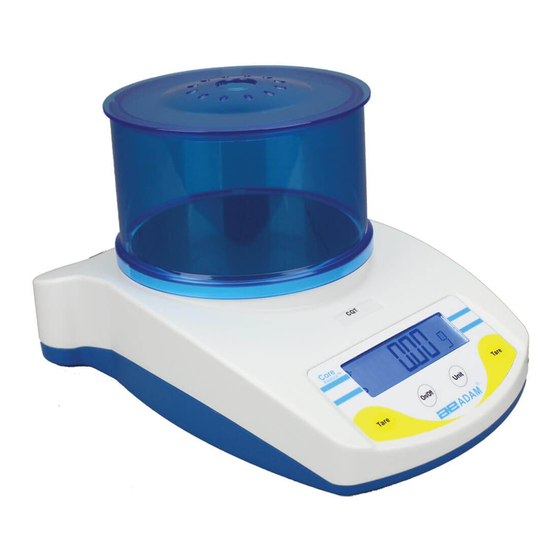

- Page 1 Adam Equipment CORE SERIES (P.N. 3.08.6.6.9539, Revision B4, April 2012) Adam Equipment 2012...
- Page 2 Easy Reference: Model name of the balance: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: Adam Equipment 2012...
-
Page 3: Table Of Contents
ZEROING / TARE ..........................8 WEIGHING ............................9 WEIGHING UNITS ..........................9 PARAMETERS ............................10 AUTO POWER OFF........................10 SETTING THE BACKLIGHT ......................11 ENABLING THE WEIGHING UNITS ....................11 CALIBRATION.............................13 TROUBLE SHOOTING........................14 ERROR MESSAGES ........................14 REPLACEMENT PARTS AND ACCESSORIES ................15 SPECIFICATIONS..........................16 WARRANTY STATEMENT .........................17 Adam Equipment 2012... -
Page 4: Set Up
3) Place the stainless steel pan on top of the plastic pan. 4) Place the balance on a firm and flat surface for accurate weighing. Adam Equipment 2012... -
Page 5: Installing Batteries
AC adapter socket Lock down slot Stainless Steel pan Plastic Pan LCD display [On/Off] key Turns the balance power on/off [Unit] key Changes weighing units. Also used when calibrating [Tare] key Sets display to zero or tares the balance Adam Equipment 2012... - Page 6 BOTTOM Battery compartment screws Battery compartment cover Batteries are not included DISPLAY battery indicator ZERO indicator Indicates when the balance zero is correct. STABLE indicator Indicates when the reading is stable. Adam Equipment 2012...
-
Page 7: Locating And Protecting Your Balance
Keep the balances clean, and do not stack material on the balance when it is not in use. The Core has a stacking feature allowing more than one unit to be stacked on top of each other. For more details on this see the section on storing. Adam Equipment 2012... -
Page 8: Storing When Not In Use
Note: Only 4.7” / 120mm ø pan size models can be stacked for storage. Core models with 5.7” / 145mm ø may be stacked at the top of the pile but machines cannot be stacked on top of them due to the larger pan size. Adam Equipment 2012... -
Page 9: Basic Operation
Note: When the container is removed a negative value will be shown. If the balance was tared just before removing the container, this value is the gross weight of the container plus all items inside the container which were removed. Adam Equipment 2012... -
Page 10: Weighing
To change the weighing units, press [Unit] to cycle through the available units. See the Parameter section to enable or disable the weighing units. Once the unit has been selected, the weight will be displayed in the selected unit and a symbol for the weight will be shown. Adam Equipment 2012... -
Page 11: Parameters
80 seconds before the power will switch off 90 PWR 90 seconds before the power will switch off 4) Press the [Unit] key to confirm the setting 5) To exit turn the balance off and back on again Adam Equipment 2012... -
Page 12: Setting The Backlight
4) Press the [Tare] key to select on or oFF. 5) Press the [Unit] key to move to the next weighing unit. 6) Repeat steps 5 and 6 until you have set all of the weighing units. Adam Equipment 2012... - Page 13 Avoirdupois unit there are 16 DR in an 0.564383 ounce. Grains A basic weighing unit in the imperial 15.432 system. Used to weigh gun powder. Newtons Used to measure force 0.009808 Taiwanese Used to weigh coral, pearls etc. 0.026666 Tl.t taels Adam Equipment 2012...
-
Page 14: Calibration
8) If the weight is within 5% of the last calibration value the display will show PASS and exit the calibration mode. If the calibration is not successful the display will show FAIL and exit the calibration mode, if the calibration fails try it again. Adam Equipment 2012... -
Page 15: Trouble Shooting
Possible damage to the Loadcell. Make sure the balance is on a cannot get a stable flat surface and away from reading. vibration. No Power when turning Battery may be flat. AC adapter Change the batteries. Or use may not be working. the AC adapter Adam Equipment 2012... -
Page 16: Replacement Parts And Accessories
POWER SUPPLY STANDARD MODEL 12Vac 150ma- EURO 7.00.4.0.0027 POWER SUPPLY STANDARD MODEL 12Vac 150ma- SA 3.08.1.2.2009 TOP PAN 120mm 3.08.1.2.2011 TOP PAN 145mm 3.08.2.3.2031 BREEZE SHIELD WITH LID 3.08.2.3.2033 IN USE COVER 7.00.1.0.0046 SECURITY LOCK AND CABLE Adam Equipment 2012... -
Page 17: Specifications
Balance Housing ABS Plastic Pan Size 120mm ø (4.7” ø) 145mm ø (5.7” ø) Overall Dimensions 173 x 255 x 86mm (6.8” x 10” x 3.4”) (w x d x h) Without draft shield Net Weight 820g (1.8lb) Adam Equipment 2012... -
Page 18: Warranty Statement
8.0 WARRANTY STATEMENT Adam Equipment offers Limited Warranty (Parts and Labour) for the components failed due to defects in materials or workmanship. Warranty starts from the date of delivery. During the warranty period, should any repairs be necessary, the purchaser must inform its supplier or Adam Equipment Company. - Page 19 Shielded interconnect cables must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by Adam Equipment could void the user's authority to operate the equipment. WEE COMPLIANCE...
- Page 20 For a complete listing of all Adam products visit our website at www.adamequipment.com © Copyright by Adam Equipment Co. Ltd. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment.
