Summary of Contents for Adam Equipment SWZ 6D

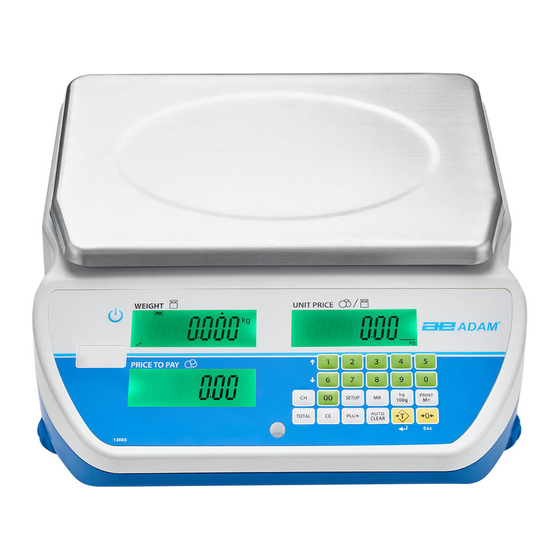

- Page 1 Adam Equipment Swift SWZ SERIES (with EC type Approval) Software rev: V 1.00 & above © Adam Equipment Co Ltd 2018...
- Page 2 Easy Reference: Model name of the balance: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase and Address: Name and address of the supplier: © Adam Equipment Co Ltd 2018...
-
Page 3: Table Of Contents
To set the backlight: ..................14 Backlight operation ..................14 4.10 RS-232 INTERFACE ................15 4.10.1 Input commands format .............. 15 4.10.2 RS-232 Setup ................15 © Adam Equipment Co Ltd 2018... - Page 4 Please read carefully following instructions for installation and use before starting your work with a new balance. Failure to use the balance in accordance with the advice in the user manual could mean that the product gives incorrect readings © Adam Equipment Co Ltd 2018...
-
Page 5: Introduction
• Real Time Clock (RTC) and date • RS-232 bi-directional interface • Battery operated for portability • 90 hours battery life when fully charged • Up to 103 Prices (PLU) stored for easy access © Adam Equipment Co Ltd 2018... -
Page 6: Specifications
3 x 6 digits backlit LCD displays Housing ABS Plastic with Stainless Steel Pan Overall Dimensions 315 x 355 x 110 mm 315 x 355 x 535 mm Net Weight 4.3 kg 4.7 kg © Adam Equipment Co Ltd 2018... - Page 7 Housing ABS Plastic with Stainless Steel Pan Overall Dimensions 315 x 355 x 110 mm 315 x 355 x 535 mm Net Weight 4.3 kg 4.7 kg *NOTE: SWZ-P models have the Pillar Display. © Adam Equipment Co Ltd 2018...
-
Page 8: Installation
Avoid air movement such as from fans or opening doors. Do not place near open windows or air- conditioning vents. Keep the scales clean. Do not stack material on the scales when they are not in use. © Adam Equipment Co Ltd 2018... -
Page 9: Setting Up The Scales
(if a tare value has been entered). It also indicates when the scale is stable. The window for the Unit Price has arrows to show when the Auto Clear function is active and if the unit price is per 100g or per kilogram © Adam Equipment Co Ltd 2018... -
Page 10: Battery Charging
If the battery has not been used properly or it is used for a number of years it may eventually fail to hold a full charge. If the battery life becomes unacceptable then contact your distributor or Adam Equipment. KEY DESCRIPTIONS © Adam Equipment Co Ltd 2018... - Page 11 It selects the unit price per kilogram or per 100g. Note: This key is not available for South Africa and Far East models [Print M+] It sends the results of the current displays to the RS-232 interface. © Adam Equipment Co Ltd 2018...
-
Page 12: Operation
As product is added only the weight of the product will be shown. 4) When the product and container are removed the weight window will show a negative value. To use a different container, remove this negative tare value by pressing [Tare] ↵ once more. © Adam Equipment Co Ltd 2018... -
Page 13: Determining Value Of A Product By Weight
PLU values. The individual PLU values should be entered against specific items before the weighing process starts so that the desired PLU’s can be recalled during the weighing process. © Adam Equipment Co Ltd 2018... -
Page 14: Entering Values For The Plus
2) Press and hold down the key [PLU+] for more than 3 seconds till a beep is heard, then release the key. It will show “Store” 3) Press the [tare] key to show “PoS 00” ” ” on the price to pay display. © Adam Equipment Co Ltd 2018... -
Page 15: Auto Clear Key
2, 5 10 and 15 or “off”. ↵ 3) Press the [Tare] key to set the amount of time until this function activates or to turn this off. © Adam Equipment Co Ltd 2018... -
Page 16: Backlight Operation
It will turn off automatically after a few seconds when the weight is zero or after a while, the last key was pressed. © Adam Equipment Co Ltd 2018... -
Page 17: Rs-232 Interface
Press and hold the [Print] key for 4 seconds to access the parameters. Press [Print] to scroll ↵ through the options and [Tare] to confirm the change and then advance to the next parameter. © Adam Equipment Co Ltd 2018... - Page 18 UNIT PRICE TOTAL ------------------------------------- £ 1.20/100g 0.200kg £ 2.40 Label 2 (Spanish with $ shown): FECHA 2017/04/08 HORA 04:00:30 PRECIO UNIT. $ 10.99/100g NETO 0.200kg TOTAL $ 21.98 Label 3 (Weight only): + 0.200kg © Adam Equipment Co Ltd 2018...
-
Page 19: Real Time Clock Setup
To change the date, follow the same process as above, selecting “date” from the setup menu. Here you will be presented with several formats: “Y-m-d” year, month, day “m-d-Y” month, day, year “d-m-Y” day, month, year © Adam Equipment Co Ltd 2018... -
Page 20: Error Codes
CALIBRATION The SWZ scales are sealed to prevent unauthorised calibration. Contact Adam Equipment or your supplier for more details. WARNING: CALIBRATION OF THE SCALES MAY MAKE IT ILLEGAL TO USE THE SCALES FOR SALES OF GOODS. CONTACT YOUR TRAIDING STANDARDS OFFICE FOR FURTHER ASSISTANCE. -
Page 21: Replacement Parts And Accessories
If you need to order any spare parts and accessories, contact your supplier or Adam Equipment. A partial list of such items is as follows- • Main Power cord • In use cover • Replacement Battery • Stainless Steel Pan © Adam Equipment Co Ltd 2018... -
Page 22: Warranty Statement
This product may include a rechargeable battery that is designed to be removed and replaced by the user. Adam Equipment warrants that it will provide a replacement battery if the battery manifests a defect in materials or workmanship during the initial period of use of the product in which the battery is installed. - Page 23 California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency. As we often update adaptor products to meet changing legislation it is not possible to refer to the exact model in this manual.
- Page 24 © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
