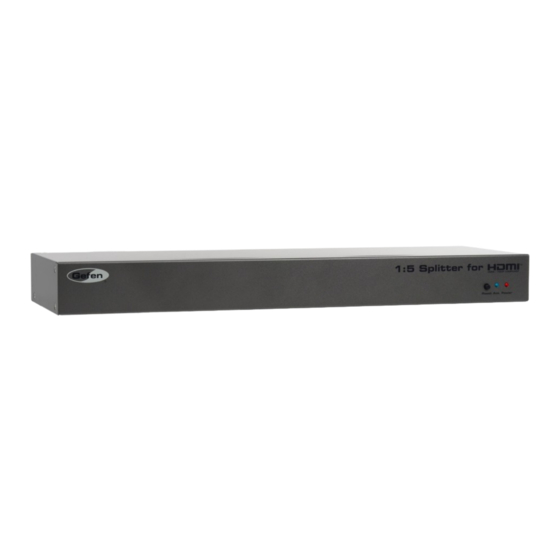

Gefen EXT-HDMI1.3-145 User Manual

1:5 splitter for hdmi 1.3
Hide thumbs Also See for EXT-HDMI1.3-145:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
®
1:5 Splitter for
HDMI
1.3
®
EXT-HDMI1.3-145
User Manual
www.gefen.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-HDMI1.3-145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gefen EXT-HDMI1.3-145

Summary of Contents for Gefen EXT-HDMI1.3-145

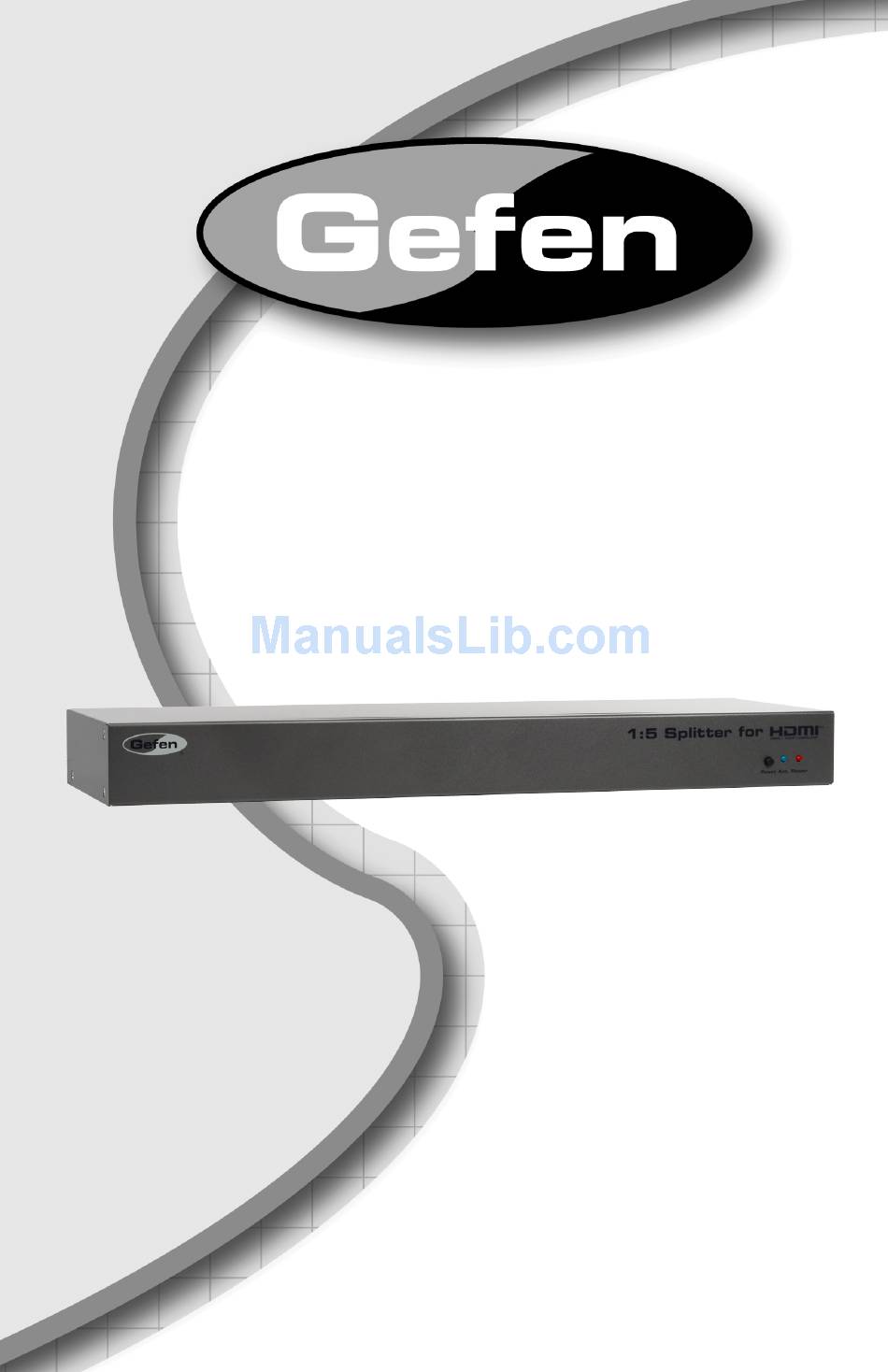

  • Page 1 ® 1:5 Splitter for HDMI ® EXT-HDMI1.3-145 User Manual www.gefen.com...
  • Page 3 Chatsworth, CA 91311 www.gefen.com support@gefen.com Notice Gefen, LLC reserves the right to make changes in the hardware, packaging, and any accompanying documentation without prior written notice. 1:5 Splitter For HDMI 1.3 is a trademark of Gefen, LLC HDMI, the logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing in the United States and other countries.

  • Page 4: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 1:5 Splitter For HDMI 1.3 EDID Management Specifications 10 Warranty...

  • Page 5: Introduction

    The Gefen 1:5 Splitter For HDMI 1.3 The Gefen 1:5 Splitter For HDMI 1.3 allows set-top boxes, DVD players, and other HDTV devices to be connected up to five HDTV displays. When two or more Splitters are connected together, they can be used to create a larger video signal distribution.

  • Page 6: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:5 SPLITTER FOR HDMI 1.3 • By default, display information from the display connected to HDMI output port 1 is sent back to the source. Therefore, the other display connected to the 1:5 Splitter For HDMI 1.3 must be capable of accepting the timings, resolutions and audio formats of the display that is connected to HDMI output port 1.

  • Page 7: Features

    Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter • HDMI and HDCP compliant Package Includes (1) Gefen 1:5 Splitter For HDMI 1.3 (1) 6 ft HDMI cable (M-M) (1) 24V DC Power Supply (1) Rack Ears (1) User Manual...

  • Page 8: Panel Layout

    PANEL LAYOUT...

  • Page 9: Panel Descriptions

    PANEL DESCRIPTIONS Reset Button This button will cycle power on the 1:5 Splitter For HDMI 1.3. If the EDID mode has been changed it will not take effect until the unit has been reset. Activity Indicator This LED indicator will turn bright blue when an input signal is detected. Power LED Indicator This LED indicator will become active once the included 24V DC power adapter has been properly connected.

  • Page 10: Connecting And Operating The 1:5 Splitter For Hdmi 1.3

    Connect the included 24V DC power adapter to the 1:5 Splitter For HDMI 1.3 power input port. Power on the displays first and then the source. Wiring Diagram for the Gefen 1:5 Splitter For HDMI 1.3 HDMI CABLE Hi-Def Source...

  • Page 11: Edid Management

    To use this mode, press the EDID button on the rear panel until the front- panel LED marked “Int” turns bright green. This mode will use a preset EDID, from the factory, that is stored in the Gefen 1:5 Splitter For HDMI 1.3. This pre-programmed standard EDID data structure is compatible with most A/V display devices.
  • Page 12 EDID MANAGEMENT External EDID Management The 1:5 Splitter For HDMI 1.3 features EDID Management. Before the source can send video or audio signals, the source device reads the EDID (Extended Display Identification Data) from the output devices connected to the Splitter. The EDID contains information about what type of A/V data that the source can send to each output device.

  • Page 13: Specifications

    SPECIFICATIONS Video Amplifier Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................5V p-p (TTL) Single Link Range ......... 1080p/60 12 Bit Color Depth, 1920x1200 HDMI Connectors ............(6) Type A ,19 Pin Female Power Consumption ................

  • Page 14: Warranty

    If equipment fails because of such defects and Gefen is notified within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifications.
  • Page 16 Rev B6 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com This product uses UL listed power supplies.
