- Page 1 ® 1:5 Splitter for ® HDMI EXT-HDMI1.3-145 User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:5 Splitter For HDMI 1.3 is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 1:5 Splitter For HDMI 1.3 EDID Management Specifi cations 10 Warranty... -
Page 4: Introduction

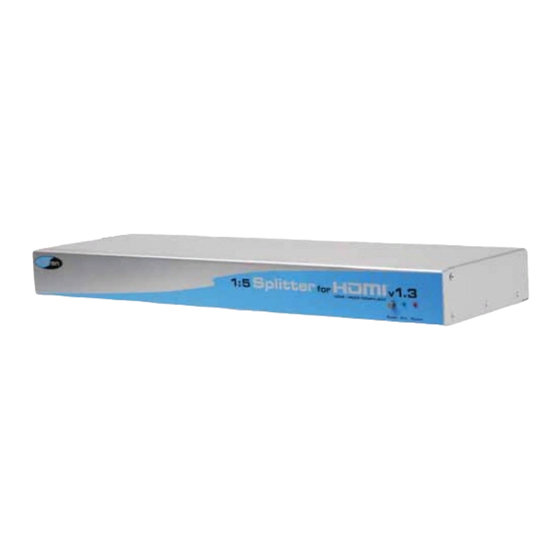

The Gefen 1:5 Splitter For HDMI 1.3 The Gefen 1:5 Splitter For HDMI 1.3 allows set-top boxes, DVD players, and other HDTV devices to be connected to four or more HDTV displays. When two or more Splitters are connected together, they can be used to create a larger video signal distribution. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:5 SPLITTER FOR HDMI 1.3 • By default, display information from the display connected to HDMI output port 1 is sent back to the source. Therefore, the other display connected to the 1:5 Splitter For HDMI 1.3 must be capable of accepting the timings, resolutions and audio formats of the display that is connected to HDMI output port 1. -
Page 6: Features
Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter • HDMI and HDCP compliant Package Includes (1) Gefen 1:5 Splitter For HDMI 1.3 (1) 6 ft HDMI cable (M-M) (1) 5V DC Power Supply (1) User Manual... -
Page 7: Panel Layout
PANEL LAYOUT... -
Page 8: Panel Descriptions
PANEL DESCRIPTIONS Reset Button This button will cycle power on the 1:5 Splitter For HDMI 1.3. If the EDID mode has been changed it will not take effect until the unit has been reset. Activity Indicator This LED indicator will turn bright blue when an input signal is detected. Power LED Indicator This LED indicator will become active once the included 5V DC power adapter has been properly connected. -
Page 9: Connecting And Operating The 1:5 Splitter For Hdmi 1.3
Connect the included 24V DC power adapter to the 1:5 Splitter For HDMI 1.3 power input port. Power on the displays fi rst and then the source. Wiring Diagram for the Gefen 1:5 Splitter For HDMI 1.3 HDMI CABLE HDMI Source... -
Page 10: Edid Management
To use this mode, press the EDID button on the rear panel until the front- panel LED marked “Int” turns bright green. This mode will use a preset EDID, from the factory, that is stored in the Gefen 1:5 Splitter For HDMI 1.3. This pre-programmed standard EDID data structure is compatible with most A/V display devices. - Page 11 EDID MANAGEMENT External EDID Management The 1:5 Splitter For HDMI 1.3 features EDID Management. Before the source can send video or audio signals, the source device reads the EDID (Extended Display Identifi cation Data) from the output devices connected to the Splitter. The EDID contains information about what type of A/V data that the source can send to each output device.
-
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Single Link Range ......... 1080p/60 12 Bit Color Depth, 1920x1200 HDMI Connectors ............(6) Type A ,19 Pin Female Power Consumption ............... - Page 15 Rev B3 2.1M 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
