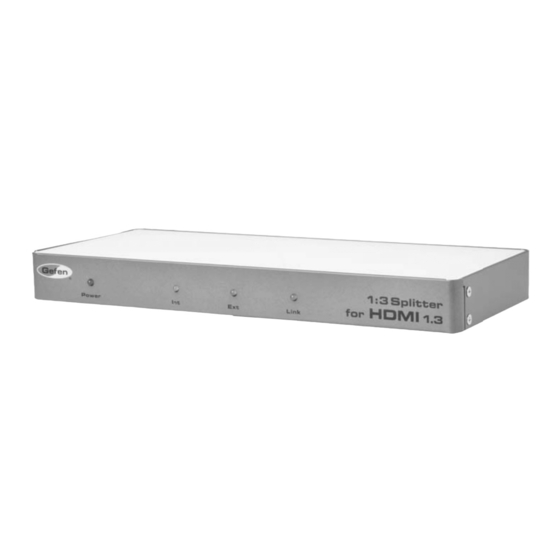

Gefen EXT-HDMI1.3-143 User Manual

Gefen EXT-HDMI1.3-143 User Manual

1:3 splitter for hdmi 1.3
Hide thumbs Also See for EXT-HDMI1.3-143:

Advertisement

Quick Links

®
1:3 Splitter For
1.3
EXT-HDMI1.3-143
User Manual
www.gefen.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXT-HDMI1.3-143 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen EXT-HDMI1.3-143

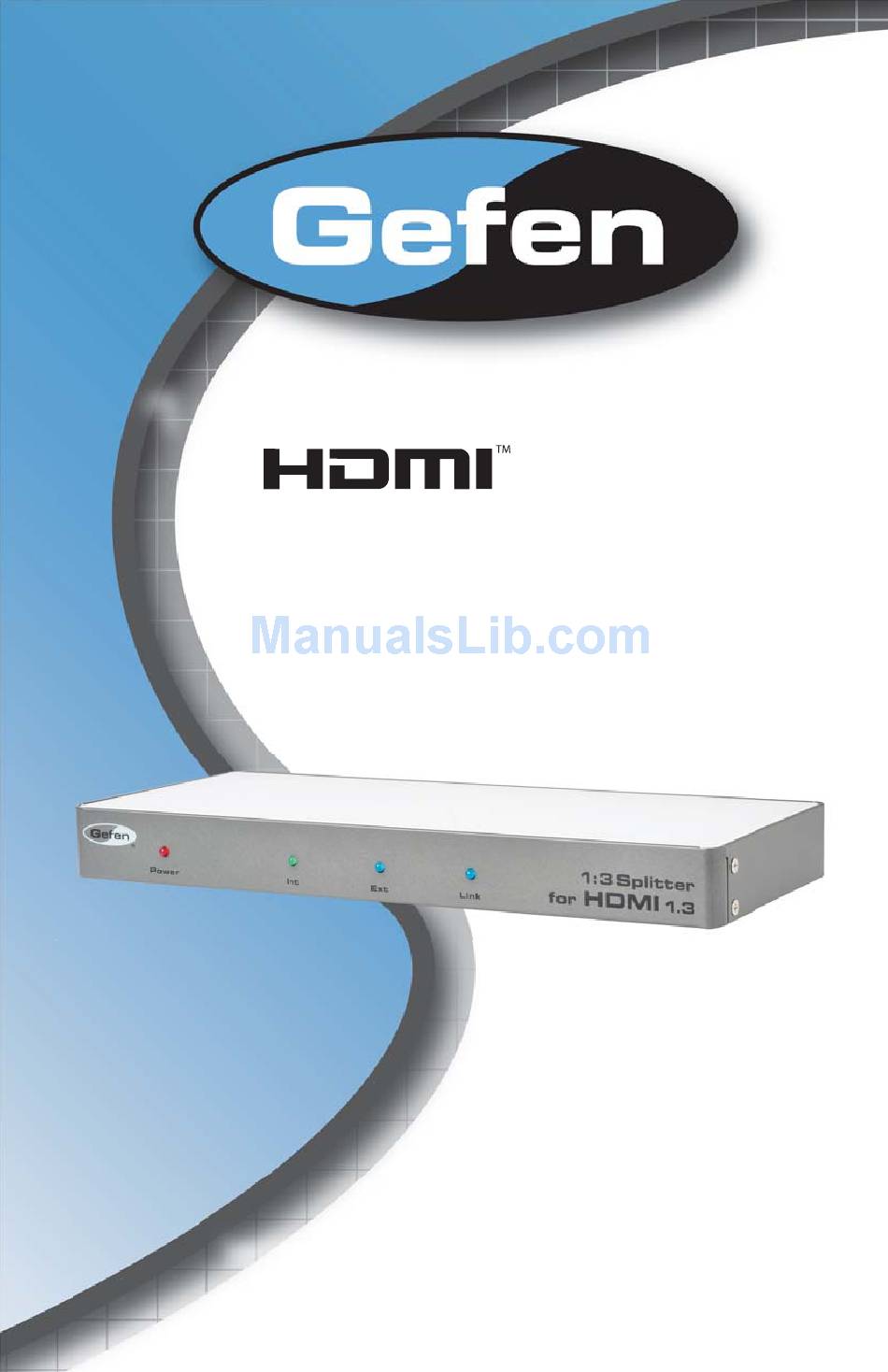

  • Page 1 ® 1:3 Splitter For EXT-HDMI1.3-143 User Manual www.gefen.com...
  • Page 2 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:3 Splitter For HDMI 1.3 is a trademark of Gefen Inc. © 2010 Gefen Inc., All Rights Reserved...
  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Layout Panel Descriptions Connecting And Operating The 1:3 Splitter For HDMI 1.3 Specifi cations Warranty...
  • Page 4: Introduction

    The Gefen 1:3 Splitter For HDMI 1.3 The Gefen 1:3 Splitter For HDMI 1.3 allows set-top boxes, DVD players, and other HDTV devices to be connected to three or more HDTV displays. When two or more Splitters are connected together, they can be used to create a larger video signal distribution.
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:3 SPLITTER FOR HDMI 1.3 • Display information (EDID) is needed by the source to determine the capabilities of the connected display. This is especially important for HDMI 1.3 sources because without the right information in the EDID none of the features for HDMI1.3 will be enabled.
  • Page 6: Features

    FEATURES Features • Connects up to three HDMI™ / DVI displays at the same time to one video source. • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved. •...
  • Page 7: Panel Layout

    PANEL LAYOUT Front Panel Back Panel...
  • Page 8: Panel Descriptions

    PANEL DESCRIPTIONS Power LED Indicator This LED indicator will become active once the included 5V DC power adapter has been properly connected. Internal EDID LED Indicator This LED indicator will become active when the internal EDID has been selected. This is a built-in EDID. External EDID LED Indicator This LED indicator will become active when the external EDID has been selected.
  • Page 9: Connecting And Operating The 1:3 Splitter For Hdmi 1.3

    CONNECTING AND OPERATING THE 1:3 SPLITTER FOR HDMI 1.3 How to Connect the 1:3 Splitter For HDMI 1.3 Connect the HDMI or DVI (with a DVI to HDMI adapter or cable) source device to the 1:3 Splitter For HDMI 1.3 HDMI input port using the supplied HDMI cable.
  • Page 10: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ................1.2 Volts p-p Input DDC Signal ................. 5 Volts p-p (TTL) Single Link Range ......... 1080p/60 12 Bit Color Depth, 1920x1200 HDMI Connector ..............Type A ,19 Pin Female Power Consumption ...............
  • Page 12 Rev B 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...

This manual is also suitable for:

Ext-hdmi1.3-144
