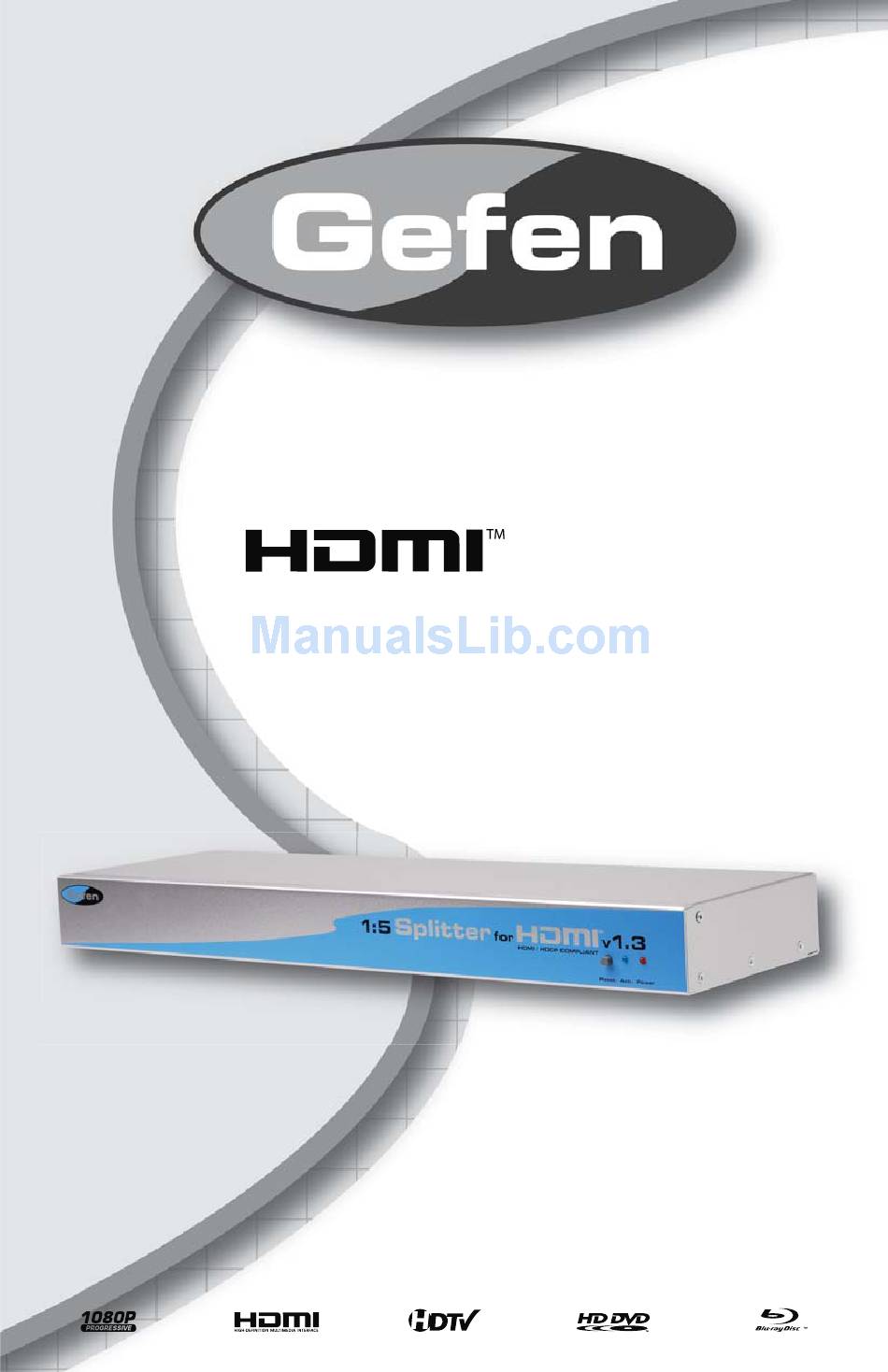

- Page 1 1:5 Splitter For HDMI Model #EXT-HDMI1.3-145 U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:5 Splitter For HDMI 1.3 is a trademark of Gefen Inc.
- Page 3 Introduction Features Panel Descriptions Connecting and Operating the 1:5 Splitter for HDMI 1.3 Specifi cations Warranty TABLE OF CONTENTS...

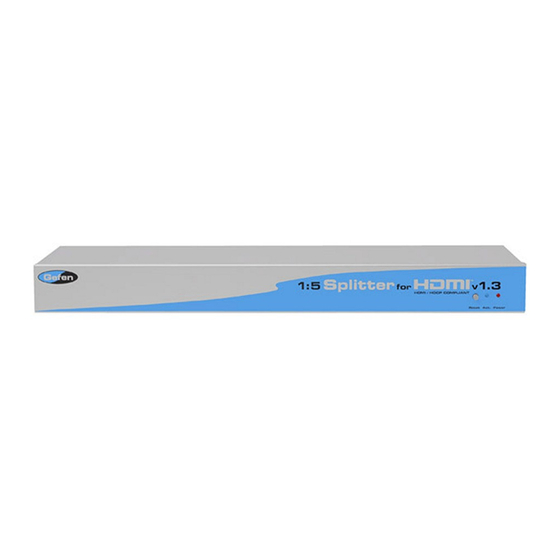

- Page 4 The Gefen 1:5 Splitter for HDMI 1.3 allows set-top boxes, DVD players, Blu- ray players and other HDTV devices with HDMI outputs to be connected to up to fi ve HDTV displays (or more if multiple splitters are utilized in place of...
- Page 5 Features • Lip-Sync Pass Through • 225 MHz (up to 12 bit YUV 444 supported @ 1080p) • Deep Color Supported (XV Color Supported) • Color Space Conversion Supported • Dolby Tru-HD & DTS Master Supported • CEC Pass Through Includes: (1) 1:5 Splitter for HDMI 1.3 (1) 6 ft HDMI cable (m-m)
- Page 6 PANEL DESCRIPTIONS...
- Page 7 CONNECTING AND OPERATING THE 1:5 SPLITTER FOR HDMI 1.3 How to Connect the 1:5 Splitter for HDMI 1.3 to your devices Connect the supplied cable from the HDTV HDMI source into the 1:5 Splitter for HDMI 1.3 input. Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1:5 Splitter for HDMI 1.3.
- Page 8 SPECIFICATIONS Video Amplifi er Bandwidth...225 MHz Input Video Signal...1.2 volts p-p Input DDC Signal...5 volts p-p (TTL) Single Link Range...1080p/1920 x 1200 HDMI Connector...type A 19 pin female Power Supply...24V DC Power Consumption...60 watts (max) Dimensions...17”W x 1.75”H x 5.5”D Rackmountable...1U rack space Shipping Weight...5 lbs.
