Gefen EXT-HDMI1.3-142D User Manual

Gefen EXT-HDMI1.3-142D User Manual

1:2 splitter for hdmi 1.3
Hide thumbs Also See for EXT-HDMI1.3-142D:

Advertisement

Quick Links

®
1:2 Splitter for
EXT-HDMI1.3-142D
User's Manual
www.gefen.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the EXT-HDMI1.3-142D and is the answer not in the manual?

Questions and answers

Summary of Contents for Gefen EXT-HDMI1.3-142D

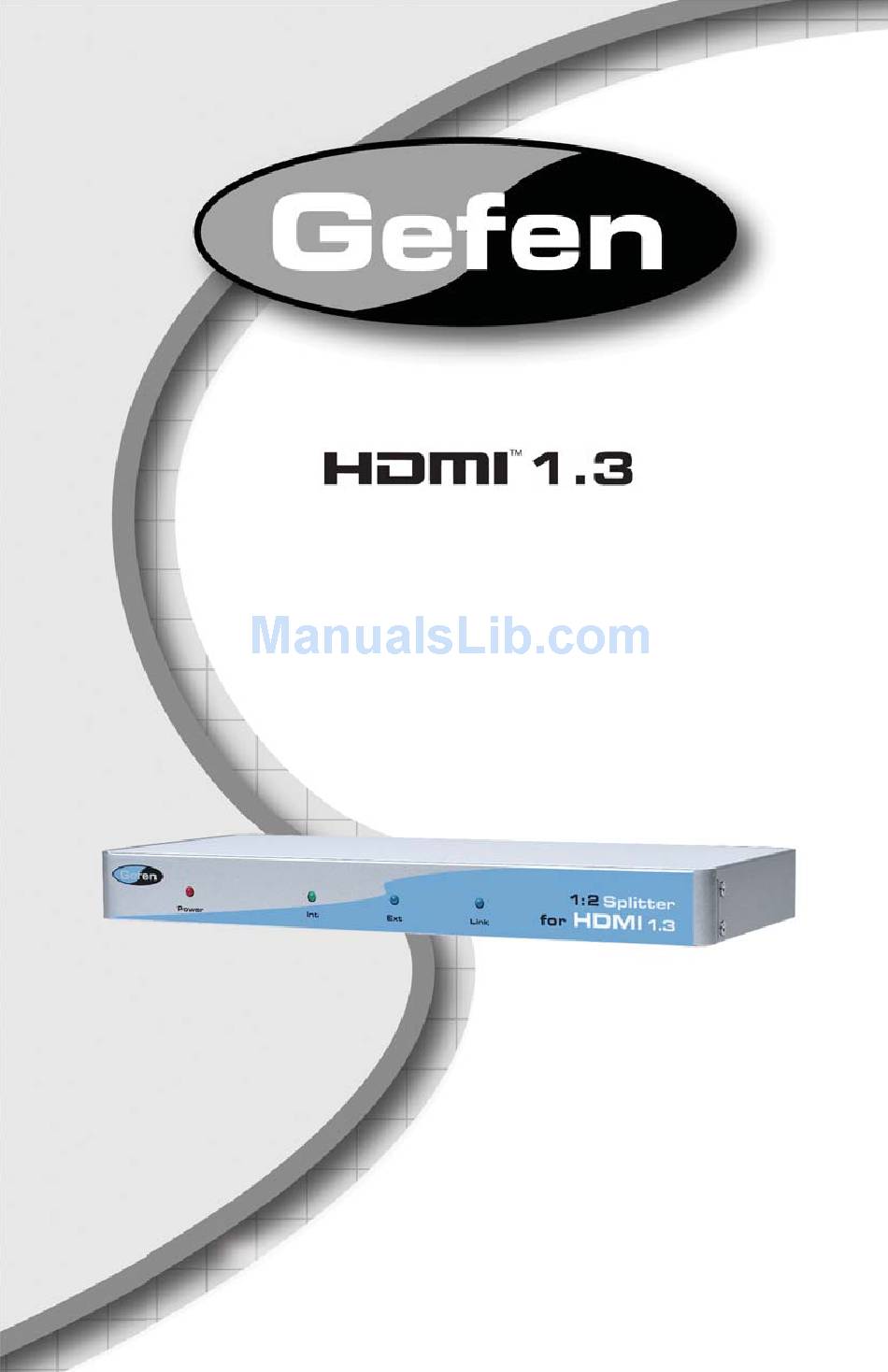

  • Page 1 ® 1:2 Splitter for EXT-HDMI1.3-142D User’s Manual www.gefen.com...
  • Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:2 Splitter For HDMI 1.3 is a trademark of Gefen, LLC © 2010 Gefen, LLC, All Rights Reserved...
  • Page 3: Table Of Contents

    CONTENTS Introduction Operation Notes Features Panel Descriptions Panel Descriptions Connecting And Operating The 1:2 Splitter For HDMI Specifi cations Warranty...
  • Page 4: Introduction

    1:2 Splitters together to create a larger distribution. How It Works An HDMI source connects to the HDMI input connector on the Gefen 1:2 Splitter for HDMI 1.3. Two HDMI outputs from the 1:2 Splitter connect to two HDMI- compliant Displays.
  • Page 5: Operation Notes

    OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:2 SPLITTER FOR HDMI • By default, display information from the display connected to HDMI output port 1 is sent back to the source. Therefore, the other display connected to the 1:2 Splitter for HDMI 1.3 must be capable of accepting the timings, resolutions and audio formats of the display that is connected to HDMI output port 1.
  • Page 6: Features

    FEATURES Features • Connects up to two HDMI / DVI displays from one HDMI source • Optionally add more displays by connecting splitters • Easily attains resolutions up to 1080p, 2k, and 1920 x 1200 • HDMI and HDCP compliant HDMI 1.3 Features •...
  • Page 7: Panel Descriptions

    PANEL DESCRIPTIONS Front Panel Back Panel Back Panel Power LED This LED will activate once a valid power source is applied. Internal EDID LED This LED will activate only when the pre-programmed internal EDID is being used. Please see page 6 for more details on the internal EDID. External EDID LED (default EDID routing) This LED will activate only when the external EDID is being used.
  • Page 8: Panel Descriptions

    PANEL DESCRIPTIONS Reset Button This button will reset the unit and initialize whichever EDID mode is currently selected. HDMI Input This is the input for the HDMI source device. When a valid source is detected by the splitter, the Link LED will activate. HDMI Out 1 This is the fi...
  • Page 9: Connecting And Operating The 1:2 Splitter For Hdmi

    CONNECTING AND OPERATING THE 1:2 SPLITTER FOR HDMI1.3 How to Connect the 1:2 Splitter For HDMI 1.3 Connect the supplied cable from the HDMI source into the 1:2 Splitter for HDMI 1.3 input. Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1:2 Splitter for HDMI 1.3.
  • Page 10: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ..............1.2 Volts p-p Input DDC Signal ..............5 Volts p-p (TTL) Single Link Range ............1080p/1920 x 1200 HDMI Connector ............Type A, 19 Pin Female Power Supply ..................5V DC Power Consumption ..............
  • Page 11: Warranty

    Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
  • Page 14 Rev A1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
