Gefen EXT-HDMI-CAT5-145 User Manual

1:5 splitter for hdmi over cat-5

Advertisement

Quick Links

1:5 Splitter For
Over CAT-5
EXT-HDMI-CAT5-145
User Manual
www.gefen.com
f

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXT-HDMI-CAT5-145 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gefen EXT-HDMI-CAT5-145

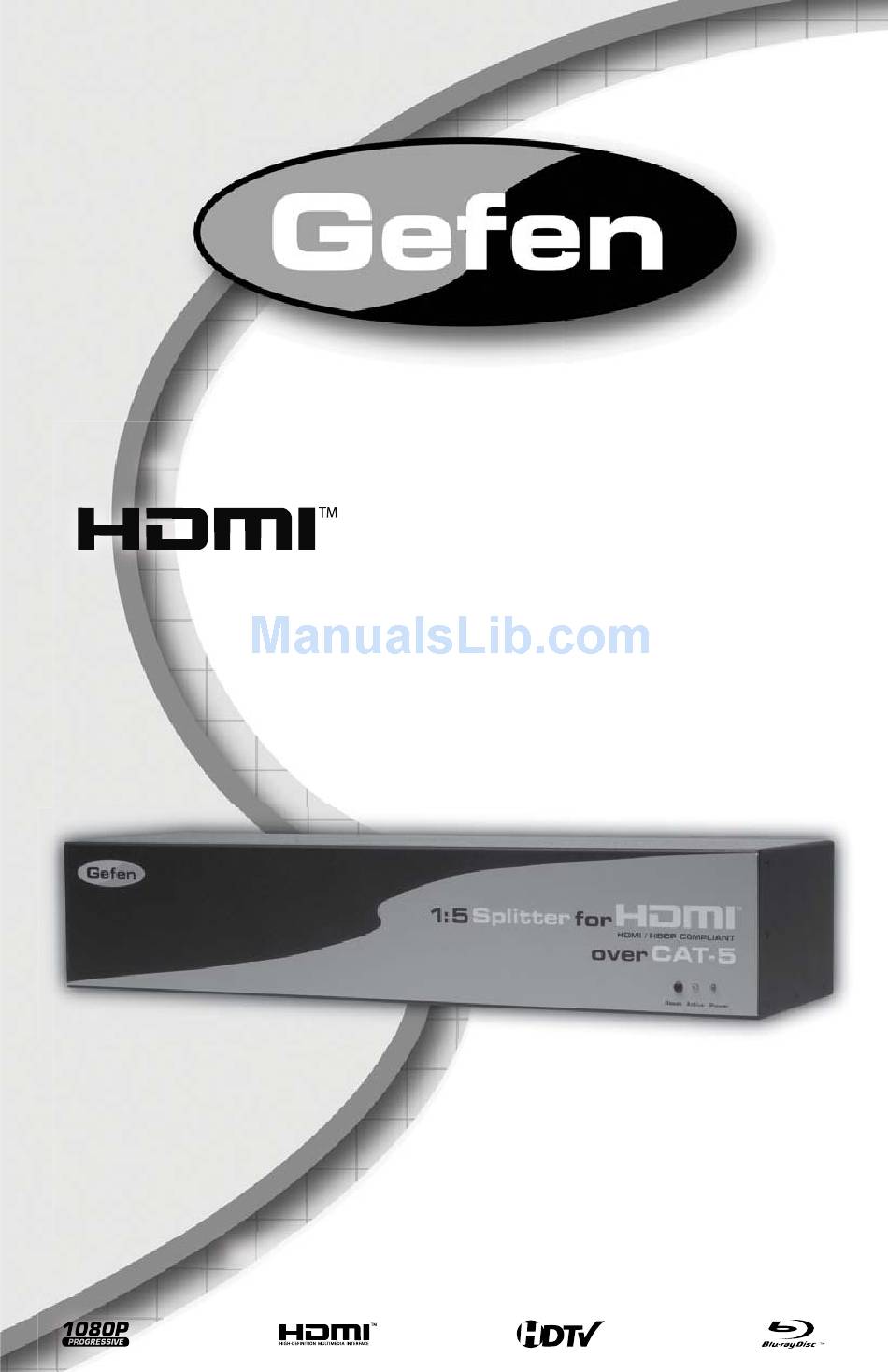

  • Page 1 1:5 Splitter For Over CAT-5 EXT-HDMI-CAT5-145 User Manual www.gefen.com...
  • Page 2: Asking For Assistance

    Chatsworth, CA 91311 www.gefen.com support@gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:5 Splitter For HDMI Over CAT-5 is a trademark of Gefen Inc.
  • Page 3: Table Of Contents

    Introduction Operation Notes Features Sender Panel Layout Sender Panel Descriptions Receiver Panel Layout Receiver Panel Descriptions Connecting And Operating The 1:5 Splitter For HDMI Over CAT-5 EDID Modes 10 Equalization & Boost Settings 11 Network Cable Wiring Diagram 12 Specifi cations 13 Warranty CONTENTS...
  • Page 4: Introduction

    CAT5 cables. How It Works Simply plug your video source into the Gefen 1:5 HDMI Over CAT5 D.A. Sender unit, then run an HDMI cable to your local HDTV displays. Then connect your CAT5 cables to 1:5 HDMI Over CAT5 D.A. Sender unit, and fi nally connect a pair of CAT5 cables to each of the 4 HDMI CAT5 D.A.
  • Page 5: Operation Notes

    READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:5 SPLITTER FOR HDMI OVER CAT-5 • 1:5 Splitter For HDMI Over CAT-5 will split the HDMI signal to 5 HDMI outputs. 4 of these outputs can be sent over CAT-5, CAT-5e or CAT-6 cables to remote locations while the last output can be used for local use.
  • Page 6: Features

    Features • HDMI Video Distribution to up to 5 local displays or 4 remote • 300 ft. at 1080i; 150-ft range for 1080p • Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved •...
  • Page 7: Sender Panel Layout

    SENDER PANEL LAYOUT Front Panel 1 2 3 Back Panel...
  • Page 8: Sender Panel Descriptions

    SENDER PANEL DESCRIPTIONS Reset Button Pressing this button will reset the unit and cause the source to re-detect the EDID. This is useful for when the EDID mode on the rear panel is changed. Active LED Indicator This LED will become active when a valid link between the 1:5 Splitter For HDMI Over CAT-5 sender and the source has been established.
  • Page 9: Receiver Panel Layout

    RECEIVER PANEL LAYOUT Front Panel Back Panel...
  • Page 10: Receiver Panel Descriptions

    RECEIVER PANEL DESCRIPTIONS Equalization Trim Pot This Trim Pot is used to equalize the incoming HDMI signal to account for variances in CAT cable skew. By default, the Auto EQ feature is enabled and this Trim Pot does not need to be adjusted. In the event that manual EQ mode is enabled, this Trim Pot will be used to equalize the signal.
  • Page 11: Connecting And Operating The 1:5 Splitter For Hdmi Over Cat-5

    CONNECTING AND OPERATING THE 1:5 SPLITTER FOR HDMI OVER CAT-5 How to Connect the 1:5 Splitter For HDMI Over CAT-5 Connect the HDMI source device to the 1:5 Splitter For HDMI Over CAT-5 sender unit using the supplied HDMI cable. Connect up to 4 of the HDMI outputs to the HDMI jumper inputs using the supplied short HDMI jumper cables.
  • Page 12: Edid Modes

    EDID (Extended Display Identifi cation Data) contains information on the resolution and general capabilities of a display device. This information is used by the source device to output a compatible signal that the display can accept. This information can even be used by some source devices to limit the output of resolutions and features that the display is not capable of accepting.
  • Page 13: Equalization & Boost Settings

    EQUALIZATION & BOOST SETTINGS Each 1:5 Splitter For HDMI Over CAT-5 receiver contains a Dip Switch bank located on the underside of the unit. This bank of 4 Dip Switches are covered with a piece of silver metallic tape. These Dip Switches will modify boost settings and change the equalization mode.
  • Page 14: Network Cable Wiring Diagram

    Gefen has specifi cally engineered their products to work with the TIA/EIA-568-B specifi cation. Please adhere to the table below when fi eld terminating cable for use with Gefen products. Failure to do so may produce unexpected results and reduced performance.
  • Page 15: Specifi Cations

    SPECIFICATIONS Video Amplifi er Bandwidth ... 165 MHz Input Video Signal ... 1.2 Volts p-p Input DDC Signal ... 5 Volts p-p (TTL) Single Link Range ... 1080p/1920 x 1200 HDMI Video Connector ... Type A, 19 Pin Female Link Connector ... RJ-45 Shielded Power Supply ...
  • Page 16 Rev X1 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
