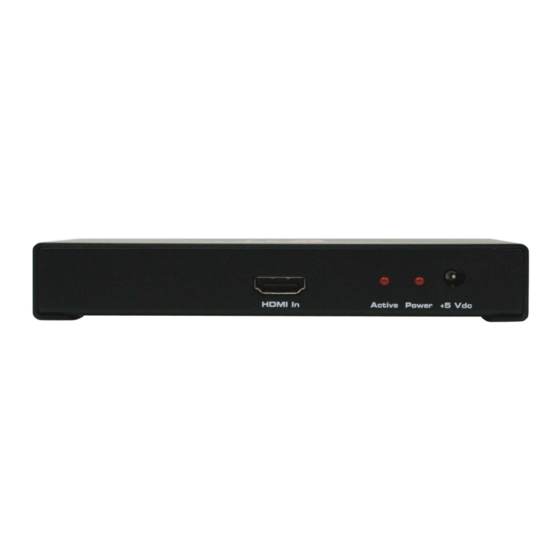

- Page 1 1x3 HDMI Splitter U S E R M A N U A L www.gefen.com...
- Page 2 Chatsworth, CA 91311 support@gefen.com www.gefen.com Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1x3 HDMI Splitter is a trademark of Gefen Inc. HDMI is a trademark of hdmi.org ©...
-
Page 3: Table Of Contents
Introduction Features Panel Descriptions Connecting and Operating the 1x3 HDMI Splitter Specifi cations Warranty TABLE OF CONTENTS... -
Page 4: Introduction
Our Commitment Gefen Inc. will always offer the fi nest quality product at the best possible price. Included in that price is a lifetime support from a team of outstanding engineers. The 1x3 HDMI Splitter allows one HDMI device to be distributed easily in to three HDMI compatible monitors or projectors. -
Page 5: Features
FEATURES Features • Easily distributes HDMI HDTV devices on up to four DVI/HDMI displays with zero signal loss • Allows simultaneous display • Maintains 480p, 720p, 1080i, and 1080p resolutions • Maintains highest HDMI single link video resolution for beautiful HDTV •... -
Page 6: Panel Descriptions
PANEL DESCRIPTIONS... -
Page 7: Connecting And Operating The 1X3 Hdmi Splitter
CONNECTING AND OPERATING THE 1x3 HDMI SPLITTER How to Connect the 1x3 HDMI Splitter to your devices 1 Connect the supplied cable from the HDTV HDMI sources into the 1x3 HDMI Splitter input. HDMI to HDMI cable for HDMI source or HDMI to DVI cable for DVI source. 2 Connect the cables from your displays (monitor or projector) into the HDMI outs of the 1x3 HDMI Splitter. -
Page 8: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ... 1.65 Gbps Input Video Signal ... 1.2 volts p-p Input DDC Signal ... 5 volts p-p (TTL) Single Link Range ...1080p / 1920 x 1200 Input Connector Type ... HDMI Type A 19 pin female Output Connector Type ...HDMI Type A 19 pin female Power Consumption ... -
Page 9: Warranty
If equipment fails because of such defects and Gefen Inc. is notifi ed within two (2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi...
