Summary of Contents for Gefen EXT-HDMI1.3-142D

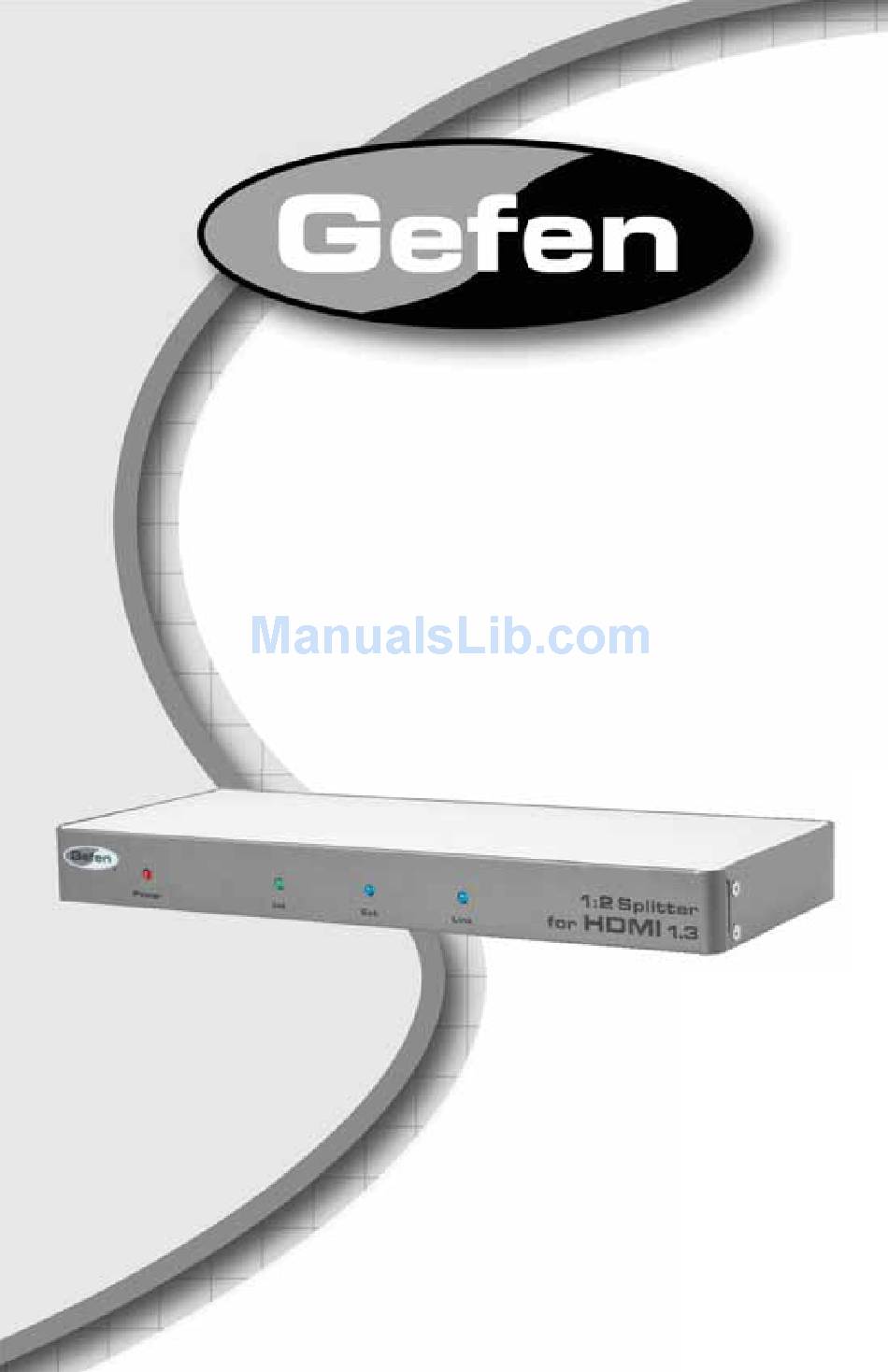

- Page 1 ® 1:2 Splitter for ® HDMI with Digital Audio EXT-HDMI1.3-142D User Manual www.gefen.com...
- Page 2 Notice Gefen, LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. 1:2 Splitter For HDMI 1.3 with Digital Audio is a trademark of Gefen, LLC HDMI, the logo, and High-Defi...
-
Page 3: Table Of Contents
CONTENTS Introduction Operation Notes Features Panel Descriptions Panel Descriptions Connecting and Operating The 1:2 Splitter For HDMI 1.3 with Digital Audio EDID Management Specifi cations 10 Warranty... -
Page 4: Introduction
How It Works An HDMI source connects to the HDMI input connector on the Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio. Two HDMI outputs from the 1:2 Splitter connect to two HDMI-compliant Displays. Vibrant, sharp HDMI video with embedded multichannel digital audio will now be observed on the HDMI Displays. -
Page 5: Operation Notes
OPERATION NOTES READ THESE NOTES BEFORE INSTALLING OR OPERATING THE 1:2 SPLITTER FOR HDMI 1.3 WITH DIGITAL AUDIO • By default, display information from the display connected to HDMI output port 1 is sent back to the source. Therefore, the other display connected to the 1:2 Splitter for HDMI 1.3 with Digital Audio must be capable of accepting the timings, resolutions and audio formats of the display that is connected to HDMI output port 1. -
Page 6: Features
Supports the use of DVI sources and DVI displays with an HDMI-to-DVI converter cable or adapter • HDMI and HDCP compliant Package Includes (1) Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio (1) 6 ft HDMI cable (M-M) (1) 5V DC Power Supply (1) User Manual... - Page 7 PANEL LAYOUT Front Panel Back Panel...
-
Page 8: Panel Descriptions

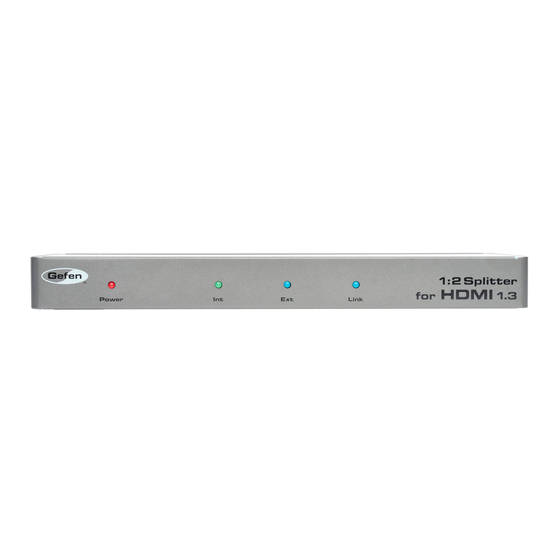

PANEL DESCRIPTIONS Power LED This LED will activate once a valid power source is applied. Internal EDID LED This LED will activate only when the pre-programmed internal EDID is being used. Please see page 7 for more details on the internal EDID. External EDID LED (default EDID routing) This LED will activate only when the external EDID is being used. -
Page 9: Connecting And Operating The 1:2 Splitter For Hdmi 1.3 With Digital Audio
Apply power to the sources and displays. The source signal will now be seen on two (2) displays at the same time. Wiring Diagram for the Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio DIGITAL AUDIO (TOSLINK) CABLE HDMI CABLE... -
Page 10: Edid Management
To use this mode, press the EDID button on the rear panel until the front- panel LED marked “Int” turns bright green. This mode will use a preset EDID, from the factory, that is stored in the Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio. This pre-programmed standard EDID data structure is compatible with most A/V display devices. - Page 11 EDID MANAGEMENT External EDID Management The 1:2 Splitter for HDMI 1.3 with Digital Audio features EDID Management. Before the source can send video or audio signals, the source device reads the EDID (Extended Display Identifi cation Data) from the output devices connected to the Splitter.
-
Page 12: Specifi Cations
SPECIFICATIONS Video Amplifi er Bandwidth ............... 225 MHz Input Video Signal ..............1.2 Volts p-p Input DDC Signal ..............5 Volts p-p (TTL) Single Link Range ............1080p/1920 x 1200 HDMI Connector ............Type A, 19 Pin Female Power Supply ..................5V DC Power Consumption .............. - Page 15 Rev B2 2.1M 20600 Nordhoff St., Chatsworth CA 91311 1-800-545-6900 818-772-9100 fax: 818-772-9120 www.gefen.com support@gefen.com...
