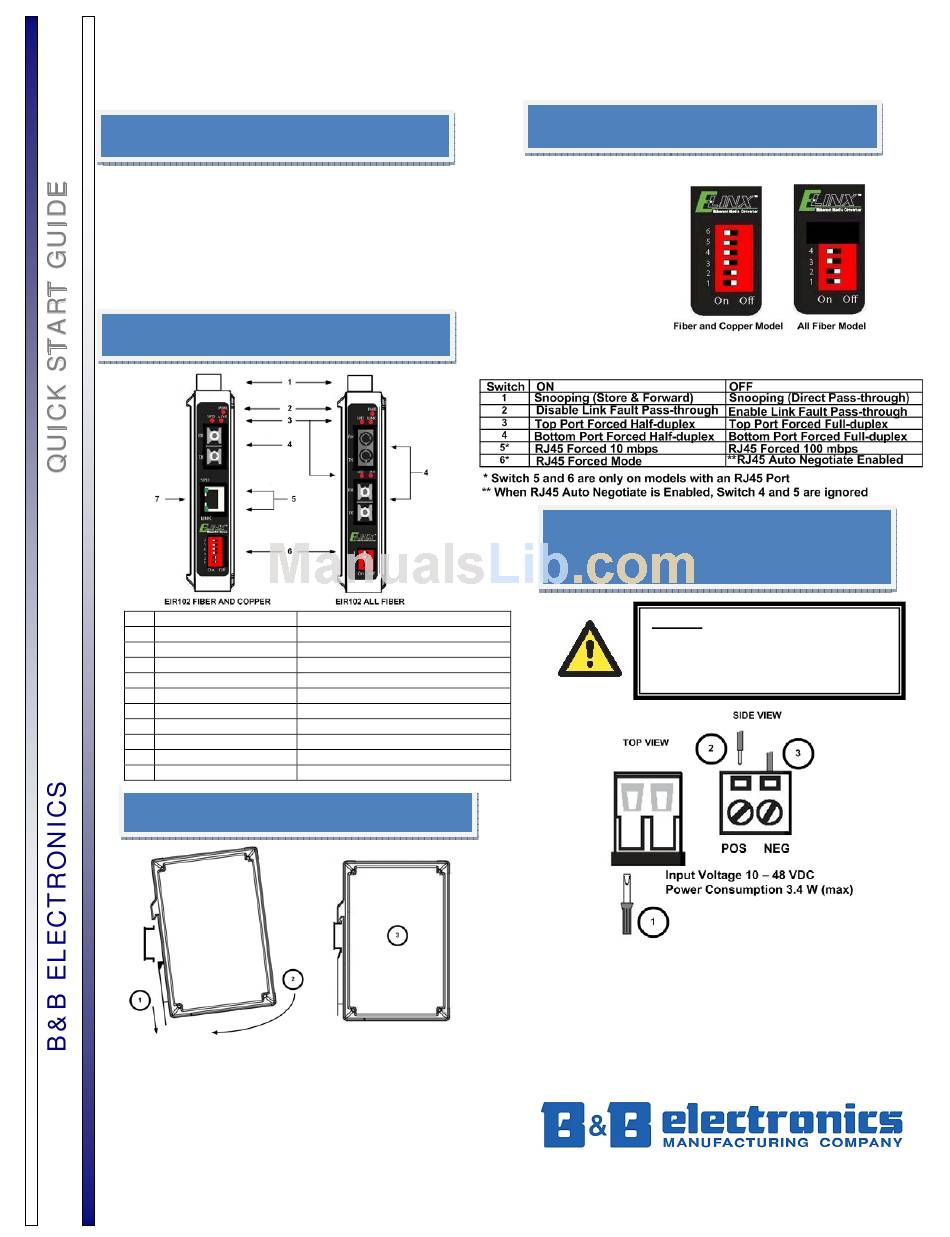

B&B Electronics Industrial Media Converter EIR102 Quick Start Manual

EIR102 Series Quick Start
Guide

Package Contents

• EIR102 Series Industrial Media Converter
• Quick Start Guide (One per shipment)
• Power Terminal Block (installed)
• Fiber Optic Dust Covers (installed on fiber optic models)
If any item is missing or damaged, contact B&B Electronics
for a replacement

Front Panel

Power Terminal Block
1
PWR LED
2
Fiber Optic SPD LED
3
Fiber Optic LINK LED
3
Fiber Optic Ports
4
RJ45 SPD LED
5
RJ45 LINK LED
5
DIP Switch
6
RJ45 Port
7

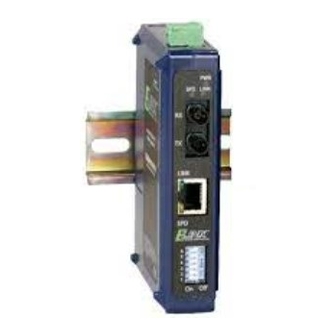

DIN Rail Mounting
1. Slide and hold the DIN Clip toward the bottom of the
Media Converter. Angle the top portion of the DIN mount
over the top of the DIN rail.
2. Move the Media Converter so that it is parallel with the
DIN Rail.
3. Release the DIN clip. The spring should return it to its
original position.
+353 91 792444 Fax +353 91 792445 www.bb-europe.com orders@bb-europe.com support@bb-europe.com
2 Position, Removable
ON When Power Applied
Normally OFF
On When Fiber Port Linked
No. & Type Depends on Model
ON if 100 mbps
ON When RJ45 Port Linked
FLASHES When Data Transmitted
4 POS for Fiber to Fiber
6 POS for Copper to Fiber
Depends on Model
International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax 433-5104 www.bb-elec.com orders@bb-elec.com support@bb-elec.com
European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland
Configure DIP Switch
1. Fiber to Copper
models have a 6
position switch.
2. Fiber to Fiber models
have a 4 position
switch.
3. Switches are
numbered from the
bottom.
4. Cycle power after
changing DIP Switch
configuration.
Attach Power Leads
External Supply Required
Warning: Work Safe – Equipment
damage or electrical shock hazard
exists. DO NOT ATTACH OR REMOVE
LEADS WITH THE POWER SUPPLY
ENERGIZED!
1. Loosen the screw to open the terminal block lead clamp.
2. Insert the power lead. TB will accept 12-28 AWG wire.
3. Tighten the screw to close the terminal block lead clamp.
Ensure the clamp holds the lead securely. However, do not
over tighten.
NOTE: For replacement Terminal Block order Part # 7444.
EIR102 1308qsg-1/2
© 2008 by B&B Electronics. All rights reserved.
