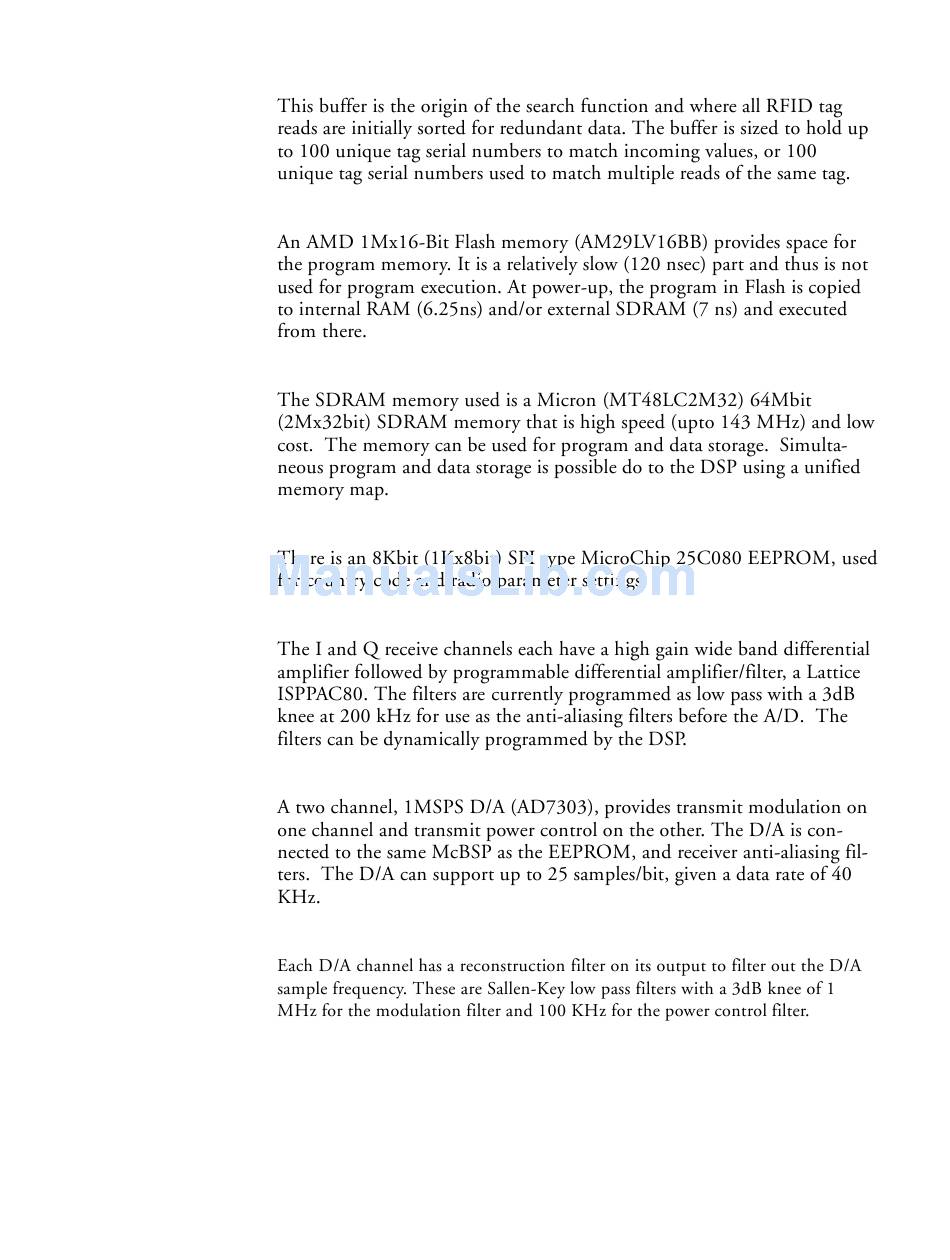

Chapter
2
Theory of Operation
—
14
Memory
Flash
SDRAM
SPI Serial Interface
LATTICE ANTI-ALIASING FILTERS AND AMPLIFIERS
D/A CONVERTER
RECONSTRUCTION FILTERS
869 RFID Reader Service Instruction Manual
