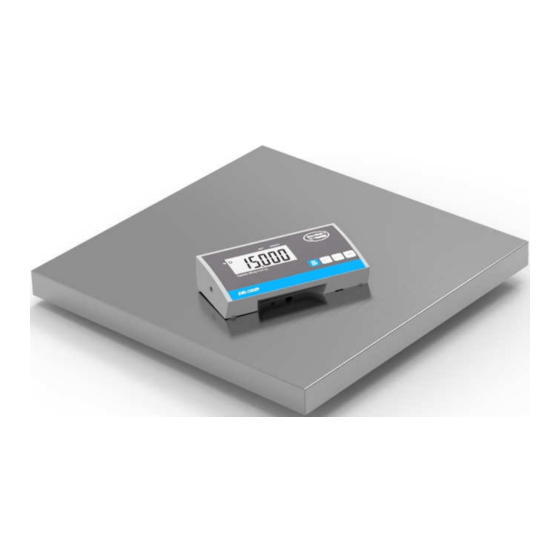

Digital portion scale
Hide thumbs Also See for AW-300P:

Advertisement

Quick Links

TABLE OF CONTENTS

TABLE OF CONTENTS ................................................................... 1
INTRODUCTION.............................................................................. 2
SAFETY INSTRUCTION .................................................................. 2
CLEANING....................................................................................... 3
MAINTENANCE ............................................................................... 3
DISPOSING OF THE SCALE........................................................... 3
Explanation of the graphic symbols.................................................. 4
TO Ready Scale for Use .................................................................. 5
POWER SUPPLY & LOW BATTERY ............................................... 5
SPECIFICATIONS............................................................................ 6
KET FUNCTIONS ............................................................................ 7
USING SCALE ................................................................................. 8
USING TARE FUNCTION ................................................................ 8
USING HOLD FUNCTION ............................................................... 9
AW-300P : SET-UP ........................................................................ 11
INSTRUCTION FOR CHARGE AND CONNECT ........................... 12
Parameters of RS232 interface ...................................................... 14
ERROR MESSAGE........................................................................ 18
Digital Portion Scale
ROHS COMPLIANCE .................................................................... 19
AW-300P
USER MANUAL
PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE
STARTING TO USE THE SCALES
0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW-300P and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamato AW-300P

  • Page 1: Table Of Contents

    KET FUNCTIONS ................7 USING SCALE ................. 8 USING TARE FUNCTION ..............8 USING HOLD FUNCTION ............... 9 AW-300P : SET-UP ................ 11 INSTRUCTION FOR CHARGE AND CONNECT ......12 Parameters of RS232 interface ............14 ERROR MESSAGE................ 18 Digital Portion Scale ROHS COMPLIANCE ..............
  • Page 2: Introduction

    INTRODUCTION CLEANING We would recommend using alcohol based wipes or similar Thank you for purchasing a Yamato Portion Scale. Please read this when cleaning the scales. instruction manual carefully before use. Keep these instructions Please do not use large amounts of water when cleaning the handy for future reference.
  • Page 3: Explanation Of The Graphic Symbols

    ” is displayed, please change batteries. Please your household wastrel! refer to “INSTALLING THE BATTERY”. Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Yamato scales.
  • Page 4: Specifications

    SPECIFICATIONS KET FUNCTIONS Description Model AW-300P Turn ON/OFF the scale Capacity 300 kg x 0.1 kg / 660 lb x 0.2 lb To hold weighing result on the display / determine Weight Unit kg / lb stable weighing value LCD Readout 1.0” LCD display with 5 1/2 digits To select the weighing unit.
  • Page 5: Using Scale

    USING SCALE USING HOLD FUNCTION WEIGHING AW-300P is provided with the integrated hold function (determination of average value). It enables animal to be weighed accurately Switch on the scale using key. The diagnostic scale although they are not still on the scale plate. Once the HOLD key is self-check is performed and the software version is displayed.
  • Page 6: Aw-300P : Set-Up

    AW-300P : SET-UP Switch ON the scale and long press [UNIT] key for 3 seconds. First “SETUP” and then “A.OFF” will display successively. AUTO-OFF TIME SETUP This enables operator to select the auto turn OFF time of the device. BUZZER ON/OFF SETUP This enables operator to select beep sound ON/OFF.
  • Page 7: Instruction For Charge And Connect

    INSTRUCTION FOR CHARGE AND CONNECT INSTRUCTIONS FOR REPLACING BATTERIES prompt displays on the LCD, please charge the scale with AW-300P exclusive adaptor or replace the batteries. Locate adaptor plug-in at the back side of indicator. CAUTION: Always connect the AC adaptor with the indicator before connecting to the mains power supply.
  • Page 8: Parameters Of Rs232 Interface

    Parameters of RS232 interface Connecting with PC Set parameters of the scale interface on the connected device. It is 1. Start Hyper Terminal not possible to change the scale parameters. Start Hyper Terminal program from clicking Baud rate: 9600 bps Parity check: None Start Menu →...
  • Page 10: Error Message

    PBDE (Polybrominated Diphenyl Ethers) 0.1% Hexavalant Chromium 0.1% Cadmium 0.01% YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S, Murray Bivd. #112-194525 Langley By-Pass Colorado Springs, Co 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel(604) 533-2338 Fax(604) 533-0827...
