Summary of Contents for Iluminarc Colorist Panel 8Qa
- Page 1 User Manual...
- Page 2 ILUMINARC® reserves the right to revise this document and to make changes from time to time in the content without obligation of ILUMINARC® to notify any person or company of such revision or changes. ILUMINARC® may issue a revision of this manual or a new edition of it to incorporate such changes.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Introduction .......................... 1 What Is In The Box ..........................1 Unpacking Instructions ..........................1 Claims ................................1 Text Conventions ............................. 1 Safety Notes ............................2 Personal Safety ..............................2 Mounting and Installation ..........................2 Power and Wiring .............................2 Operation .................................2 2. - Page 4 Table of Contents 5. Technical Information ......................14 Product Maintenance ..........................14 Product Repairs ............................. 14 Photometrics ............................15 LED Disclaimer ............................16 LED Life ................................. 16 LED Binning ..............................16 Color Rendering Index (CRI) .......................... 16 Return Procedure ..........................17 Contact Us ..........................
-
Page 5: Introduction
The carrier is responsible for any damage incurred during shipping. Therefore, if the received merchandise appears to have been damaged during shipping, the customer must submit the damage report and any related claims to the carrier, not ILUMINARC®. The customer must Useful information. -
Page 6: Safety Notes
· When hanging this product, always secure it to a fastening device using a safety cable (not provided). Power and Wiring Please consult with an Iluminarc · To eliminate unnecessary wear and improve its lifespan, during periods of non-use Sales Representative on the completely disconnect the product from power via breaker or by unplugging it. -
Page 7: Product Description

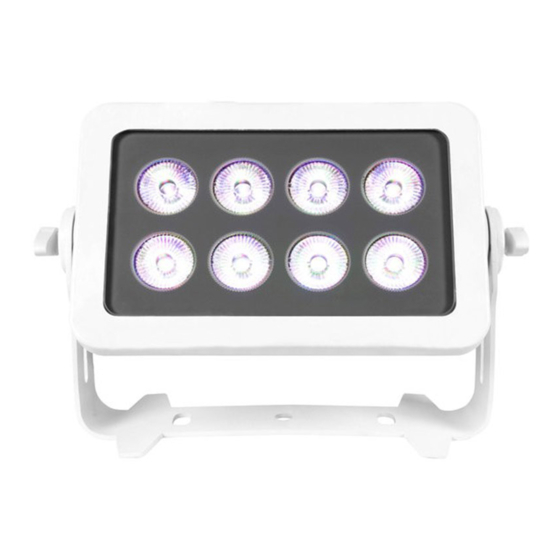

Product Description 2. Product Description The Colorist™ Panel 8Qa is an IP65-rated wash product that may be used to light a variety of both indoor and outdoor applications. The Colorist™ Panel 8Qa consists of 8 quad-color RGBA 15 watt LEDs which can be controlled via the control panel or DMX control connections located on the back of the aluminum housing. -
Page 8: Product Overview
Product Description Product Overview Side View Mounting Bracket Front View RGBA Quad-color Power Out Power In Rear View DMX Out DMX In Control Panel Colorist™ Panel 8Qa User Manual Rev. 2... -
Page 9: Product Dimensions
Product Description Product Dimensions 4.5 in 114 mm 9.3 in 235 mm 12.7 in 322 mm 10.6 in 269 mm 7 in 177 mm 4.5 in 3.2 in 114 mm 81 mm Colorist™ Panel 8Qa User Manual Rev. 2... -
Page 10: Installation
Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. Installation Make sure to mount ILUMINARC® recommends following the general guidelines below when mounting the this product away Colorist™ Panel 8Qa. from any flammable ·... -
Page 11: Ac Power
Installation Always connect the Colorist™ AC Power Panel 8Qa to a protected circuit with an The Colorist™ Panel 8Qa has an auto-ranging power supply that works with an input voltage appropriate electrical range of 100–240 VAC, 50/60 Hz. ground to avoid the risk of electrocution or fire. -
Page 12: Dmx Linking
Colorist™ Panel 8Qa to a DMX controller, you may should be connected on download “DMX Primer” from ILUMINARC® website one daisy chain without http://www.iluminarc.com/reports/dmx-primer. using a DMX optically isolated splitter. Doing otherwise may result in... -
Page 13: Dmx Controller
Installation DMX Controller If you have not The Colorist™ Panel 8Qa can work with a standard DMX controller. The channel assignments configured the will depend on the chosen DMX personality (see the corresponding Menu Map section) and DMX starting address and the DMX address assigned to each product (see the Programming section). -
Page 14: Operation
Operation 4. Operation Control Panel Description Button Function <MODE> Exits from the current menu or function Enables the currently displayed menu or sets the currently selected <ENTER> value in to the current function Navigates upwards through the menu list and increases the numeric <UP>... -
Page 15: Temperature
Operation Temperature The Passcode is a default setting This menu option allows you to see the temperature of the product while it is operating. and not customizable. 1. Go to teMP. 2. The products temperature is displayed XX (°C). Passcode DIM1 is the fastest dimming When PASS is active, the product will ask you to enter the passcode (<UP>, <DOWN>,... -
Page 16: Menu Map
Operation Menu Map Main Level Programming Levels Description 4-CH Selects DMX personality and sets the DMX starting 6-CH 1–512 address 10CH R (red) G (green) B (blue) A (amber) C--- C 10 C 11 C 12 C 13 C 14 C 15 RGBA 1–5... -
Page 17: Dmx Values
Operation DMX Values Channel Function Value Percent/Setting 10CH 000 ó 255 0–100% Dimmer 000 ó 255 0–100% 000 ó 255 Green 0–100% 000 ó 255 Blue 0–100% 000 ó 255 Amber 0–100% 000 ó 010 No function Strobe 011 ó 255 Slow to fast 000 ó... -
Page 18: Technical Information
7. Gently polish the external glass surfaces until they are free of haze and lint. Product Repairs ILUMINARC® strongly advises you against attempting any repairs to this product unless you are an authorized ILUMINARC® technician. Colorist™ Panel 8Qa User Manual Rev. 2... -
Page 19: Photometrics
Technical Information Photometrics Colorist™ Panel 8Qa User Manual Rev. 2... -
Page 20: Led Disclaimer
LED Disclaimer LED Life ILUMINARC® rates LED lifetime based on lumen depreciation of 70% of the original output, with data provided by the manufacturer of the LED. Data from the manufacturer of the LED are not independently verified or measured by ILUMINARC®. When the product is operating in optimal environmental conditions, the LED lifetime is rated to be 50,000 to 70,000 hours by the LED manufacturer. -
Page 21: Return Procedure
The user must clearly label the package with an RMA #. ILUMINARC® will refuse any product(s). product returned without an RMA #. DO NOT write the RMA # directly on the box. -
Page 22: Technical Specifications
Technical Specifications 6. Technical Specifications Length Width Height Weight Dimensions and Weight 4.5 in (114 mm) 12.7 in (322 mm) 9.3 in (235 mm) 11.6 lb (5.3 kg) Note: Dimensions and Weight are rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Electrical... - Page 23 User Manual...
