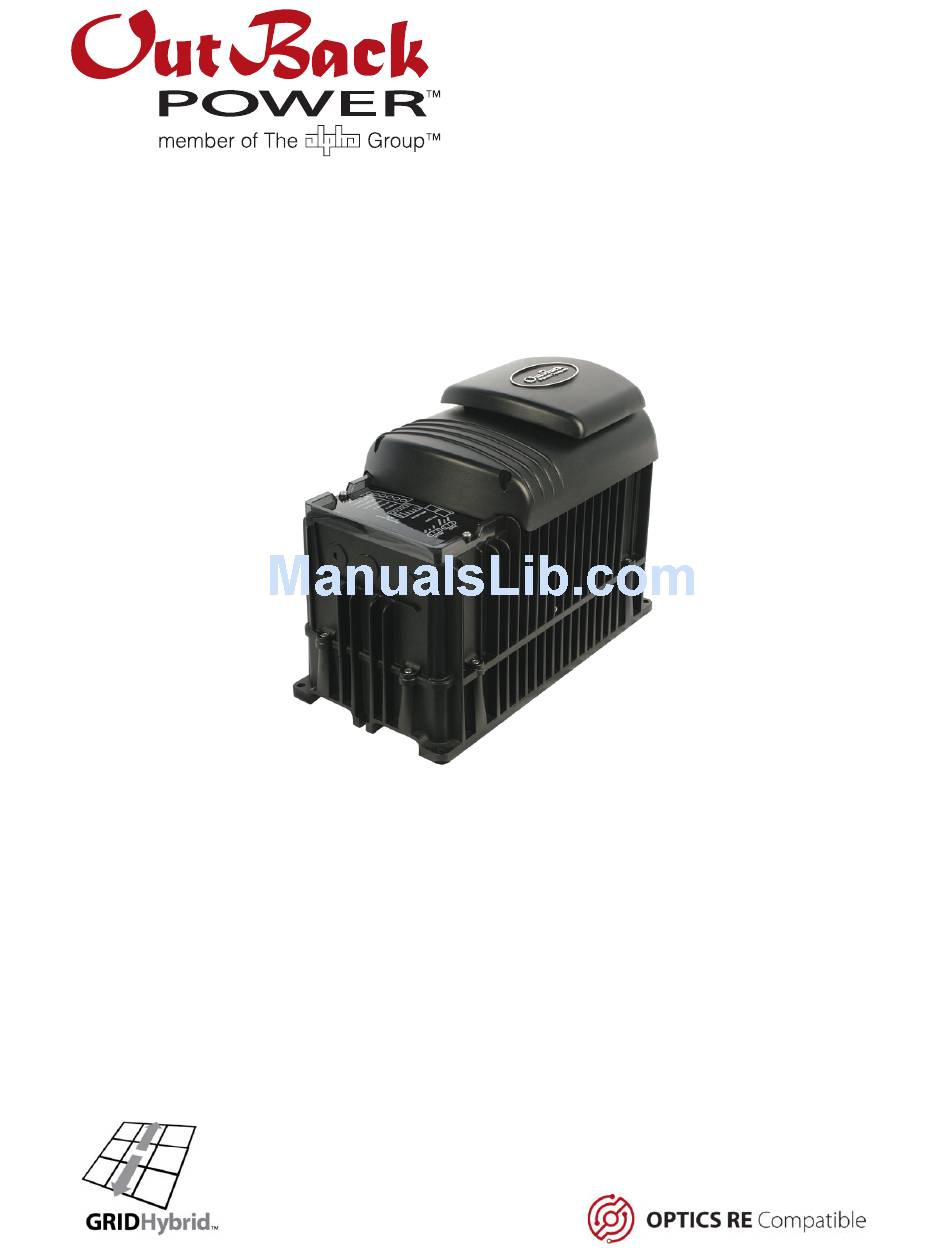

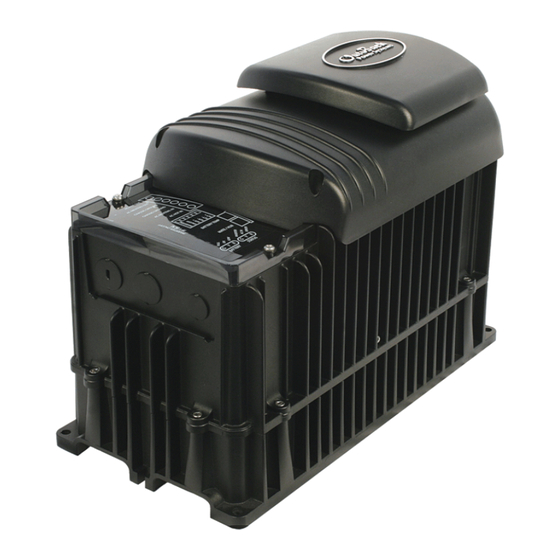

  • Page 1 FXR Series Inverter/Charger FXR2012A FXR2524A FXR3048A VFXR2812A VFXR3524A VFXR3648A Operator’s Manual...
  • Page 2: Contact Information

    Grid/Hybrid™ As a leader in off-grid energy systems designed around energy storage, OutBack Power is an innovator in Grid/Hybrid system technology, providing the best of both worlds: grid-tied system savings during normal or daylight operation, and off-grid independence during peak energy times or in the event of a power outage or an emergency.
  • Page 3: Table Of Contents

    Table of Contents Introduction ......................7   Audience ....................................7  Symbols Used ..................................7  General Safety ..................................7  Welcome to OutBack Power Technologies ......................... 8  Inverter Functions ................................8  Inverter Controls ................................... 9    MATE3 System Display and Controller ............................. 9  ...
  • Page 4 Table of Contents   Equalization .......................................... 40   Battery Temperature Compensation ................................41   Offset ........................................42   Multiple-Inverter Installations (Stacking) ..........................43   Stacking Configurations ................................44   Series Stacking (Dual-Stack) ................................... 44   Parallel Stacking (Dual-Stack and Larger) ..............................44  ...
  • Page 5 Table of Contents List of Tables Table 1  Battery Indicator Values ..........................15  Table 2  Summary of Input Modes .......................... 25  Table 3  Charge Currents for FXR Models ......................33  Table 4  Offset Interaction with AC Source ......................42  Table 5  Aux Mode Functions ............................
  • Page 6 Figure 9  Repeated Charging (3 and 4 Cycles) ....................39  Figure 10  OutBack HUB10.3 and MATE3 ........................43  Figure 11  Example of Series Stacking Arrangement .................... 44  Figure 12  Example of Parallel Stacking Arrangement (Three Inverters) ............45  Figure 13 ...
  • Page 7: Introduction

    If this product is used in a manner not specified by FXR product literature, the product’s internal safety protection may be impaired. CAUTION: Equipment Damage Only use components or accessories recommended or sold by OutBack Power Technologies or its authorized agents. 900-0167-01-00 Rev A...
  • Page 8: Welcome To Outback Power Technologies

    Introduction Welcome to OutBack Power Technologies Thank you for purchasing the OutBack FXR Series Inverter/Charger. It is designed to offer a complete power conversion system between batteries and AC power. As part of an OutBack Grid/Hybrid™ system, it can provide off-grid power, grid backup power, or grid-interactive service which sells excess renewable energy back to the utility.
  • Page 9: Inverter Controls

    The FXR inverter has no external controls. It can operate normally without an external control or interface. Basic modes and settings are pre-programmed at the factory. (See the menu tables beginning on page 76.) However, external communication devices such as the OutBack MATE3 or AXS Port can be used to operate or program the inverter.
  • Page 10: On/Off Switch

     The FXR inverter is only compatible with the MATE3 System Display and Controller. It is not intended for use with the OutBack MATE or MATE2 products.  The FXR inverter can use the OPTICS RE online tool as a system display.
  • Page 11: Commissioning

    Commissioning Functional Test WARNING: Shock Hazard and Equipment Damage The inverter’s AC and DC covers must be removed to perform these tests. The components are close together and carry hazardous voltages. Use appropriate care to avoid the risk of electric shock or equipment damage.
  • Page 12: Figure 3 Ac Terminals

    Commissioning Figure 3 AC Terminals 2. If a system display is present, perform all programming for all functions. These functions may include AC input modes, AC output voltage, input current limits, battery charging, generator starting, and others. AC input modes are described beginning on page 17 and are summarized on page 25. The inverter’s individual operations are described beginning on page 27.
  • Page 13: Powering Down

    Commissioning 3. Using the system display, temporarily bring each slave out of Silent mode by raising the Power Save Level of the master. (See page 47.)  As each slave is activated, it will click and create an audible hum. ...
  • Page 14: Firmware Updates

    Inverters automatically update one at a time beginning with the highest port. Each requires about 5 minutes. Updates to the inverter’s internal programming are periodically available at the OutBack website www.outbackpower.com. If multiple inverters are used in a system, all units must be upgraded at the same time.
  • Page 15: Operation

    If they have any loads, a charging source, or are at another temperature, their voltage may not reflect their true state. The OutBack FLEXnet DC is a battery monitor that can be added to the system to provide accurate measurements.
  • Page 16: Status Indicators

    Operation Status Indicators STATUS INVERTER (Green): Solid: The FXR inverter is on and providing power.  If accompanied by a solid yellow AC IN indicator (2), the inverter is also connected to the utility grid with an AC input mode that uses both inverter power and grid power (Support, Grid Tied, or GridZero).
  • Page 17: Inverter Functionality

    Operation Inverter Functionality The FXR inverter can be used for many applications. Some of the inverter’s operations occur automatically. Others are conditional or must be enabled manually before they will operate. Most of the inverter’s individual operations and functions can be programmed using the system display.
  • Page 18: Generator

    Operation When multiple inverters are stacked together in parallel, the master inverter’s input mode is imposed on all slaves. (See the stacking section on page 43.) The slave settings are not changed; they retain any mode that was previously programmed. However, the slave will ignore its programmed mode and use that of the master.
  • Page 19: Grid Tied

    Operation NOTES : IMPORTANT: The inverter will draw energy from the batteries when the loads exceed the appropriate AC Limit. With sustained loads and no other DC source, the batteries may discharge to the Low Battery Cut-Out point. The inverter will shut down with a Low Battery error.
  • Page 20: Grid Interface Protection Menu

    Operation NOTES :  The inverter has a delay before selling will begin. This function, the Re-Connect Delay Timer, has a default setting of five minutes. During this time, the inverter will not connect to the utility grid. The timer is adjustable in the Grid Interface Protection menu (see below).
  • Page 21: Frequency And Phase Coordination

    Operation The utility may simply name a standard to be followed, as with UL1741 for the United States. It may be necessary to look up the requirements for a local standard and program them accordingly. STAGE 1 Voltage (basic settings) Frequency Trip ...
  • Page 22: Backup

    Operation Failure Backup The Backup mode is intended for systems that have utility grid available as the primary AC source. This source will pass through the FXR inverter’s transfer circuit and will power the loads unless utility power is lost. If utility grid power is lost, then the inverter will supply energy to the loads from the battery bank.
  • Page 23: Gridzero

    Operation  Mini Grid mode is also incompatible with the Grid Use Time and Load Grid Transfer functions of the MATE3 system display. These functions do not have similar priorities to Mini Grid or HBX, but they do control the inverter’s connection and disconnection with the grid.
  • Page 24 Operation NOTES IMPORTANT: Setting DoD Volts too low will severely discharge the batteries. The battery bank may not have sufficient reserve to provide backup in the event of a grid failure. To prevent the loss of power, load use and the DoD Volts setting should be planned accordingly. ...
  • Page 25: Table 2 Summary Of Input Modes

    Operation Table 2 Summary of Input Modes Mode Summary Benefits Cautions Intended Charger   Generator Accepts power Can use AC that may be Will pass irregular or Performs three-stage Source: from an unusable in other low-quality power to charge and goes Generator irregular or modes...
  • Page 26 Operation NOTES: 900-0167-01-00 Rev A...
  • Page 27: Description Of Inverter Operations

    Operation Description of Inverter Operations The items in this section are operations common to all FXR inverters. These are used in most or all of the input modes described in the preceding section. Some of the items in this section are functions which can be manually selected, enabled, or customized.
  • Page 28: Ac Frequency

    Operation  Output Voltage: The AC output voltage can be adjusted. Along with small changes, this allows the inverter to be used for different nominal voltages such as 100 Vac and 127 Vac. IMPORTANT: The output voltage can be adjusted to a different nominal value for a particular region. Making this change will not affect the default input voltage range accepted by the inverter from an AC source.
  • Page 29: Input

    Operation NOTE: Increment sizes are difficult to define due to varying load characteristics. However, the default setting, 30 increments, is approximately sufficient to detect the load of one compact fluorescent light (CFL). A load which draws this amount or greater will “wake up” the inverter. ...
  • Page 30: Ac Current Settings

    Operation allows certain models to sell power using the input connection. The Support mode can use battery power to assist a smaller AC source. When GridZero mode is selected, the battery charger cannot be used. See page 25 for descriptions of these and other input modes. AC Current Settings The AC current settings, Grid Input AC Limit and Gen Input AC Limit, control the amount of current that the inverter draws from the source.
  • Page 31 Operation  The voltage limits can be adjusted to allow (or exclude) a source with weak or irregular voltages. These items are adjustable in the appropriate menu of the MATE3 (Grid AC Input Mode and Limits or Gen AC Input Mode and Limits). The settings are titled Voltage Limit Lower and Upper. There can be side effects to changing the range of allowed voltages.
  • Page 32: Generator Input

    Operation Generator Input A generator should be sized to provide enough power for all inverters, both for loads and for battery charging. The generator’s voltage and frequency must match the inverter’s acceptance settings. It is usually recommended that the generator be sized at twice the wattage of the inverter system. Many generators may not be able to maintain AC voltage or frequency for long periods of time if they are loaded more than 80% of rated capacity.
  • Page 33: Battery Charging

    75 Adc. (75 ÷ 2.5 = 30 Aac) Bank consists of 12 x OutBack EnergyCell 200RE VRLA batteries in series/parallel for a 24-volt system. Recommended maximum charge current is 90 Adc. (90 ÷ 5 = 18 Aac) The maximum DC charge rate for FXR models is specified in Table 14 on page 67.
  • Page 34: Charge Cycle

    Operation Limiting Charge Current (Multiple Inverters) It is not advisable to set Charger AC Limit less than 12 Aac in a stacked system. The Power Save function requires the master to activates the slave chargers in sequence only when the charge current exceeds 11 Aac.
  • Page 35: Advanced Battery Charging (Abc)

    Operation Advanced Battery Charging (ABC) Advanced battery technologies such as lithium-ion and sodium-sulfur may require very different settings from the inverter’s defaults or the three-stage cycle in general. The Charging Steps section describes the individual selections and behavior. All charger settings are adjustable for different priorities. For example, the Float voltage could be set higher than the Absorption voltage, or a step could be completely skipped.
  • Page 36: Float Stage

    Operation Time limit: Absorb Time setting. The charger does not necessarily run through its full duration if it retained time from a previous charge cycle. The timer counts down from the inception of the Absorption stage until it reaches zero. The time remaining can be viewed in the system display. The Absorption timer does not reset to its maximum amount, or to zero, when AC power is disconnected or reconnected.
  • Page 37: New Charging Cycle

    Operation Time limit: Float Time setting. The charger will go Silent once the timer has expired (if another stage is not still in progress.) The Float timer is reset to its maximum amount whenever the batteries decrease to the Re-Float Voltage setting. NOTE : The Float timer begins running any time the battery voltage exceeds the Float Voltage set point.
  • Page 38 Operation Voltage Cycle 1 Cycle 2 AC Loss AC Loss Refloat Absorption Silent Refloat Float Float Silent Absorption Set Point Float Set Point Re-Float Set Point Absorption Float timer Float timer runs (part) Float timer runs timer runs resets Time Inverter now charging to a new set point Inverter completed charging;...
  • Page 39: Figure 9 Repeated Charging

    Operation Cycle 3 Cycle 4 Cycle 5 AC Loss AC Loss AC Loss Abs. Absorption Silent Bulk Absorption Silent Bulk Bulk Absorption Set Point Float Set Point Re-Bulk Set Point Absorption Absorption Absorption Absorption Absorption timer resets timer runs timer runs timer timer runs (part)
  • Page 40: Equalization

    Equalization is not normally performed on nickel-technology batteries or any sort of sealed battery. CAUTION: Battery Damage  Do not equalize OutBack EnergyCell batteries of any model.  Do not equalize any sealed battery types (VRLA, AGM, Gel, or other) unless approved by the manufacturer.
  • Page 41: Battery Temperature Compensation

    A 48 Vdc system with batteries at 40°C will compensate its charging to 1.8 Vdc lower than the set points. Slope Some batteries require different amounts of compensation. The OutBack FLEXmax Extreme charge controller has an adjustable rate of compensation (“slope”) and is not limited to 5 mV. The FLEXmax Extreme can be networked with the inverter with the HUB Communications Manager.
  • Page 42: Offset

    Operation Offset Offset is an automatic operation which occurs in certain conditions. It is not a programmable function. This operation uses excess battery energy to power the loads when an AC source is present. The system can take advantage of renewable energy sources, “offsetting” dependence on the AC source. The battery voltage increases as a renewable energy source charges the batteries.
  • Page 43: Multiple-Inverter Installations (Stacking)

    Each inverter is programmed to power an individual phase of the system and to operate at certain times. This order is assigned using a system display such as the OutBack MATE3. FXR stacking includes “series” (split-phase), “parallel” (single-phase), “series/parallel” (split-phase) and “three-phase” configurations.
  • Page 44: Stacking Configurations

    Operation Stacking Configurations Each inverter must be assigned a particular mode in the Stack Mode menu. In the figures for each configuration below, the mode names are shown next to each inverter. For example, Figure 11 shows Master for the first (L1) inverter in a series-stacked system. The designation for the L2 inverter is L2 Phase Master.
  • Page 45: Series/Parallel Stacking (Quad-Stack Or Larger)

    Operation LOAD PANEL Master Slave Slave 6.0 kVA 120 Vac 2.0 kVA 120 2.0 kVA 120 Vac 2.0 kVA 120 Vac Figure 12 Example of Parallel Stacking Arrangement (Three Inverters) Series/Parallel Stacking (Quad-Stack or Larger) In series/parallel stacking, inverters create separate 120 Vac output legs and 240 Vac collectively, as in series stacking.
  • Page 46: Three-Phase Stacking

    Operation Three-Phase Stacking In three-phase stacking, inverters create three separate 120 Vac output legs in a wye configuration.  The three legs operate independently of each other. The output of each inverter is 120° out of phase from the others. Any two outputs produce 208 Vac between them. The outputs can be used to power three-phase loads when all inverters work together.
  • Page 47: Power Save

    Operation Power Save Each FXR inverter consumes 34 watts of idle power while it remains on, even if it is not actively inverting or charging. The Power Save function allows the option to put part of a parallel system into a quiescent state known as Silent mode.
  • Page 48 For more information on charging with stacked inverters, see page 33. If other adjustments are required to the maximum charge rate, see page 73. Figure 17 shows a system of four FXR2012A inverters (the master and three slaves). These inverters in a parallel system with a common load bus.
  • Page 49: Figure 17 Power Save Priority (Parallel)

    16 Aac are distributed among the remaining three inverters. If the loads decreased to 12 Aac, a second slave would go silent. Figure 18 shows a system of six FXR2012A inverters. In this example the inverters have been stacked in a split-phase system. The master inverter is on the L1 output while a subphase master is on L2.
  • Page 50: Auxiliary Terminals

    Operation Auxiliary Terminals The FXR inverter has a 12V AUX output which can respond to different criteria and control many operations. These terminals provide a 12 Vdc output that can deliver up to 0.7 Adc. The AUX output has three states: continuous Off, continuous On, and Auto, which allows that output to be activated using the automatic auxiliary functions.
  • Page 51 Operation  Settable Gen Alert parameters include:  Low and high DC voltage  On and off delay Gen Alert control logic is located in the inverter. It has the advantage of functioning when the system display is removed. However, it may not completely charge the batteries and does not have all the advantages of the Advanced Generator Start (AGS) function that is found in the system display.
  • Page 52: Table 5 Aux Mode Functions

    Operation  When battery voltage rises above a settable high voltage level, the AUX output is activated after a settable delay. The AUX output controls a larger relay, which allows current to flow from the batteries to a dedicated AC load when energized. Diversion is usually used to regulate battery charging. The AC device is usually wired to the output or load panel and must be left on.
  • Page 53: System Display-Based Functions

    Operation System Display-Based Functions A system display such as the OutBack MATE3 can provide functions not available in the inverter. These functions are summarized here to provide a better idea of overall system capabilities. The system display must be present for these functions to operate. If a function is set up (or already in operation) but the system display is removed, the function will not operate.
  • Page 54: Grid Use Time

    Operation Grid Use Time The inverter system is capable of connecting to, or disconnecting from, the utility grid based on time of day. It can also be programmed to connect at different times on weekdays and on weekends. Load Grid Transfer The inverter system is capable of connecting to, or disconnecting from, the utility grid based on load size.
  • Page 55: Metering

    Metering MATE3 Screens The MATE3 system display can monitor the FXR inverter and other networked OutBack devices. From the Home screen, the <Inverter> “soft” key accesses the screens for monitoring the inverter. Inverter Soft Key Figure 19 Home Screen Inverter Screen The Inverter soft key opens a screen showing the inverter operating mode, battery voltage, and status of several AC operations.
  • Page 56: Battery Screen

    Metering  Load displays kilowatts and AC amperage consumed by devices on the inverter’s output. It can be the same Invert  displays the kilowatts and AC amperage brought into the inverter’s input for both charging and loads. This is usually a total of Charge Load ...
  • Page 57: Troubleshooting

    Use a DC voltmeter to check the voltage directly on the DC terminals. If not present, the problem is external. If present, the inverter could be damaged. Contact OutBack Technical Support. Inverter ON/OFF jumper See the Installation Manual for the location of the jumper. Confirm missing.
  • Page 58 Check the AC voltage on the inverter’s input terminals. (See page No AC input. 57.) If not present, the problem is external. If present, the inverter could be damaged. Contact OutBack Technical Support. AC source does not meet MATE3 system display only: Check the Last AC Disconnect screen (using the AC INPUT hot key and the Discon selection) for the requirements.
  • Page 59 Troubleshooting Table 7 Troubleshooting Symptom Possible Cause Possible Remedy Charge complete or nearly Check the DC voltage and charging stage using the MATE3, if complete. present. Confirm with DC voltmeter. MATE3’s DC meter reads Check the DC voltage on the inverter’s DC terminals. If different significantly higher than actual from the MATE3 reading, the inverter could be damaged.
  • Page 60 AC Relay Fault page 57.) If voltage appears there, the transfer relay may be error and shutdown. jammed. Contact OutBack Technical Support. False reading due to noise. Electrical noise can cause false readings on the metering circuits when no voltage is present. The readings are usually less than 30 Vac.
  • Page 61 If 12 Vdc is not provided by AUX present with the function On, the AUX circuit may be damaged. output. Contact OutBack Technical Support. Advanced Generator MATE3 system display is not AGS programming is located in the MATE3 and cannot function if Start (AGS) fails to present.
  • Page 62: Error Messages

    See page 64. temperature, or add external cooling. Comm Fault The inverter has suffered an internal Contact OutBack Technical Support. communication failure. Loose DC Neg Loose DC connection on internal power Tighten all DC connections between inverter and module.
  • Page 63: Warning Messages

    AC source is the wrong phase external. If AC voltage is present, the unit may be or no AC source is present. damaged. Contact OutBack Technical Support. See inside front cover of this manual. 900-0167-01-00 Rev A...
  • Page 64: Temperatures

    Turn the battery disconnect off, and then on, to operating properly. Lack of cooling may result determine if the fan self-tests. After this test, in derated inverter output wattage. contact OutBack Technical Support for the next step. (The next step will depend on the results of the test.) NOTE: The system can continue to operate if the inverter can be run at reasonable levels.
  • Page 65: Disconnect Messages

    Table 12 shows the primary seven reasons for disconnection. An eighth field may be visible, but it can feature several different messages which vary with conditions. A list of these messages and their definitions is featured on the OutBack website at www.outbackpower.com. Table 12...
  • Page 66: Sell Status

    Troubleshooting Sell Status Sell Status messages describe conditions relating to the inverter’s grid-interactive mode. This screen is viewed using the MATE3 Home screen’s soft keys. (See the MATE3 manual for more instructions.) One or more messages will display Y (yes). If a message says N (no), it is not the cause of the disconnection. If the inverter has stopped selling or charging unexpectedly, this screen may identify the reason.
  • Page 67: Specifications

    Electrical Specifications NOTE: Items qualified with “default” can be manually changed using the system display. Table 14 Electrical Specifications for 12-Volt FXR Models Specification FXR2012A VFXR2812A Continuous Output Power at 25°C 2000 VA 2800 VA Continuous AC Output Current at 25°C 16.7 Aac...
  • Page 68: Table 15 Electrical Specifications For 24-Volt Fxr Models

    Specifications Table 15 Electrical Specifications for 24-Volt FXR Models Specification FXR2524A VFXR3524A Continuous Output Power at 25°C 2500 VA 3500 VA Continuous AC Output Current at 25°C 20.8 Aac 29.2 Aac AC Output Voltage (default) 120 Vac 120 Vac AC Output Frequency (default) 60 Hz 60 Hz AC Output Type...
  • Page 69: Table 16 Electrical Specifications For 48-Volt Fxr Models

    Specifications Table 16 Electrical Specifications for 48-Volt FXR Models Specification FXR3048A VFXR3648A Continuous Output Power at 25°C 3000 VA 3600 VA Continuous AC Output Current at 25°C 25 Aac 30 Aac AC Output Voltage (default) 120 Vac 120 Vac AC Output Frequency (default) 60 Hz 60 Hz AC Output Type...
  • Page 70: Mechanical Specifications

    Specifications Mechanical Specifications Table 17 Mechanical Specifications for FXR Models FXR2012A, FXR2524A, and VFXR2812A, VFXR3524A, and Specification FXR3048A VFXR3648A Inverter Dimensions (H x W x D) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm) Shipping Dimensions (H x W x L) 21.75 x 13 x 22”...
  • Page 71: Regulatory Specifications

    104°F 122°F VFXR3648A VFXR3524A VFXR2812A FXR3048A FXR2524A FXR2012A Figure 23 Temperature Derating Regulatory Specifications Listings This product carries a listing report by ETL. It is listed to the following standards:  UL 1741— Inverters, Converters, Controllers and Interconnection System Equipment for Use With Distributed Energy Resources (2nd Edition, 1/28/2010) ...
  • Page 72: Specification Compliance

    The OutBack grid-interactive models are tested using the procedures listed in IEEE 1547.1 to the standards listed in both UL 1741 and IEEE 1547. The following specifications have been validated through compliance testing and refer to exporting power to a simulated utility source of less than 1% voltage total harmonic distortion (THD).
  • Page 73: Summary Of Operating Limits

    Specifications Once this password has been changed, the Grid Interface Protection settings can be accessed by using the installer password. See the Grid Tied mode on page 19 for more information. Also see Default Settings and Ranges . Summary of Operating Limits Severe conditions cause the inverter to limit its output or shut down for protection.
  • Page 74: Table 21 Chargers On And Current Settings

    In a stacked system (using the HUB communications manager), chargers on higher-numbered HUB ports should be turned off first. Slave chargers should be turned off before turning off any subphase masters. (See page 43 for information on stacking.) Table 21 Chargers On and Current Settings FXR2012A VFXR2812A FXR2524A VFXR3524A FXR3048A...
  • Page 75: Firmware Revision

    This manual applies to inverter models with Revision 001.006.xxx or higher. Updates to the inverter’s firmware are periodically available. These can be downloaded from the OutBack website www.outbackpower.com. See page 14. Default Settings and Ranges NOTES: Certain items are retained at the present setting even when the inverter is reset to factory defaults.
  • Page 76: Table 23 Fxr Settings For 12-Volt Models

    60 Aac 5 Aac 60 Aac Grid Input AC Limit Current Limit Gen Input AC Limit 60 Aac 5 Aac 60 Aac FXR2012A 12 Aac 0 Aac 14 Aac Charger AC Limit VFXR2812A 16 Aac 0 Aac 18 Aac Input Mode...
  • Page 77 Specifications Table 23 FXR Settings for 12-Volt Models Field Item Default Minimum Maximum Aux Control Auto Off, Auto or On Load Shed, Gen Alert, Fault, Vent Fan, Cool Fan, Aux Mode Vent Fan DC Divert, GT Limits, Source Status, AC Divert (Load Shed) ON: Batt >...
  • Page 78: Table 24 Fxr Settings For 24-Volt Models

    Specifications Table 24 FXR Settings for 24-Volt Models Field Item Default Minimum Maximum INVERTER Hot Key On, Off, or Search Inverter Mode CHARGER Hot Key Charger Control On or Off AC Input Hot Key AC Input Mode Drop or Use Sensitivity (see page 28 for increments) Search 8 AC Cycles...
  • Page 79 Specifications Table 24 FXR Settings for 24-Volt Models Field Item Default Minimum Maximum Aux Control Auto Off, Auto or On Load Shed, Gen Alert, Fault, Vent Fan, Cool Fan, Aux Mode Vent Fan DC Divert, GT Limits, Source Status, AC Divert (Load Shed) ON: Batt >...
  • Page 80: Table 25 Fxr Settings For 48-Volt Models

    Specifications Table 25 FXR Settings for 48-Volt Models Field Item Default Minimum Maximum INVERTER Hot Key Inverter Mode On, Off, or Search CHARGER Hot Key Charger Control On or Off AC Input Hot Key AC Input Mode Drop or Use Sensitivity (see page 28 for increments) Search Pulse Length...
  • Page 81 Specifications Table 25 FXR Settings for 48-Volt Models Field Item Default Minimum Maximum Load Shed, Gen Alert, Fault, Vent Fan, Cool Fan, Aux Mode Vent Fan DC Divert, GT Limits, Source Status, AC Divert (Load Shed) ON: Batt > 56.0 Vdc 40.0 Vdc 72.0 Vdc (Load Shed ON) Delay...
  • Page 82: Definitions

    Specifications Definitions The following is a list of initials, terms, and definitions used in conjunction with this product. Table 26 Terms and Definitions Term Definition 12V AUX Auxiliary connection that supplies 12 Vdc to control external devices Alternating Current; refers to voltage produced by the inverter, utility grid, or generator Advanced Generator Start Canadian Standards Association;...
  • Page 83: Index

    Index Float Stage ..............36   New Bulk ................. 38 None ................. 35 12V AUX ................50 Refloat ................36 Silent ................36   Steps ................35, 37 Charging Current ..........34, 48, 73 Absorption Stage ............... 35 Commissioning ..............11 AC Input ..............
  • Page 84 Index Generator ................18 Frequency ..............21, 28 Sizing ................32 Voltage ................28 Generator Acceptance ............. 30 Grid Acceptance ..............30   Grid Interface Protection ....20, 31, 72, 77, 79, 81 Grid Tied ........... 19, 30, 64, 66, 72 Parallel Stacking ..............
  • Page 85 Index Terms and Definitions ............82   Test ..................11 Test Points ..............12, 57 UL1741 ..............9, 21, 71 Three-Phase Stacking ............46 Updating Firmware ............ 14, 75 Timers UPS ..................21 Absorption ..............35 Equalize ................40   Float ..................
  • Page 86 Index This page intentionally left blank. 900-0167-01-00 Rev A...
  • Page 87 Index This page intentionally left blank. 900-0167-01-00 Rev A...
  • Page 88 Masters of the Off-Grid.™ First Choice for the New Grid. Corporate Headquarters European Office Hansastrasse 8 17825 – 59 Avenue N.E. D-91126 Suite B Schwabach, Germany Arlington, WA 98223 USA +49.9122.79889.0 +1.360.435.6030 900-0167-01-00 Rev A...
