WIPER AND WASHER SYSTEM

13.Headlight Washer

A: REMOVAL
1) Disconnect the ground cable from the battery.
2) Remove the front grille. <Ref. to EI-18, REMOV-
AL, Front Grille.>
3) Remove the headlight. <Ref. to LI-13, REMOV-
AL, Headlight Assembly.>
4) Draw out headlight washer hose.

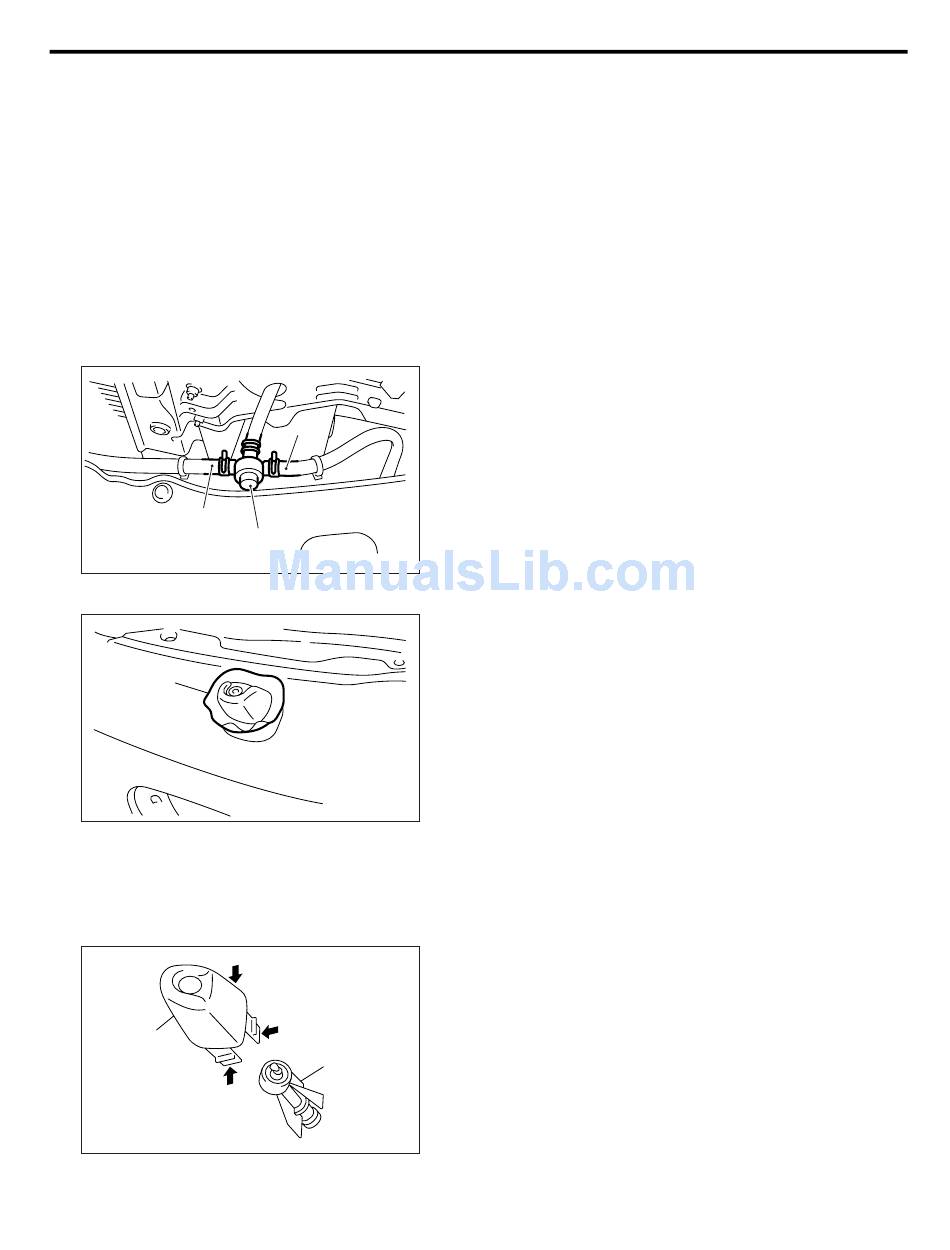

5) Disconnect hose (A) from valve (B).
NOTE:
Washer fluid may drain from valve. Put a pan under
the valve, then disconnect valve from hose while
pinching the hose edge.
(A)
6) Remove nozzle cover (A).
(A)
7) Push the three pawls to remove outer nozzle (A).
Then pull out inner nozzle (B).
NOTE:
Before pushing the outer nozzle pawls, cover the
bumper to avoid scratches.
(A)
Headlight Washer
(A)
(B)
WW-00102
WW-00109
(B)
WW-00110
B: INSTALLATION
Install in the reverse order of removal.
WW-20
