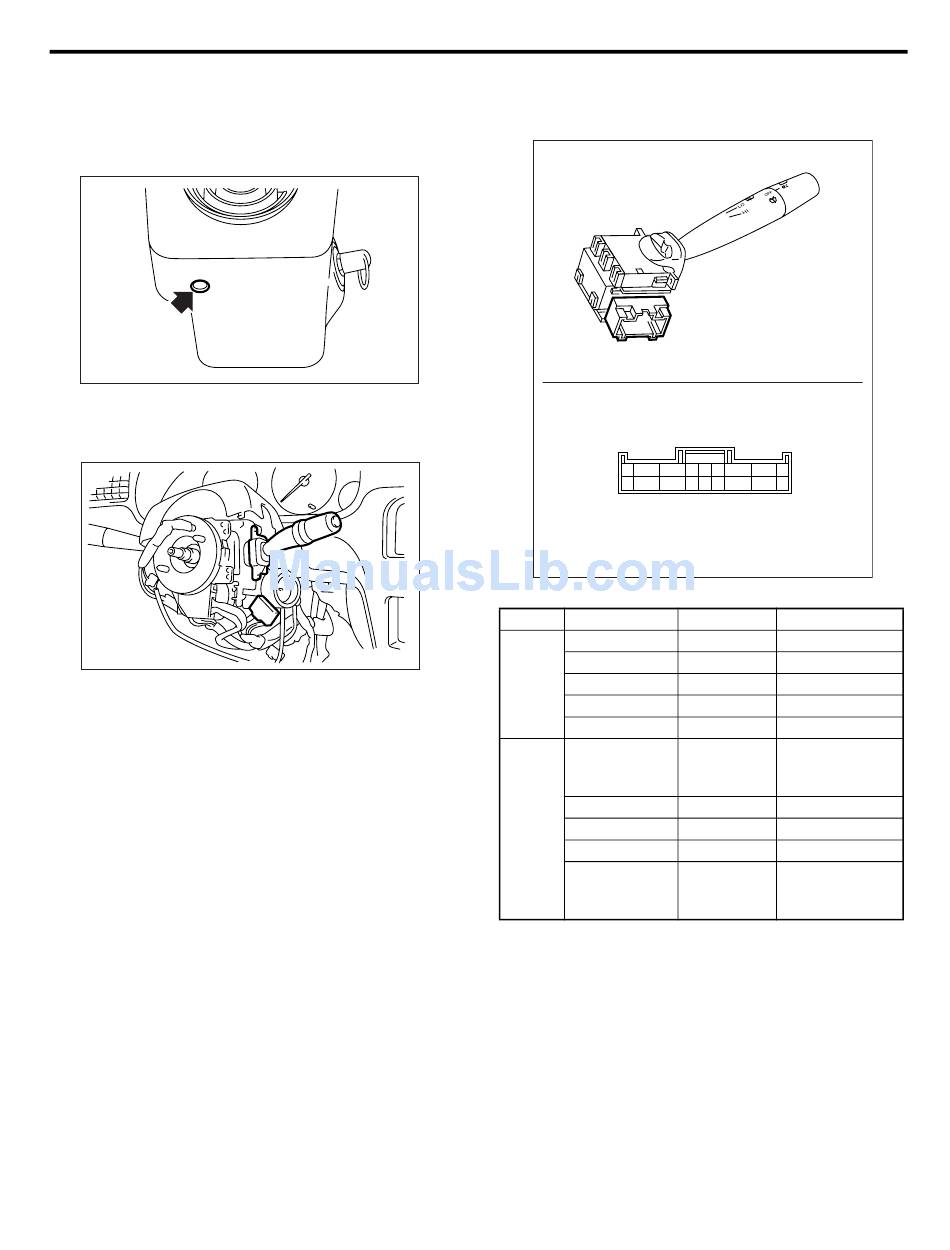

3. Combination Switch (Wiper)

A: REMOVAL
1) Loosen the screw to remove the steering column
cover.
2) Disconnect the connectors from combination
switches.
3) Loosen the screw to remove combination switch.
B: INSTALLATION
Install in the reverse order of removal.
Combination Switch (Wiper)
C: INSPECTION
1) Inspect the continuity between each connector
terminal.
WW-00004
LHD and RHD for Europe model:
WW-00045
WW-7
WIPER AND WASHER SYSTEM
9 8 7 6 5 4
18 17 16 15 14 13 12
Switch position Terminal No.
OFF
INT
FRONT LO
HI
Washer ON
Washer ON
OFF
REAR INT
ON
Washer ON
3 2 1
11 10
WW-00046
Standard
Less than 1 Ω
7 and 16
Less than 1 Ω
7 and 16
Less than 1 Ω
7 and 17
Less than 1 Ω
8 and 17
Less than 1 Ω
2 and 11
2 and 10
Less than 1 Ω
10 and 12
2 and 12
— More than 1 MΩ
Less than 1 Ω
2 and 13
Less than 1 Ω
2 and 10
2 and 10
Less than 1 Ω
10 and 12
2 and 12
