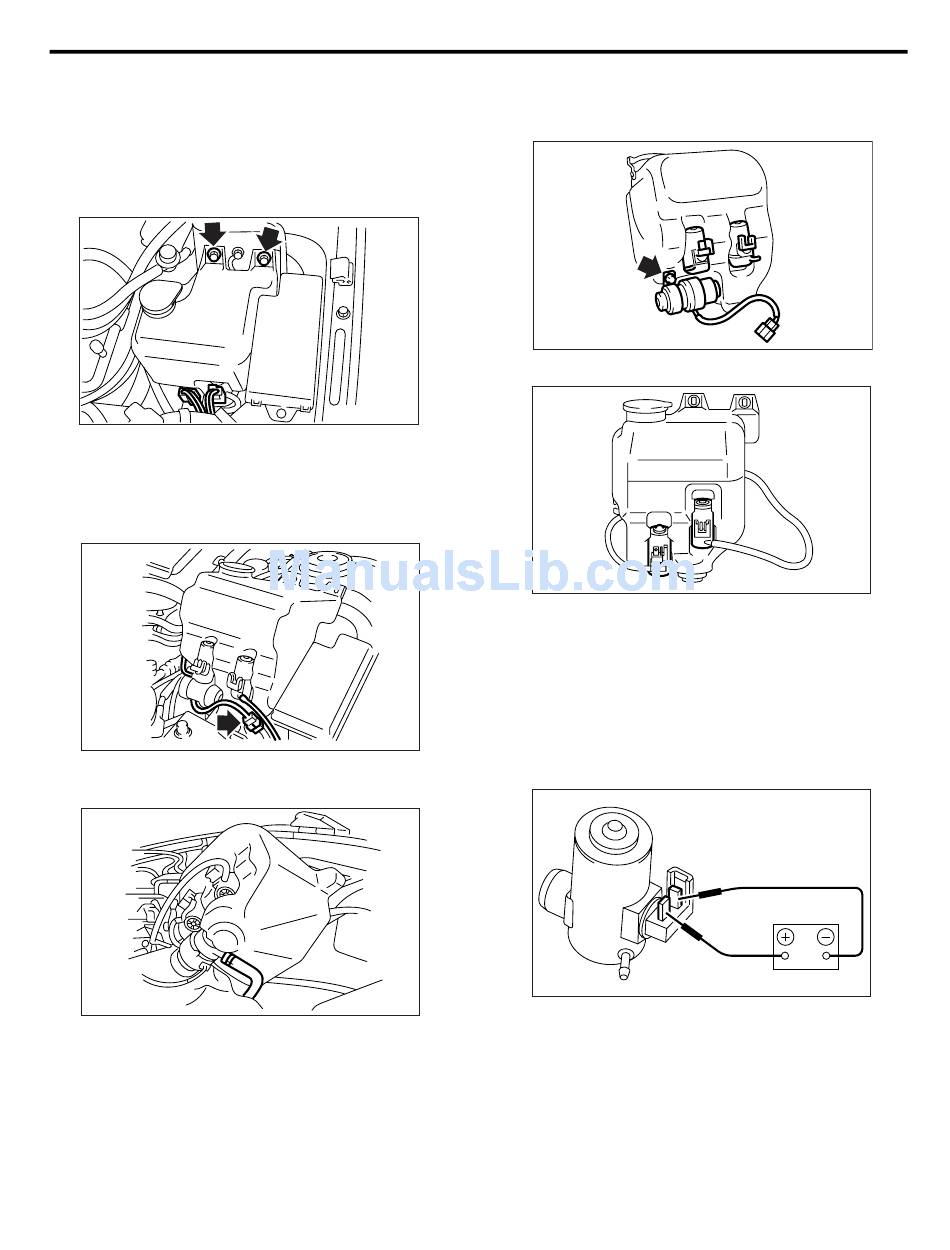

5. Washer Tank and Motor

A: REMOVAL
1) Open the hood.
2) Disconnect the ground cable from battery.
3) Remove the two bolts, hose and connector, and
then remove the tank.
4) For the model with headlight washer, proceed to
step 5) and 6).
5) Lift the washer tank, and then disconnect the con-
nector from headlight washer motor. Disconnect
washer hoses.
6) Disconnect the washer hose from the motor, and
then detach the washer tank.
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
6.0 N·m (0.61 kgf-m, 4.4 ft-lb)
Washer Tank and Motor
C: DISASSEMBLY
1) Remove bolt, and then pull out washer motor
from tank. (Model with headlight washer)
2) Pull out the washer motor from tank.
WW-00011
D: ASSEMBLY
1) Assemble in the reverse order of disassembly.
2) Confirm that water does not leak from installa-
tion area of motor.
E: INSPECTION
Apply battery voltage to the connector terminal of
WW-00098
the washer motor and make sure the motor oper-
ates.
WW-00099
WW-11
