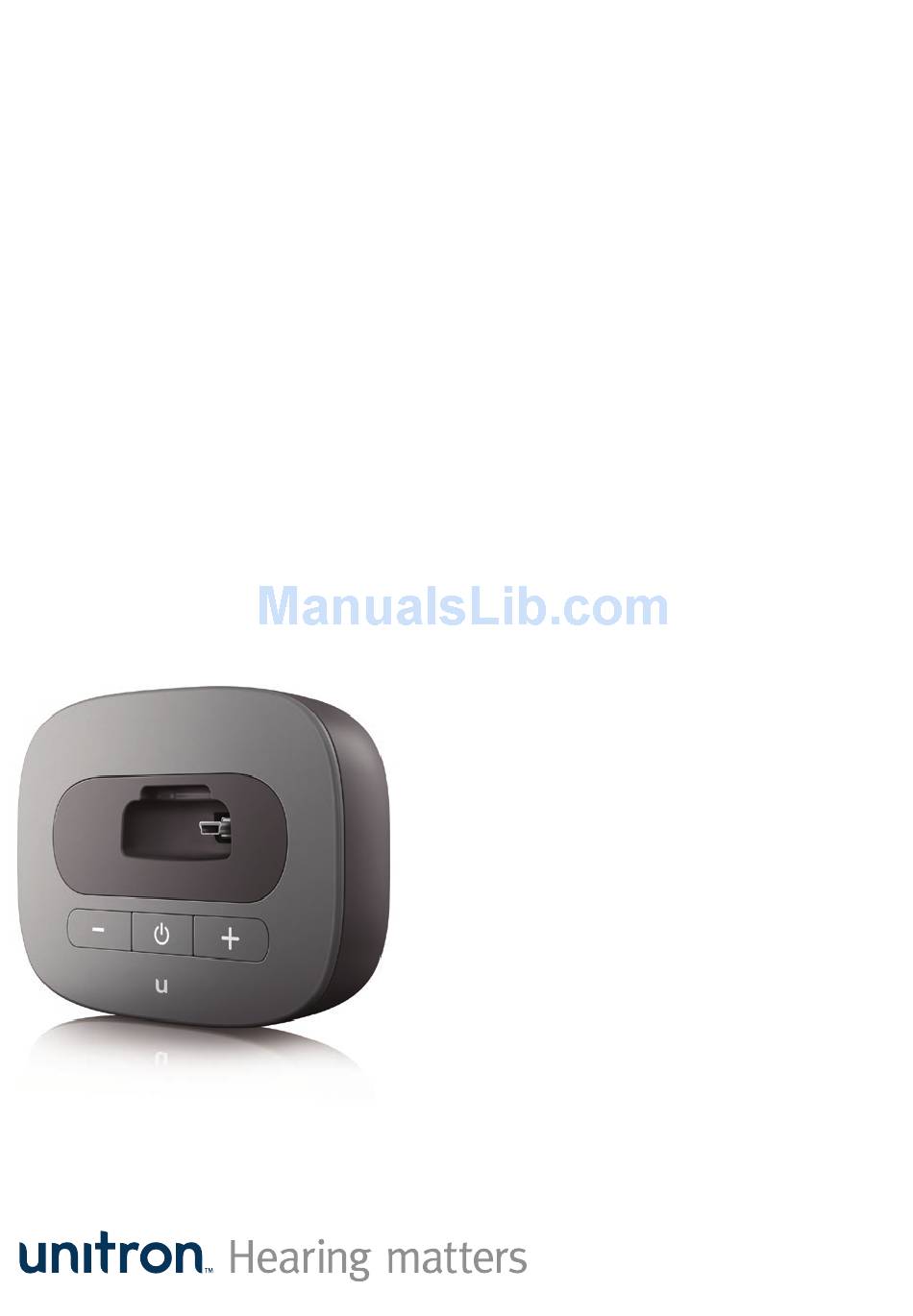

uTV 3
guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uTV 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitron uTV 3

  • Page 1 3 guide...
  • Page 2: Thank You

    Because hearing matters. Serial number of uTV 3: _______________________ The intended use of the uTV 3 is to connect your Warranty: __________________________________ hearing aids to a TV or other audio source. It Date of purchase: ____________________________...
  • Page 3: Table Of Contents

    Step 2: Connecting to the TV ..........6 Step 3: Charging your streamer .......... 12 Step 4: Pairing uTV 3 with your streamer ......15 Daily usage of the uTV 3 ............17 Step 1: Wearing your streamer ........... 17 Step 2: Listening to the TV ..........
  • Page 4: Utv 3 Description

    TV to a streamer within a wirelessly to your TV or other audio devices range of up to 30 meters (100 ft). The uTV 3 also through a streamer. The system consists of serves as a charging cradle for your streamer three main elements: your hearing aids, a when it is not in use.
  • Page 5: Getting Started

    Connecting the power supply Place the uTV 3 next to your TV. Connect the mini-USB plug of the power supply to the power input (Power) of the uTV 3. Plug the 2. Insert the round corner of power supply into the wall socket.
  • Page 6: Step 2: Connecting To The Tv

    Supported audio formats: cable. If more than one cable is connected and The uTV 3 can be connected to any audio source a signal is present, uTV 3 will select the best such as a TV, PC or hi-fi system. It supports possible input in the following order: optical, three different audio input formats.
  • Page 7 • Connect one end of the optical cable into the • the “Coaxial” input of uTV 3, and the other “Optical” input of uTV 3, and the other end end into the coaxial (also known as “digital into the optical output of your TV...
  • Page 8 Connect the stereo plug into the “Analog” • • Cinch” input of the uTV 3. Plug the other end into the headset output socket of your TV Connect the 3.5 mm plug into the “Analog” • input of the uTV 3. Connect the red and...
  • Page 9: Step 3: Charging Your Streamer

    When connecting the uTV 3 to the headset socket of your TV, you are able to adjust the The uTV 3 comes with two charging slots. You volume via your TV remote control. may need to change the slot using a Phillips head screwdriver.
  • Page 10: Step 4: Pairing Utv 3 With Your Streamer

    When using your streamer for the first time, charge it for at least three hours even if the If you have received the uTV 3 and the Unitron battery indicator turns green earlier. After the streamer together in a complete set, they are initial charge, you may leave the streamer in the paired already and you may move on to Step 7.
  • Page 11: Daily Usage Of The Utv 3

    Unitron wireless hearing aids. In cases of interference with other hearing aids, contact your hearing healthcare professional. The uTV 3 can only transmit the audio signal to one streamer at a time. Streaming to multiple receiving streamers is not possible.
  • Page 12: Step 2: Listening To The Tv

    The uTV 3 supports Bluetooth operation up to paired. a range of 30 m (100 ft). Line-of-sight between your streamer and the uTV 3 is not required. • blinks blue, you are in pause mode. Press However, interference in the environment by...
  • Page 13: Step 3: Adjusting The Volume Of The Tv Signal

    Step 3: Adjusting the volume of the If your uTV 3 is connected to the headphone TV signal socket of your TV, you may also use your TV remote control to adjust volume via the TV First, set the volume of the TV speakers at the directly.
  • Page 14: Step 4: Switching Off Utv 3 And Streamer

    Switched on Solid green To end the transmission of the TV audio signal, On but no audio Short blink green switch off the uTV 3 by pressing the on/off input button as shown . Pairing mode Rapid blue blinking Streaming mode...
  • Page 15: Testing The Audio Transmission

    Testing the audio transmission To test the cable connections: If you were able to hear the test melody from The uTV 3 is able to generate a test sound to uTV 3 but you cannot hear the sound from check the system.
  • Page 16: Troubleshooting Guide

    No audio input to uTV 3, Make sure TV is not muted the light indicator blinks Select a 75% volume level I see a rapidly blinking blue indicator light on the uTV 3 green on the TV Make sure the audio cable...
  • Page 17: Important Information

    Adjust the volume using the streamer volume buttons Unitron are not permitted. Opening the uTV 3 might damage it. If After connecting the uTV 3, the TV loudspeaker is problems occur which cannot be resolved switched off by following the remedy guidelines in...
  • Page 18 External devices may only be connected if Information on product safety they have been tested in accordance with When uTV 3 is not in use, turn off the device. corresponding IECXXXXX standards. Only use accessories approved by Unitron. Always plug in the uDirect 3 neckloop and...
  • Page 19: Compliance Information

    The digitally-coded, inductive transmission from the manufacturer or the local Unitron representative technology used in these devices is whose address can be taken from the list on www.unitron.com (worldwide locations). extremely reliable and experiences virtually no interference from other devices. It should...
  • Page 20: Information And Explanation Of Symbols

    The CE symbol is confirmation by Unitron that this However, there is no guarantee that interference will not occur Unitron product meets the requirements of the R&TTE xxxx in a particular installation.
  • Page 21: Transport And Storage Conditions

    The Bluetooth word mark and logos are registered ® trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Unitron is under license. Other trademarks and trade names are those of their respective owners.
  • Page 22 Unitron Hearing 20 Beasley Drive, P.O. Box 9017, Kitchener, ON N2G 4X1 Canada Unitron Hearing GmbH Max-Eyth-Straße 20, 70736 Fellbach-Oeffingen, Germany For a listing of Unitron group companies, please visit www.unitron.com...
  • Page 23 Distributor unitron.com 0 6 9 8 7 6 4 5 8 4 5 9 3...
