Summary of Contents for Unitron uTV 2
- Page 1 Unitron ™ guide...
-
Page 2: Thank You
Thank you Your uTV 2 Thank you for choosing the Unitron uTV ™ Hearing healthcare professional: ________________ At Unitron, we care deeply about people with ____________________________________________ hearing loss. We work closely with hearing healthcare professionals to make advanced, Telephone: __________________________________ purpose-driven solutions available to everyone. -
Page 3: Table Of Contents
Step 2: Connecting the uTV 2.............5 (h) Power supply with Step 3: Switching on all devices ..........10 mini-USB plug and Step 4: Pairing uDirect 2 and the uTV 2........12 country adapter Daily usage of the uTV 2..............14 uDirect 2* (i) Audio cable for Step 5: Wearing your uDirect 2.......... -
Page 4: Utv 2 Description

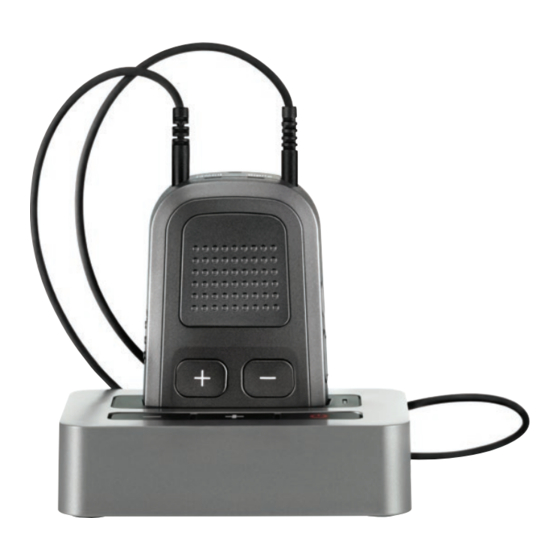

TV to uDirect 2 within a range wirelessly to your TV or other audio devices. The of up to 30 meters (100 ft). The uTV 2 also serves system consists of three main elements: your as a charging cradle for uDirect 2 when uDirect 2 hearing aids, the uDirect 2 and the uTV 2. -
Page 5: Getting Started
Place the uTV 2 next to your TV. Connect the mini-USB plug (d) of the power supply to the power input (Power) of the uTV 2. 2. Insert the round corner of Plug the power supply into the wall socket (h). - Page 6 Use the RCA/Cinch cable (i) to connect the You can also connect your uTV 2 to the headset uTV 2 to the TV: socket of your TV, using the audio cable: Connect the stereo (e) plug to the audio input Connect the stereo plug (e) to the audio input of (Audio IN) of the uTV 2.
- Page 7 Optionally you may use a SCART adaptor: When connecting the uTV 2 to the headset Plug one end of the audio cable (j) into the uTV 2 socket of your TV, you are able to adjust the volume via your TV remote control.
-
Page 8: Step 3: Switching On All Devices
Step 3: Switching on all devices Switch on the uTV 2 by a short press of the ON/OFF button (a) as shown in fig. 2. The status To use the uTV 2, all devices must be switched light (g) will illuminate green initially and may later switch to blue. -
Page 9: Step 4: Pairing Udirect 2 And The Utv 2
Step 4: Pairing uDirect 2 and the uTV 2 2. If the uTV 2 status light (g) is not rapidly blinking blue already, press the ON/OFF Before starting to use the uTV 2 and uDirect 2, button (a) for 5 seconds until the Bluetooth they need to be paired. -
Page 10: Daily Usage Of The Utv 2
The uTV 2 supports Bluetooth operation up to a range of 30 m (100 ft). Line-of-sight between 1. Put the neckloop around your uDirect 2 and the uTV 2 is not required. your neck (easily done by However, interference in the environment by... -
Page 11: Step 7: Adjusting The Volume Of The Tv Signal
First, set the volume of the TV speakers at the level to suit other viewers. If the uTV 2 is connected to your TV with the RCA/Cinch cable (i) or the SCART adaptor (k), adjust the volume via the uTV 2 volume control (b) and (c) (fig. -
Page 12: Step 8: Pause And Phone Calls During Operation
If uDirect 2 is paired with your mobile phone, operation you can still receive phone calls, even when watching TV via uTV 2. In case of an incoming call, uDirect 2 automatically stops transmitting the audio signal from your TV and sends the signal from your mobile phone to your hearing aids. -
Page 13: Step 9: Switching Off Utv 2 And Udirect 2
The uDirect 2 power indicator will blink red first, then solid for 2 seconds to indicate complete shut-down. Step 9: Switching off uTV 2 and uDirect 2 To switch off the devices: To end the transmission of the TV audio signal, switch off the uTV 2 by pressing the ON/OFF button (a) as shown in fig. -
Page 14: Step 10: Charging Udirect 2
Its status light does not indicate the To charge uDirect 2, gently plug it into the charging process. charging slot (f) of the uTV 2 as shown in fig. 9. The typical time to fully charge uDirect 2 is 90 minutes. -
Page 15: Testing The Audio Transmission
Testing the audio transmission Understanding the status lights for uDirect 2 and uTV 2 during streaming The uTV 2 is able to generate a test sound to check the system. To start testing: audio power Switch ON and wear uDirect 2 correctly. -
Page 16: Troubleshooting Guide
Repeat step 4 Example: paired Red/blue/red/blue/etc: streaming test sound to I see a rapidly blinking blue indicator light on the uTV 2 uDirect 2, no audio input detected on the uTV 2. uTV 2 is in Bluetooth Go to step 4... - Page 17 2 and uTV 2 other, 30 m (100 ft) is the is too far maximum in line of sight After connecting the uTV 2, the TV loudspeaker is To avoid streaming switched off interruptions, make sure you The headset output...
-
Page 18: Important Information
Important information Information on product safety When uTV 2 is not in use, turn off the device. Please carefully read the corresponding section Always plug in the uDirect 2 neckloop and in the uDirect 2 user guide which is delivered wear it around the neck when transmitting along with each uDirect 2. -
Page 19: Compliance Information
Do not use these devices in areas where Notice 2: electronic equipment is prohibited. Changes or modifications made to this device not expressly approved by Unitron may void the FCC authorization to operate this device. - Page 20 More details can be found in the data sheet which can be cause harmful interference to radio communications. However, downloaded from www.unitron.com. there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio...
-
Page 21: Information And Explanation Of Symbols
® Radiocommunications compliance label. trademarks owned by Bluetooth SIG, Inc. and any use of © Copyright symbol such marks by Unitron is under license. Other trademarks and trade names are those of their respective owners. - Page 22 Unitron Hearing, a division of National Hearing Services Inc. 20 Beasley Drive, P.O. Box 9017, Kitchener, ON N2G 4X1 Canada Sonova AG Laubisrütistrasse 28 CH-8712 Stäfa, Switzerland For a listing of Unitron group companies, please visit www.unitron.com...
- Page 23 Distributor unitron.com 0 6 9 8 7 6 4 4 2 1 9 0 4...
