Summary of Contents for Unitron uMic

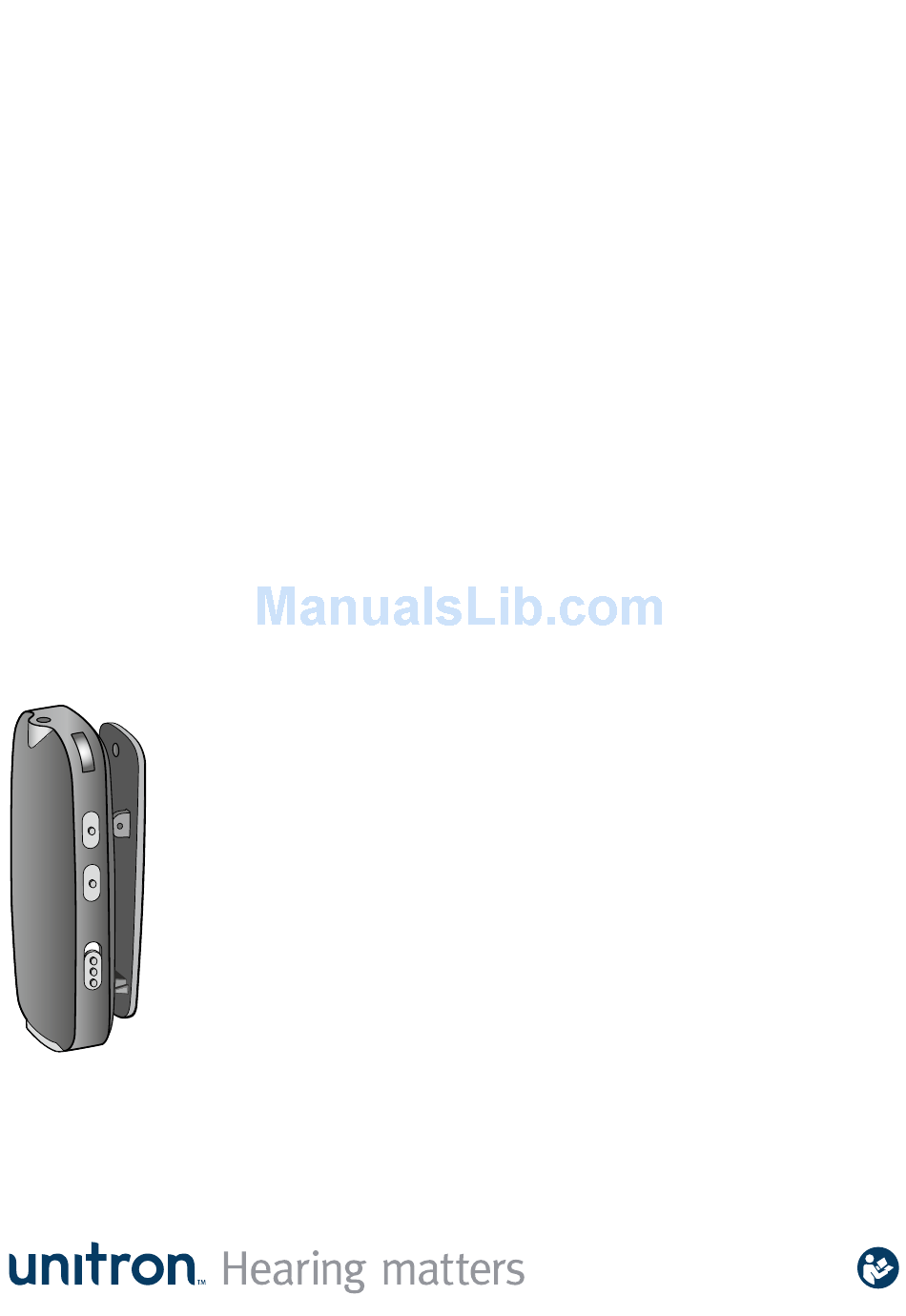

- Page 1 Unitron uMic ™ guide...
-
Page 2: Thank You
Thank you Your uMic Thank you for choosing the Unitron uMic ™ Hearing healthcare professional: ________________ At Unitron, we care deeply about people with ____________________________________________ hearing loss. We work closely with hearing healthcare professionals to make advanced, Telephone: __________________________________ purpose-driven solutions available to everyone. -
Page 3: Table Of Contents
Charging the uMic ................5 Turning the uMic on and off .............7 Pairing the uMic with uDirect 2............8 Preparing the uDirect 2 ..............12 Connecting the uMic and uDirect 2..........13 Functional test of uMic ..............14 Bluetooth pairing Setting the uMic volume ..............15 Wearing uMic Wearing the uMic correctly ............16... -
Page 4: Your Umic At A Glance
3 Power switch ( Within this user guide the uDirect 2 is shown ™ as an example. As the uMic transmitter is based 4 Charging input (mini-USB) on Bluetooth technology, other Bluetooth ®... -
Page 5: Getting Started
Typical charging time is 2 hours. Charging is complete when the indicator light turns solid green. When charging your uMic for the first time, let it charge for at least three hours, even if the battery up to 20 meters indicator is not lit or turns green earlier. -
Page 6: Turning The Umic On And Off
Sleep mode With uTV 2: If after 30 minutes no streamer device, such as uDirect 2, is found the uMic will power down to The uMic can be charged save battery even if the power switch is in the on... -
Page 7: Pairing The Umic With Udirect 2
The uDirect 2 will remain in pairing 5. Make sure the uDirect 2 and uMic are within mode for two minutes or until the pairing is 1 m (3 ft) range of each other. - Page 8 Charging Solid red Charged and full battery Solid green The uMic can be paired to a maximum of 4 devices. A fifth pairing will replace the first paired device. Low battery warning Additional red short blink as well as the Two devices need to be paired only once.
-
Page 9: Preparing The Udirect 2
2. Always wear the uDirect 2 around the neck. 1. Make sure the uDirect 2 and uMic are within 3. Make sure both plugs are well connected in 2 meters (6ft) range of each other. -
Page 10: Functional Test Of Umic
Setting the uMic volume Before using the system, perform To change the uMic volume: a quick functional test by gently 1. Speak into the uMic from a 20 cm (8”) tapping on the microphone distance. opening. 2. Use the volume (... -
Page 11: Wearing The Umic Correctly
Wearing the uMic correctly uMic pause and resume 1. Gently press to open the clip. To pause the audio transmission from your uMic, press the uDirect 2 2. Ensure the uMic is clipped access ( ) button. securely to clothing as shown in the picture . -
Page 12: Switching The Umic Off
30 minutes, the uMic will go into sleep mode to save power. The light indicator instead. will turn off and a uMic re-start (turn off and on again) is required to resume the transmission. “click” To accept an incoming call, briefly press the uDirect 2 access ( ) button once you hear the ringtone through your hearing aids. - Page 13 If the uMic is moved out of range of the improve the sound quality while watching TV. uDirect 2,.the wireless audio transmission will be interrupted or even terminated. If the uMic...
- Page 14 2 access button. With each press, 1. Turn the uMic on while pushing the the uDirect 2 selects the next uMic in a fixed button and hold the button for sequence. 10 seconds. This deletes all pairings.
-
Page 15: Troubleshooting Guide
The uMic is too far Do not exceed the maximum away from uDirect 2 or distance and relocate device I cannot hear sound from the uMic shielded by an obstacle One or all devices are Make sure all devices (uMic,... - Page 16 Most probable cause Remedy Most probable cause Remedy There is too much noise, I cannot understand the uMic is no longer recognized by the uDirect 2 with which speaker it was previously paired Your hearing aid Reduce the hearing aid 2 minutes after no device Switch uDirect 2 off.
-
Page 17: Warnings
Warnings Most probable cause Remedy I see a rapidly blinking blue indicator light on the uMic Please carefully read the corresponding uMic is in pairing mode Complete the pairing section in the Unitron uDirect 2 user guide which is delivered along with each uDirect 2. - Page 18 Important information Information on product safety Do not charge uMic from a PC or laptop USB Turn off the uMic when not in use. port. This may damage your equipment. Always plug in the uDirect 2 neckloop and wear Changes or modifications to any of the...
-
Page 19: Compliance Information
The full text of the Declaration of Conformity can be obtained devices. from the manufacturer or the local Unitron representative whose address can be taken from the list on www.unitron.com Do not use these devices in areas where (worldwide locations). -
Page 20: Information And Explanation Of Symbols
However, there is no guarantee that interference The CE symbol is a confirmation by Unitron that this Unitron will not occur in a particular installation. If this device does cause product meets the requirements of the R&TTE Directive 1999/5/ harmful interference to radio or television reception, which can EC on Radio and Telecommunication Terminal Equipment. -
Page 21: Transport And Storage Conditions
Bluetooth SIG, Inc. and any use of such marks by user guides. Unitron is under license. Other trademarks and trade names are 0° to 55° Celsius and relative humidity of <95% (non condensing). those of their respective owners. - Page 22 Unitron Hearing Ltd. 20 Beasley Drive, P.O. Box 9017, Kitchener, ON N2G 4X1 Canada European Representative Max-Eyth-Straße 20, 70736 Fellbach-Oeffingen, Germany For a listing of Unitron group companies, please visit www.unitron.com 0678...
- Page 23 Distributor www.unitron.com 12-021...029-5905-02...
