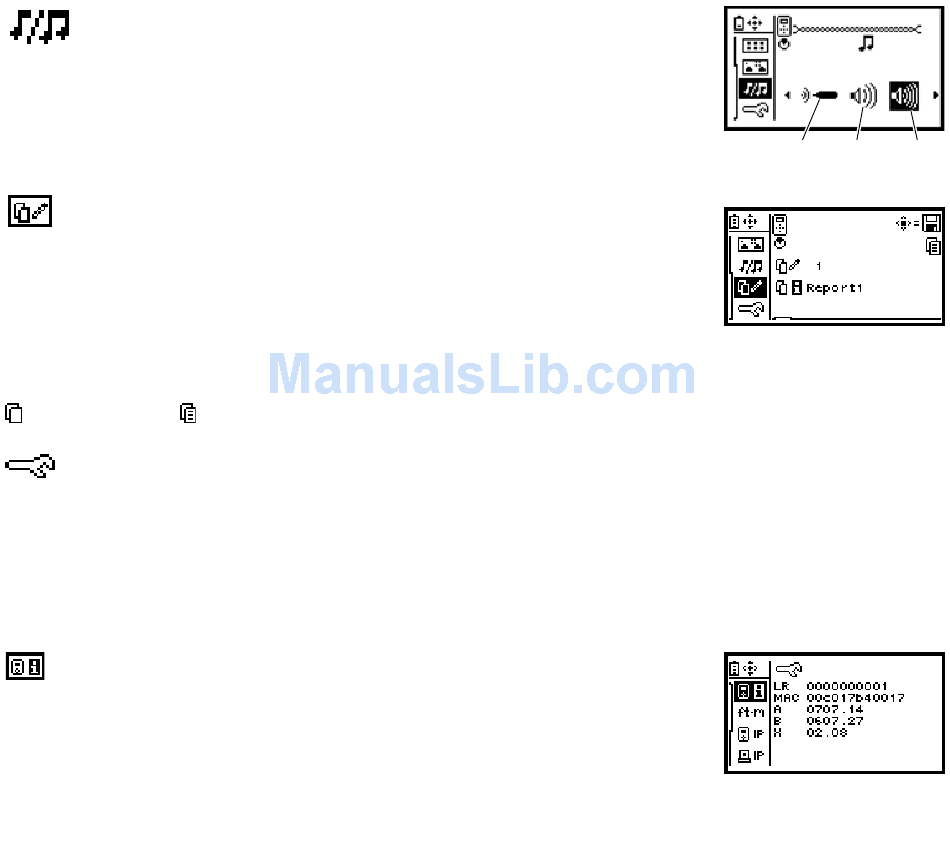

IntelliTone screen
This function can be paired up with the Fluke Networks IntelliTone
you to use LinkRunner Pro as the tone generation device along with the IntelliTone
Probe to trace connections using either a digital tone (Fluke Networks IntelliTone
or two different analog tones.
Saving Reports
Allows you to save the report summary information which contains the current Home
screen, PING screen, and LLDP, EDP, CDP screen. Saved reports must be viewed on a
PC using the LinkRunner Connect application. Make sure LinkRunner Pro is connected
to a PC using the provided USB cable.
To save a report: Highlight the Report symbol and press the selection button. Use the
left/right arrow keys to select which report number/name to save the summary
information to (default names are Report1 – Report8 which can be edited), and press
the selection button again.
report empty
Configuration screen
The Configuration screen accesses multiple functions: It will display LinkRunner Pro version information, MAC
address, along with the serial number. It allows you to change the cable length measurements from feet to meters,
to use DHCP or manually enter the LinkRunner Pro IP address, enter up to 10 IP addresses to PING, and to enable
options.
To avoid a duplicate IP address on your network, use DHCP instead of manually entering the IP address.
Use the supplied LinkRunner Connect PC application to easily enter the PING IP addresses to LinkRunner Pros thru the
supplied USB cable.
LinkRunner information screen
Displays LinkRunner Pro's serial number, MAC number, and software version
numbers.
report saved
TM
Probe. It allows
TM
),
Digital Analog Analog
Tone 400 Hz 1 kHz
Tone Tone
