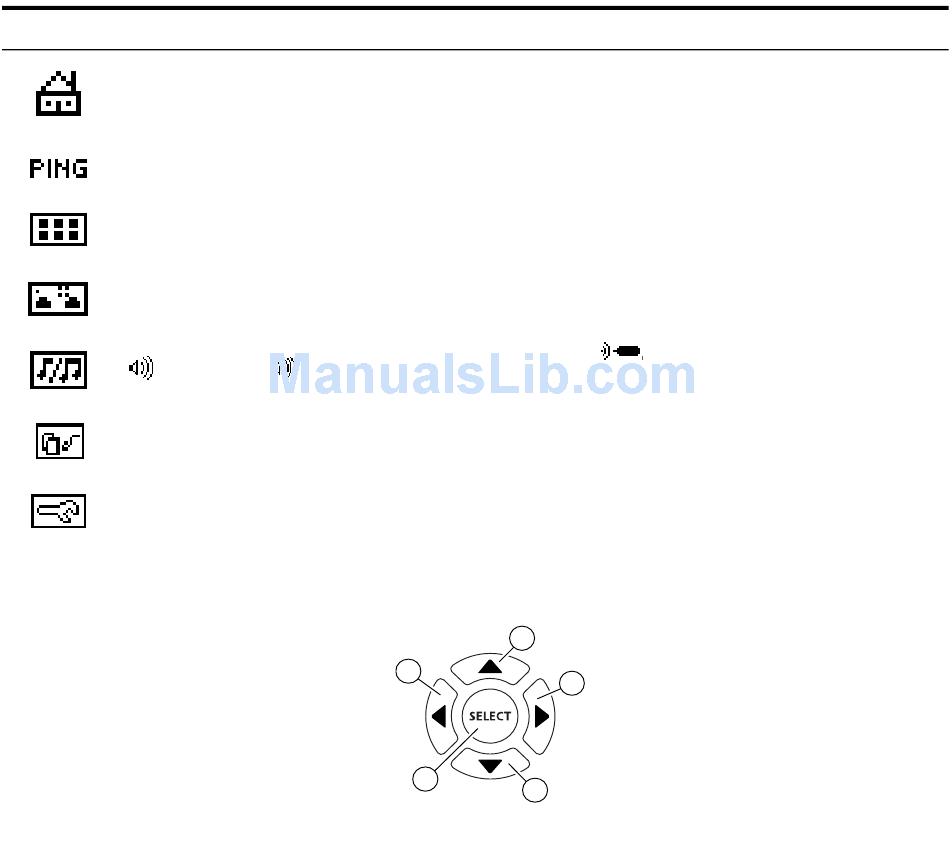

Navigation
Home screen – Displays link, speed/duplex, length, utilization, security authentication (802.1X, PoE,
Telco, Token Ring, un-terminated cable) and wire map information.
PING screen – Displays (scrolling from left to right) a Tx/Rx summary of all devices to the right which
will include: the Router, DHCP, DNS, and each user configured IP address.
LLDP (IEEE), EPD (Extreme Networks), CDP (CISCO) screen – Displays the switch type , slot, and port
number the LinkRunner Pro is connected to (up to 5 devices).
Flash Hub Port screen – Causes the LinkRunner Pro to continuously link and unlink at a selected speed.
This is useful when identifying which port LinkRunner Pro is connected to. Use LLDP/EDP/CDP test first
if your network supports it.
Toner screen – Generates a digital tone (IntelliTone) signal
(400 Hz) and
probes.
Reports screen – Allows you to save up to 8 reports. Each report contains a summary of the Home
screen, PING screen, and LLDP, EDP, CDP screen. The reports must be viewed on the LinkRunner
Connect PC application.
Configuration screen – Multiple menu functions are accessed in this screen. The configuration screen
accesses: the LinkRunner Pro version information; cable length units (feet or meters); DHCP selection
(or manually enter the IP address and subnet mask); enter up to 10 PING addresses; enable options;
edit or delete reports; perform a firmware update; or exit back to the Home screen. See the
Configuration section for details.
1. Scroll up thru the functions
2. Scroll right within a function
3. Scroll down thru the functions
4. Scroll left within a function
5. Select a function
(1 KHz) to be used with Fluke Networks IntelliTone product or common analog
4
5
, or two different analog tone signals
1
2
3
