Welcome

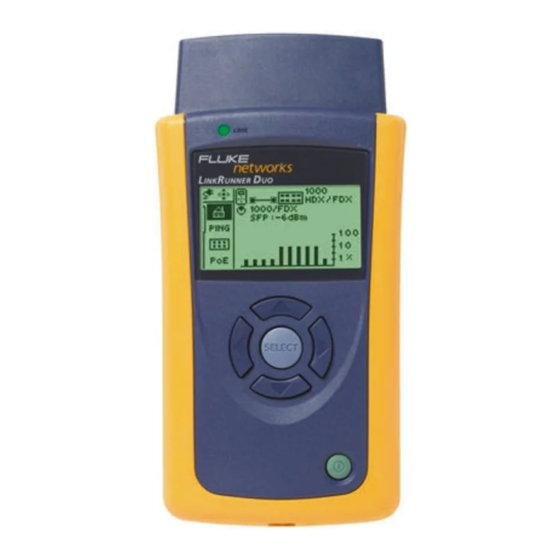

Thank you for purchasing Fluke Networks LinkRunner Duo! This test tool enables you to quickly verify Ethernet
copper/fiber cables, network connectivity and availability. In addition, the instrument provides multiple tools for
identifying the network device to which it is connected, identifies PoE ports, provides a Report generating function,
and can serve as a reflector (optional feature) for Fluke Networks performance tests. You can use the included
LinkRunner Connect PC application to quickly configure and update the instrument, download and view reports, and
other useful functions.
Safety
To register your LinkRunner Duo or to obtain a keycode for a purchased option, go to
www.flukenetworks.com/register. You can also register by sending e-mail to support@flukenetworks.com.

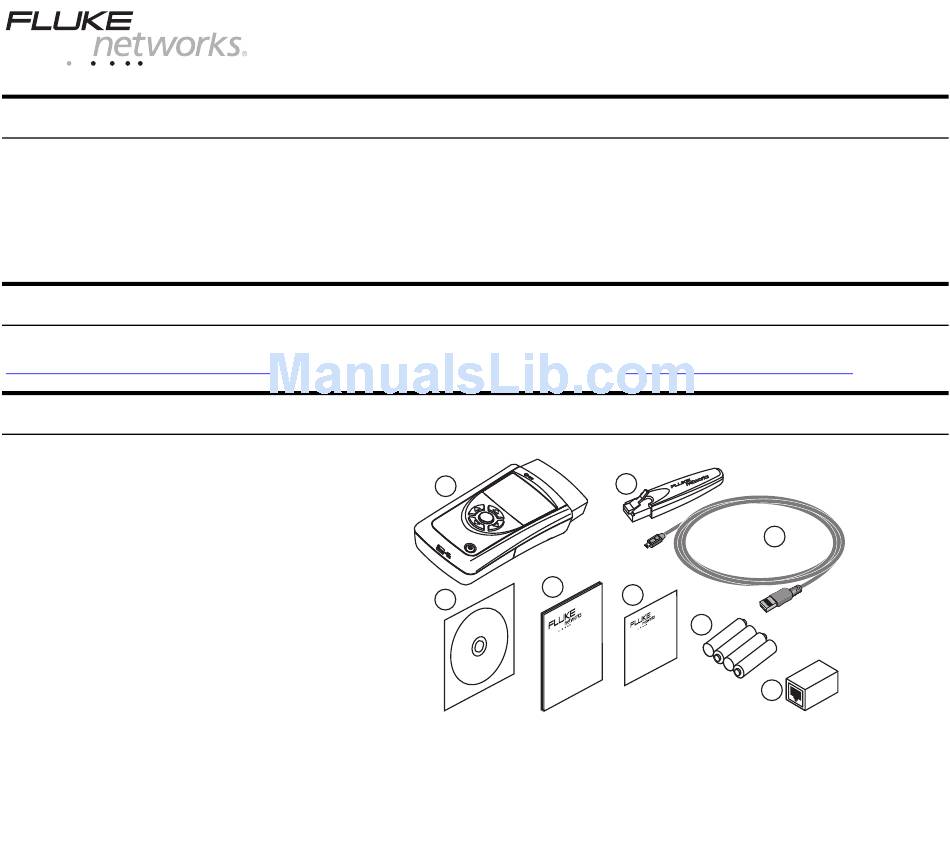

What's in the box?
Item
1. LinkRunner Duo
2. LinkRunner Connect CD
3. Quick Reference Guide
TM
4. Wireview
Office Locator #1
(not supplied with LRDUO-CE)
5. USB-A – USB-B Mini Cable
6. Registration Card
7. Batteries (4 AA)
8. RJ-45 Coupler
(not supplied with LRDUO-CE)
PN 3468966, April 2009
© 2009 Fluke Corporation. All rights reserved. Printed in USA
All product names are trademarks of their respective companies
LinkRunner Duo
1
3
2
.
TM
Network MultiMeter
Quick Reference Guide
4
5
6
7
8
Advertisement
Table of Contents
Related Manuals for Fluke LinkRunner Duo
Summary of Contents for Fluke LinkRunner Duo
- Page 1 Quick Reference Guide Welcome Thank you for purchasing Fluke Networks LinkRunner Duo! This test tool enables you to quickly verify Ethernet copper/fiber cables, network connectivity and availability. In addition, the instrument provides multiple tools for identifying the network device to which it is connected, identifies PoE ports, provides a Report generating function, and can serve as a reflector (optional feature) for Fluke Networks performance tests.
-
Page 2: Safety Information
Cleaning To prevent moisture from entering the LinkRunner Duo, clean it with a moist cloth only. Do not use organic solvents, acid, or alkali solutions. Safety Information The following symbols are used on the product and in this document: NOT FOR CONNECTION TO PUBLIC TELEPHONE SYSTEMS... - Page 3 Count on LinkRunner Duo for Answers! First connect an RJ-45 or fiber cable from the network hub or wall plate to the LinkRunner Duo RJ-45 LAN or 1000BASE-X fiber port. Check the following list of questions and associated answers to see how LinkRunner Duo can help you get the job done.
- Page 4 Power over Ethernet - Displays the Power over Ethernet voltage levels for each Ethernet connector pin. Flash Hub Port screen – Causes the LinkRunner Duo to continuously link and unlink at a selected speed. This is useful when identifying which port LinkRunner Duo is connected to. Use the LLDP/EDP/CDP test first if your network supports it.
- Page 5 Is this an active RJ45 LAN port? Note: If both the RJ45 LAN and 1000BASE-X fiber ports are connected to your network, LinkRunner Duo will try to link to the RJ45 LAN port first. If link has been established over fiber and you connect also to the RJ45 LAN port, no change in link will occur.
- Page 6 Is this an active Fiber port? Fiber/Link Status: Advertised speed/duplex Actual link speed/duplex The optical signal strength being received by the SFP if DDM (digital diagnostic monitoring) is supported by the SFP. Blank indicates no DDM. Note: The SFP power measurement accuracy is based on the SFP manufacturer’s specification.
- Page 7 The Home screen displays link or Ethernet wire map information depending on the connection. If the RJ-45 Ethernet cable is connected from the RJ-45 LAN port to your network, LinkRunner Duo will display link information which will include link, speed/duplex, cable length to the network connection, and network utilization.
- Page 8 The 10 additional IP addresses are entered in the Configuration screen, or by using the LinkRunner Connect PC application and transferring them via a provided USB cable to the LinkRunner Duo. Note: If configured for DHCP, and the DHCP server cannot be found, PING will display...
- Page 9 This function can be paired up with the Fluke Networks IntelliTone Probe or an analog probe. It allows you to use LinkRunner Duo as the tone generation device along with the IntelliTone Probe to trace connections using either a digital tone (Fluke Networks IntelliTone ), or two different analog tones.
- Page 10 It allows you to enable 802.1X security; change the cable length measurements from feet to meters, set the power off timeout, use DHCP or manually enter the LinkRunner Duo IP address, enter up to 10 IP addresses to PING, and enable options.
- Page 11 The unit will not automatically power off in PING, switch discovery, IntelliTone, or reflect modes, or when the AC adapter is connected. Note: LinkRunner Duo supports the following 802.1X encryption key sizes: 512, 768, 1024, 1280, 1536, 1792, and 2048 bits.
- Page 12 Selecting the IP number/name to edit: When is highlighted, press the selection button (center). Use the up/down arrow keys to choose the IP number and the selection button to select it. Notice at the bottom of the display, the IP name changes as you scroll thru the 10 IP numbers.
- Page 13 - any packet - destination MAC is this LinkRunner Duo and the data string contains a special Fluke Networks byte string (generated by the Fluke Networks instrument)
-
Page 14: Other Features
LRPRO-LION Contacting Fluke Networks Sales, Service, and Support Centers To order accessories or get the location of the nearest Fluke Networks distributor or service center, visit the Fluke Networks contact website at www.flukenetworks.com/contact. Send email to support@flukenetworks.com. For operator assistance in the USA, call 1-800-28-FLUKE (1-800-283-5853). You can also visit the Fluke Networks... -
Page 15: General Specifications
Agency Certification and Approval Canadian Standards Association certified to Canadian and US standards Meets C-Tick EMC standard, N10140, complies with FCC Part 15 Class A N10140 Conforms to European Union Directives Pollution Degree 2 Laser Class 1 Laser Product, complies with 21 CFR 1040.10 & 1040.11, CFR(J), and EN60825- 1:1994/A1:1997/A2:2002 General Specifications Media Access... - Page 16 Security Operational Security IEEE 802.1X option for network authentication. LinkRunner Duo supports the following 802.1X encryption key sizes: Note: 512, 768, 1024, 1280, 1536, 1792, and 2048 bits. Environment Specifications Operating Temperature +10 to +40 degrees C Storage Temperature -20 to +60 degrees C...
