Fluke LinkRunner Pro Quick Reference Manual page 5

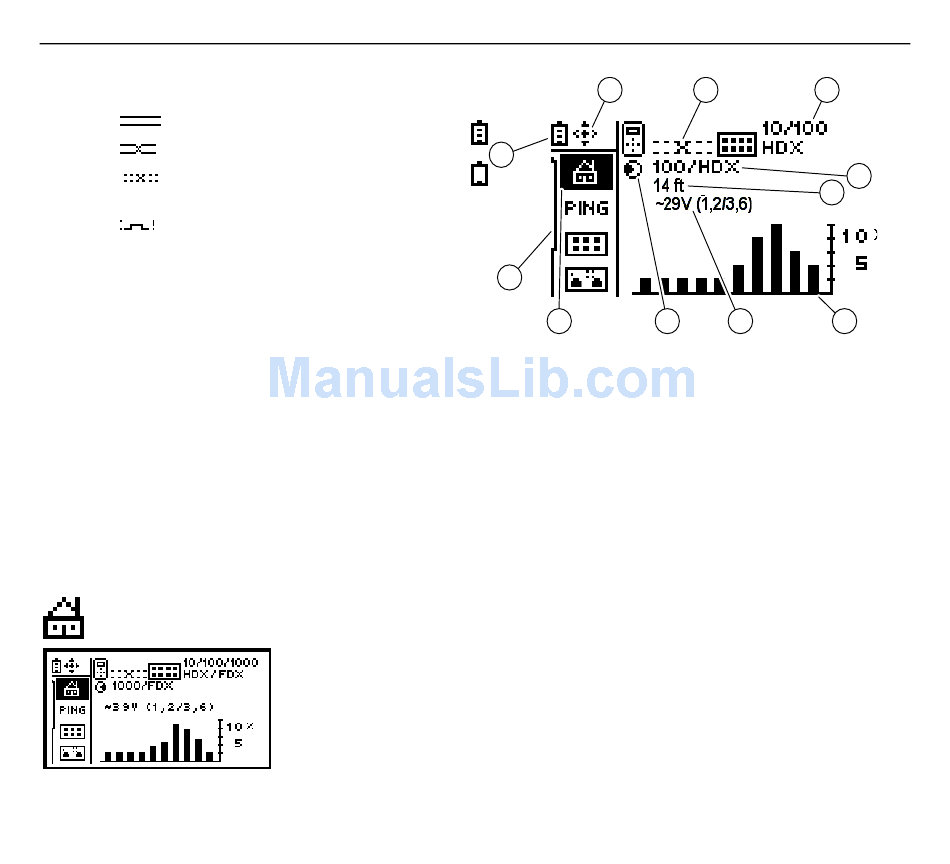

Is this an active Ethernet port?
1. Cable/Link Status:
Straight patch
Crossover patch
Unknown patch (Auto-MDIX
port on hub or switch)
Link Level (displays when low)
2. Advertised speed/duplex
3. Actual link speed/duplex
4. Cable length from LinkRunner Pro to
cable end or device
5. Navigation arrows. Indicates which buttons are active.
6. Highlighted function is the active function. While a function is active, you my scroll to other functions.
Press the center button to select a new function.
7. Activity indicator.
8. Network Utilization. After 10% Utilization, scale changes to 100%.
9. PoE voltage
10. Scroll bar
11. Batteries low and batteries good
Home screen – Link Information and Wire Map functions
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
The Home screen displays link or wire map information depending on the
connection. If the RJ-45 Ethernet cable is connected from the RJ-45 LAN port to
your network, LinkRunner Pro will display link information which will include
link, speed/duplex, cable length to the nearest switch, and utilization.
If LinkRunner Pro detects PoE, this screen will display PoE information. Notice
the PoE voltage and wire pairs are displayed.
FAX 781.665.0780 - TestEquipmentDepot.com
5
11
10
6 7
1 2
3
4
9 8
