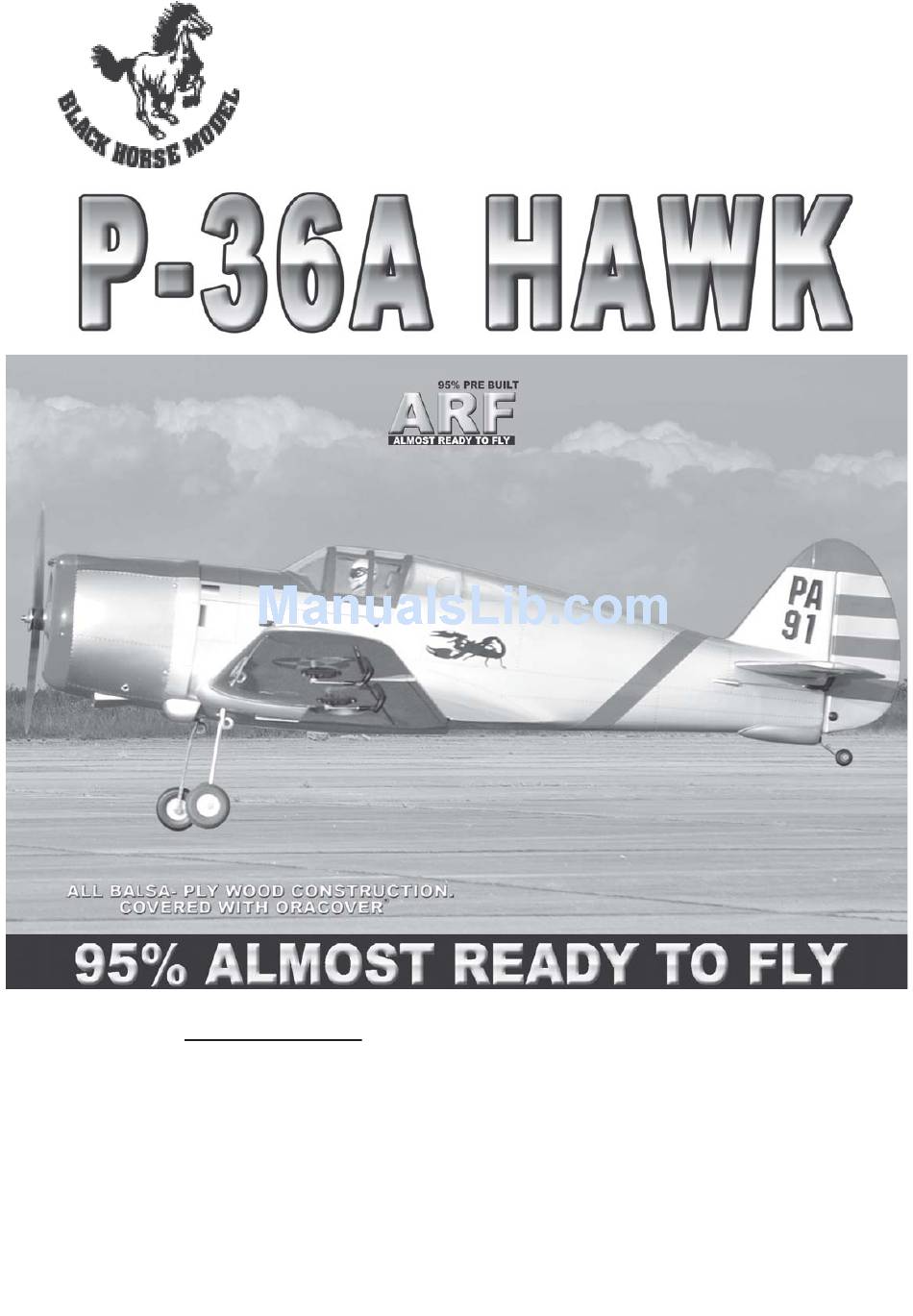

Black Horce Model P-36A Hawk Instruction Manual Book

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Instruction Manual book
SPECIFICATION
 Wingspan
 Length
 Weight
Engine
 Servo :
Radio
: 1,600 mm
: 1,300 mm
: 3.9 kg
: 61 cu.in-2stroke.
15 CC Gas
: 8 Servos + 2 servos Retract (HITEC HS-75BB)
:
8 channels.
ITEM CODE: BH41
63.in.
52.in.
8.58 lbs.
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-36A Hawk and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horce Model P-36A Hawk

Summary of Contents for Black Horce Model P-36A Hawk

  • Page 1 Instruction Manual book ITEM CODE: BH41 SPECIFICATION  Wingspan : 1,600 mm 63.in.  Length : 1,300 mm 52.in.  Weight : 3.9 kg 8.58 lbs. : 61 cu.in-2stroke. Engine 15 CC Gas  Servo : : 8 Servos + 2 servos Retract (HITEC HS-75BB) 8 channels.
  • Page 2 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your P- 36A HAWK. Use the parts listing below to identify all parts. WARNING.

  • Page 3: Safety Precaution

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. SAFETY PRECAUTION. + This is not a toy + Be sure that no other flyers are using your radio frequency . + Do not smoke near fuel. + Store fuel in a cool, dry place, away from children and pets. + Wear safety glasses.

  • Page 4: Installing The Aileron Servos

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. REPLACEMENT SMALL PARTS 3 x 10mm. 3 x 10mm. 1.Door mounting wheel. I. AILERON. 2.Retract main gear(Right&Left). 1.INSTALLING THE AILERON SERVOS. 3.Wheels. 1) Install the rubber grommets and brass   4. Fuel tank. eyelets onto the aileron servos.
  • Page 5 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL.  2) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.

  • Page 6: Installing The Aileron Linkages

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Install aileron control horn as same as INSTALLING THE AILERON picture below. LINKAGES. 2x8mm. 58 mm. 2 x 8mm Aileron control horn. 2 x 8mm Secure. Secure. Aileron control horn. Repeat the procedure for the other wing Repeat the procedure for the other wing half.

  • Page 7: Installing The Flap Servos

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. II. FLAP. 1.INSTALLING THE FLAP SERVOS. Secure. Thread E l e c t r i c wire Flap control horn. C/A glue. Secure. 2.INSTALLING THE FLAP CONTROL HORN. 3 x 15 mm. C/A glue. Bottom of wing.
  • Page 8 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Aileron Flap bottom of wing. C/A glue. Repeat the procedure for the other wing half. INSTALLING RETRACTABLE 3. INSTALLING THE FLAP LANDING GEAR. LINKAGES. Installing the aileron linkages as pictures below. 2x8mm. 58 mm. 3 x 15mm.
  • Page 9 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Mark point. Mark point. Drill a hole 2mm diameter 3 x 15mm. Secure. Secure.
  • Page 10 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Push. Servo for retractable only. connector. Secure. Secure.
  • Page 11 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Drill a hole 2mm diameter Drill a hole 2mm 3 x 10mm. diameter Remove covering. 3 x 10mm. Secure. Trim and cut. Secure.

  • Page 12: Installing The Engine Mount

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. INSTALLING THE ENGINE. Bottom side. Repeat the procedure for the other wing half. 5 x30mm. INSTALLING THE ENGINE MOUNT. See pictures below: Drill a hole 5.2mm diameter...

  • Page 13: Installing The Throttle - Cable

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Secure. Throttle servo INSTALLING THE THROTTLE - CABLE. Throttle cable 1. Install one adjustable metal connector  through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 14 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. 6. When satisfied with the alignment of the 1. The stopper has been pre-assembled at   stopper assembly tighten the 3mm x 20mm the factory. 2. Using a modeling knife, cut one length of machine screw until the rubber stopper ...
  • Page 15 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Do not secure the tank into place permanently until after balancing the airplane. You may need to remove the tank to mount the battery in the fuel tank compartment. COWLING. See pictures below : Fuel tank.
  • Page 16 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. center 2. Mark point 1. center 1. Mark point 3. Center 3. Mark point 2. Trim and cut.
  • Page 17 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL.  1) Slide the fiberglass cowl over the en- gine and line up the back edge of the cowl with 3x 12mm. the marks you made on the fuselage.  2. While keeping the back edge of the cowl flush with the marks, align the front of the cowl with the crankshaft of the engine.

  • Page 18: Horizontal Stabilizer

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. ELEVATOR INSTALLING SERVOS. C/A glue. C/A glue. Elevator servo. C/A glue. Elevator servo. HORIZONTAL STABILIZER. See pictures below: 9 mm 142 mm C/A glue. Aluminium brace.

  • Page 19: Elevator Control Horn Installa- Tion

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 20 mm. Secure. Epoxy glue Bottom side Elevator C/A glue.
  • Page 20 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Secure. Plastic parts of elevator and rudder pushrod. Secure. Elevator Elevator pushrod pushrod Bottom side. Elevator pushrod. 2 x8mm Secure. C/A glue.

  • Page 21: Vertical Installation

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Bottom side. VERTICAL INSTALLATION. Rudder Servo. C/A glue. C/A glue. Bottom side. RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the Hinge. way of aileron control horn. Please see pic- tures below.

  • Page 22: Rudder Pushrod Installation

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. 2 x 8mm. Secure. E l e v a t o r control horn. RUDDER PUSHROD INSTALLATION. Rudder pushrod install as same as the way  of aileron pushrod. 2 x 8mm. Rudder pushrod. Secure.

  • Page 23: Mounting The Tail Wheel Bracket

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Mark point. Rudder pushrod. Elevator pushrod. Bottom side. MOUNTING THE TAIL WHEEL BRACKET. Drill a hole      1) Set the tail wheel assembly in place 2mm diameter. on the plywood plate. The pivot point of the tail wheel wire should be even with the rud- der hinge line and the tail wheel bracket should be centered on the plywood plate.

  • Page 24: Installing The Switch

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. C/A glue. Mark line. Bottom side. Remove covering. Top side. INSTALLING THE SWITCH. 1. Cut out the switch hole using a modeling       knife. Use a 2mm drill bit and drill out the two mounting holes through the fuselage side.

  • Page 25: Wing Attachment

    P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Switch. Battery of receiver. Switch of receiver. Switch of engine. Battery of engine. INSTALLING THE RECEIVER AND BATTERY. Tie wrap. 1. Plug the servo leads and the switch       lead into the receiver .
  • Page 26 P- 36A HAWK-Item code BH41. INSTRUCTION MANUAL. Right wing. Secure. Right wing. Secure. bottom side. Left wing. Top side. 3x 15mm. Top side. bottom side. secure.

  • Page 27: Control Throws

          be fully extended and not coiled up inside the fuselage. 6) Properly balance the propeller.       We wish you many safe and enjoy- able flights with your P-36A HAWK...
