Black Horce Model A6M ZERO Instruction Manual Book

Option electric retract gear (not including). only including oleo struts. all balsa - ply wood construction. covered in a heat-shrink film with printed
Hide thumbs
Table of Contents

Advertisement

Quick Links

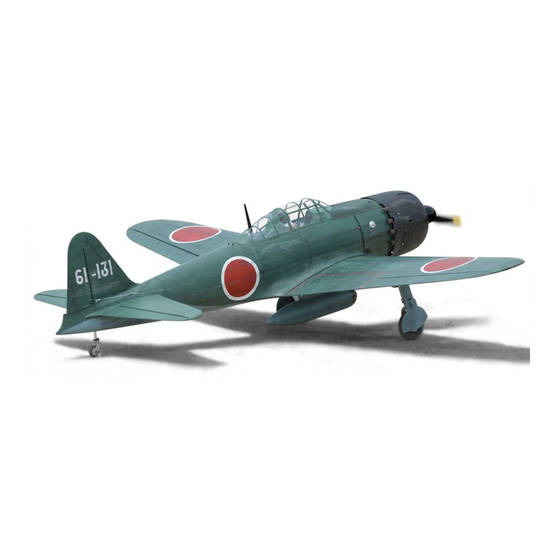

A6M ZERO
OPTION ELECTRIC RETRACT GEAR (NOT INCLUDING).
ONLY INCLUDING OLEO STRUTS.
ALL BALSA - PLY WOOD CONSTRUCTION.
COVERED IN A HEAT-SHRINK FILM WITH PRINTED.
95% ALMOST READY TO FLY
SPECIFICATION:
- Wingspan: 1,720 mm (67.72 in).
- Length: 1,375 mm (54.13 in).
- Weight: 4.4 - 4.6 kg (9.68 - 10.12lbs).
2
- Wing area: 46.5 dm .
- Wing loading: 94.62 g/dm .
- Servo mount: 42mm x 21mm.
- Wing type: Naca Airfoil.
- Spinner: 70mm.
- Gear type: Electric retract gear,
size: (92.2 x 51 x 30.6)mm (not included).
Oleo struts (included).
Instruction Manual Book
2
Item code: BH171.
Parts listing required (not included):
- Radio: 06 channels.
- Servo: 07 servos.
- Engine: 75 - 95
2 strokes; 15 cc gas.
- Motor: Brushless outrunner 1200-2200W, 650KV.
- Propeller: Suit with your engine.
Recommended Motor and Battery set up (not included):
- Motor: RIMFIRE.60.
- Lipo cell: 6 cells 4,000-5,000mAh.
- Receiver battery: 6V/ 800-1200 mAh.
- ESC: 80A.
Glow and EP
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A6M ZERO and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horce Model A6M ZERO

Summary of Contents for Black Horce Model A6M ZERO

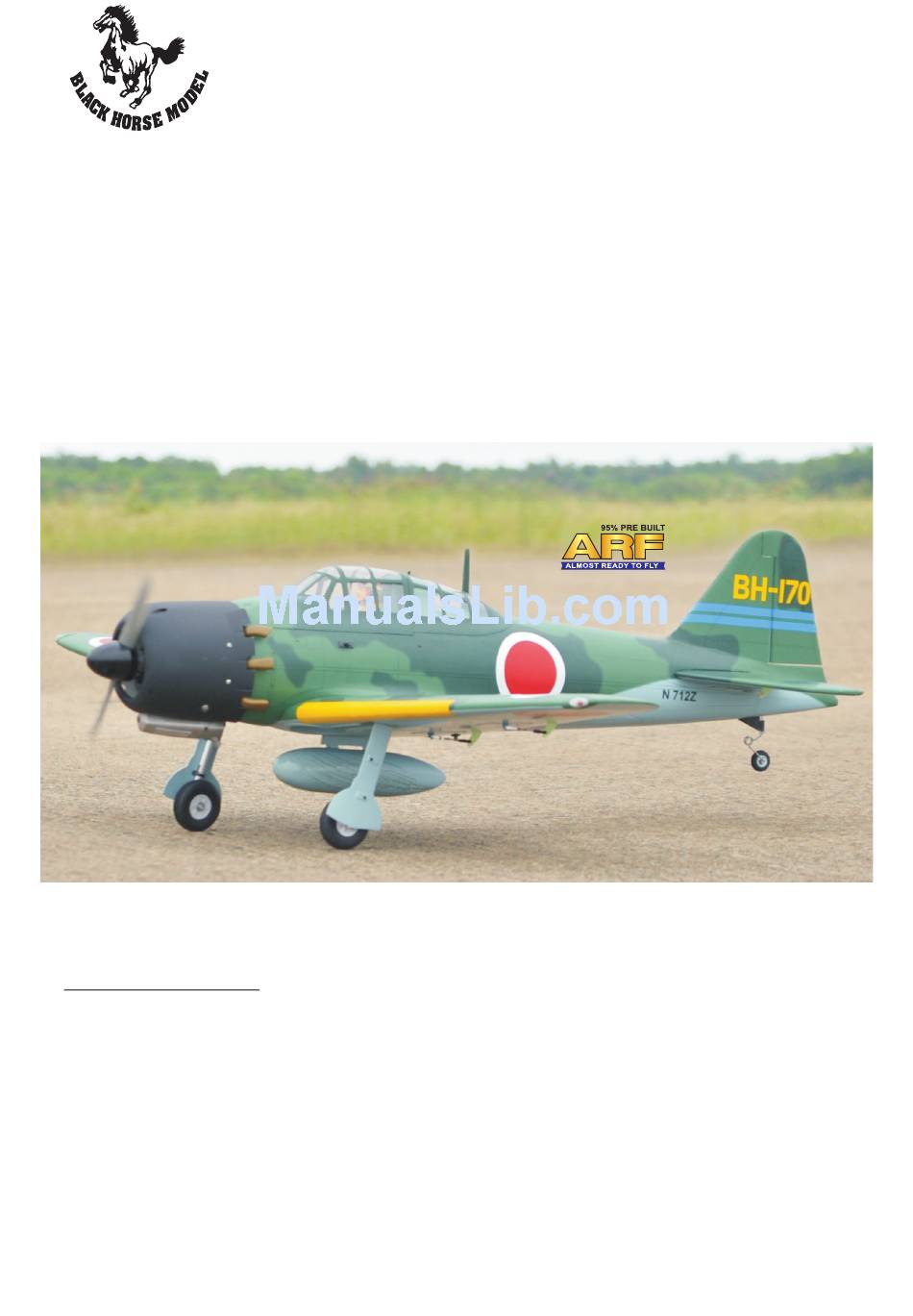

  • Page 1 Instruction Manual Book Item code: BH171. A6M ZERO OPTION ELECTRIC RETRACT GEAR (NOT INCLUDING). ONLY INCLUDING OLEO STRUTS. ALL BALSA - PLY WOOD CONSTRUCTION. COVERED IN A HEAT-SHRINK FILM WITH PRINTED. Glow and EP 95% ALMOST READY TO FLY SPECIFICATION: - Wingspan: 1,720 mm (67.72 in).

  • Page 2: Table Of Contents

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 TABLE OF CONTENTS Symbols used throughout this instruction Installing the Engine ....18 manual, comprise: ......2 Installing the throttle .

  • Page 3: Warranty

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 knowing what you are doing you could easily injure WARRANTY yourself or somebody else. Please keep your safety and well-being in mind at all times. Black Horse Model guarantees the component parts in this kit to be free from defects in both material...

  • Page 4: Parts Listing (Not Included)

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 PARTS LISTING (NOT INCLUDED). Servo extension leads....pcs. Engine: 15cc Gas. 190mm ..2 pcs. Size: (92.2 x 51 x 30.6)mm. Propeller. Suit with your engine. 2 pcs. LiPo. 6S - 22.2V- 4000-5000mAh.
  • Page 5 INSTRUCTION MANUAL A6M ZERO Item code: BH171 : Fuselage Door mounting wheel (12a, 12b) : Wing panel ( 2a, 2b . : Wheel well (13a, 13b). : Horizontal stabilizer. : Main gear struts. : Rudder. : Wheels (85mm). : Cowling.

  • Page 6: W Ing Plastic Light

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 WING PLASTIC LIGHT INSTALLING THE AILERONS AND FLAPS. Bottom view 2) Apply drops of thin CA to the top and bottom of each hinge. Do not use CA accelerator. After the CA has fully hardened, test the hinges by pulling on the aileron.

  • Page 7: Installing The Ailerons And Flaps Servos

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING THE AILERONS AND FLAPS SERVOS through the block of wood for each of the four mounting screws provided with the servo. 4. Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out.

  • Page 8: Installing The Control Horns And Linkages

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 2 x 10mm Screw Warning! - - - - 16 For Aileron. Bottom view 2x10mm Tie the string. Pull out servo cord with string. INSTALLING THE CONTROL HORNS AND LINKAGES. Horn - - - 4 Flaslink 2.2mm...
  • Page 9 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Silicone tube Silicone Tube 2mm Nut Push rod Push rod Flaslink Mark the spot to attach Bend 90 Servo arm...

  • Page 10: Installing The Wheel Well

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Top view INSTALLING THE WHEEL WELL Using a modeling knife, Wheel well carefully remove the film covering from the gear tray. Make sure that you do not remove any wood. Cut the plastic...

  • Page 11: Installing Main Gear

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING MAIN GEAR ELECTRIC NOT INCLUDED. 2 pcs. ELECTRIC GEAR DIMENSIONAL DETAIL (mm) 43.70 30.70 92.20 24.10 21.00 48.50 ONLY INCLUDING OLEO STRUTS. Landing gear mount. 3x15mm Screw - - - - 8...
  • Page 12 INSTRUCTION MANUAL A6M ZERO Item code: BH171 THERE ARE TWO OPTIONS: OPTION 1: MAIN GEAR STRUTS 3x15mm Bottom view 2.5mm Screw...
  • Page 13 INSTRUCTION MANUAL A6M ZERO Item code: BH171 OPTION 2: ELECTRIC GEAR RETRACTS 3x15mm Screw Bottom view 2.5mm Bottom view Screw the gear in position...
  • Page 14 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Bottom view Top view...

  • Page 15: Installing The Fuselage Servos

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING THE FUSELAGE SERVOS 1) Install the rubber grommets and brass collets into the elevator, rudder and throttle servos. Test fit the servos into the servo tray. Trim the tray if necessary to fit your servos.

  • Page 16: Installing The Engine Mount

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING THE ENGINE MOUNT There are two options: 1. Electric motor 2. Engine mount. OPTION 1: INSTALLING THE ELECTRIC MOTOR (EP VERSION) - - - - 4 Mount Nut 10x5mm Aluminum - - - - - 4...
  • Page 17 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Fuselage top side B a t t e 4mm Flat washer 4mm Spring washer 4x70mm Screw 10x50mm 4mm Flat washer...

  • Page 18: Installing The Engine

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 OPTION 2: INSTALLING THE ENGINE Installing the engine mount, fuel tank Engine mount. - - 8 mm Nut Size 60. 4mm Flat washer - - - - - - - - - - 4...
  • Page 19 INSTRUCTION MANUAL A6M ZERO Item code: BH171 7) Using a modeling knife, cut 3 lengths of fuel line. Connect 2 lines to the 2 vent tubes and 1 line to the fuel pickup tube in the stopper. 8) Feed three lines through the fuel tank compartment and through the pre-drilled hole in the firewall.
  • Page 20 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Pushrod Gas 4mm Nut 4x30mm Screw 4mm Spring Washer 125mm Electric Power Pushrod Gas...

  • Page 21: Installing The Throttle

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 3x15mm Screw - - - - 6 3x15mm Screw INSTALLING THE THROTTLE Connector - - - - 1 1) Install one adjustable metal connector through reverse the direction of the servo, using the the third hole out from the center of one servo arm, transmitter.

  • Page 22: Mounting The Cowl

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Adjust the throttle input (transmitter throttle 4x4mm stick), throttle trim movement and the 2x10mm carburattor opening to the suitable position Linkage stopper and screw in the 4x4mm set screw. Screw Pushrod wire Fuselage top side...
  • Page 23 INSTRUCTION MANUAL A6M ZERO Item code: BH171 175mm Cowl area cutout for muffler Cowl area cutout for engine head. 3x12mm Screw - - - - 4 3x12mm Screw...

  • Page 24: Installing Horizontal Stabilizer

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING HORIZONTAL STABILIZER 1) Using a modeling knife, carefully Draw a center line remove the film covering from the tail slots at the rear of the fuselage. Make sure that you do not remove any wood from the slots as this will affect the alignment of the tail.
  • Page 25 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Top side INSTALLING THE CONTROL HORNS AND LINKAGES. Silicone tube Silicone Tube 2mm Nut - - - 2 Push rod - - - 2 2mm Nut 800mm Push rod - - 2 Horn 100mm Push rod 2.2mm...
  • Page 26 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Bottom side. Servo arm Push rod Bend 90 Flaslink Secure. Elevator pushrod Flaslink Horn Elevator servo Fuselage top side Elevator servo Elevator pushrod...

  • Page 27: Installation The Tail Gear

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING THE TAIL GEAR 3mm Colar - - 2 3x15mm Screw - - - - - 2 Bottom side. 3x15mm Screw Secure 2.5mm 3mm Colar...

  • Page 28: Installing The Rudder

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLATION THE RUDDER Hinges for Rudder are glued the same way as the aileron before (see page 6). Top side. Horn...
  • Page 29 INSTRUCTION MANUAL A6M ZERO Item code: BH171 INSTALLING THE CONTROL HORNS AND LINKAGES. Silicone tube 2mm Nut Silicone Tube - - - 1 2mm Nut Push rod - - - - - - 800mm Push rod Flaslink 2.2mm - - - - - - 1...

  • Page 30: Installing The Switch, Receiver And Battery

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Rudder servo Horn Rudder pushrod Flaslink Fuselage top side Rudder servo Rudder pushrod Zip tie INSTALLING THE SWITCH, RECEIVER AND BATTERY INSTALLING THE SWITCH 1) Plug the servo leads and the switch lead into the receiver.

  • Page 31: Installing Cockpit Fuselage

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Fuselage top side Switch Rudder servo Throttle servo Battery Engine Battery Receiver Elevator servo Zip tie Receiver Switch Switch INSTALLING COCKPIT FUSELAGE Position the canopy so the rear frame on the canopy is aligned with the rear edge of the cockpit opening.
  • Page 32 INSTRUCTION MANUAL A6M ZERO Item code: BH171 Open/Close Open/Close Adhesive tape. Adhesive tape.

  • Page 33: Installing The Wing To The Fuselage

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Adhesive tape. INSTALLING THE WING TO THE FUSELAGE 19x418mm Aluminium tube. *** Test fit the aluminium tube dihedral brace into each wing - - - - 1 haft. The brace should slide in easily. If not, use 220 grit sand around the edges and ends of the brace until it fits properly.

  • Page 34: Installing The Spinner, Propeller

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 Main wing must be inserted and attached completely before fixing with screw. Screw for main wing fixture. Main wing must be inserted and attached completely. INSTALLING THE SPINNER, PROPELLER * Install the spinner back-plate, propeller and spinner cone. The spinner cone is held in place using two screws.
  • Page 35 INSTRUCTION MANUAL A6M ZERO Item code: BH171 3x12mm Screw...

  • Page 36: Balancing

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 2) If one side of the wing fall, that side is heavier BALANCING than the opposite. Add small amounts of lead weight to the bottom side of the lighter wing half's It is critical that your airplane be balanced wing tip.

  • Page 37: For Your Radio Installation Basic Connection For Airplane And Adjustment Of Servos

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 FOR YOUR RADIO INSTALLATION BASIC CONNECTION FOR AIRPLANE AND ADJUSTMENT OF SERVOS Example of connection For more information, refer to radio system instruction manual. Follow instruction manual of Engine and Battery. Aileron Servo...

  • Page 38: Main Gear Dimensional Detail

    INSTRUCTION MANUAL A6M ZERO Item code: BH171 MAIN GEAR DIMENSIONAL DETAIL MAIN GEAR STRUTS LANDING GEAR MOUNT. 31mm 44mm 53mm 28mm 1.5mm hold 5.1mm hold 25mm 2.5mm hold 35mm...
  • Page 40 I/C FLINGT WARNINGS Always operate in open areas, away from NEVER fly near power lines,aerials or ALWAYS adjust the engine from behind factories, hospitals, schools, buildings other dangerous areas including airports, the propeller, and do not allow any part of and houses etc.
  • Page 41 I/C FLINGT GUIDELINES Operate the control sticks on the ALWAYS land the model INTO When ready to fly, first extend transmitter and check that the the wind, this ensures that the the transmitter aerial. control surfaces move freely and in model lands at the slowest possible the CORRECT directions.
