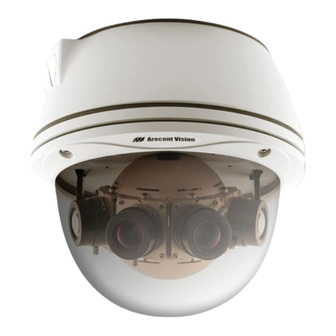

- Page 1 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual 0 | P a g e...
- Page 2 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 Color or Day/Night SurroundVideo Installation Manual Inside the box: Mounting the Camera: ® Arecont Vision SurroundVideo camera Mounting template Remove camera and hardware from the box. C. RJ45 female to female coupler D.
- Page 3 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual If using in-ceiling mount, please use #2 Phillips head screwdriver to loosen the four In-Ceiling Mount (4) machine screws (Image 3) and remove in- ceiling mount housing from surface mount housing.
- Page 4 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Connecting External Power: (Optional) If the camera is powered by an outside power If you are using the side conduit opening on supply, 12~48VDC or 24VAC, connect the the surface mount, remove the conduit plug power cable shown in Image 8.
- Page 5 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Connecting Digital I/O: (Optional) Connecting Heater and Blower : (-HB Version only) To use digital I/O, connect the I/O cable shown in image 8. To run the heater and blower shown in Image 8, connect heater &...
-
Page 6: Wood Screws
® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Adjusting Tilt, Pan and Focus: Align the holes in the camera with the Power on camera to adjust tilt, pan and focus. prepared holes on the mounting surface. Attach the camera with in-ceiling mount... - Page 7 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual To adjust the tilt, use a #2 Phillips screwdriver to loosen both screws on the sides of the plastic gimbal bracket 1/4 turn (Image 15 and 16). CAUTION: Do not remove the screws! Adjust lens tilt as required and tighten the screws from step 13 shown in image 17.
-
Page 8: Set Screws
® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Adjusting Each Sensor Tilt : ( 360° Version only) Day/Night Switcher ( DN version) or NOTE: Each sensor tilt angle can be adjusted IR Cut Plug ( Color version) by +/- 10°... - Page 9 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Pendant Mount SV-CMT Installation Instructions Inside the box: Pendant pole Top shield C. Pendant Mount* D. One double sided hex key Pack of four (4) wood screws and four (4)
- Page 10 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Wall Mount SV-WMT Installation Instructions Inside the box: Top shield Wall mount C. One double sided hex key D. Pack of four (4) wood screws and four (4)
- Page 11 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Flush Mount Adapter Installation Instructions In-Ceiling mount Inside the box: Flange White Trim Ring Plate Flange Plate C. Top Plate D. Mounting template Pack of six (6) set screws, three (3)
- Page 12 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Using the Mounting template, cut a hole in Support surface for mounting. Insert Flush Mount Adapter into the hole. Lever Screw the “lever screws” until the flush mount Screw is snuggly installed, as shown in Image 31.
- Page 13 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Pole Mount Adapter AV-PMA Installation Instructions Inside the box: NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit Pole Mount Adapter pipe and junction box adapter.
- Page 14 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Corner Mount Adapter AV-CRMA Installation Instructions Inside the box: Run the Ethernet cable and outside power cable (if necessary) through the Junction Box Corner Mount Adapter Adapter and SV-WMT, Wall Mount Adapter.
- Page 15 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Electrical Box Adapter MV-EBA Installation Instructions Inside the box: Electrical Box Adapter Pack of four (4) machine screws Not included but needed: #2 Phillips head screw driver ...
- Page 16 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Junction Box Adapter SV-JBA Installation Instructions Inside the box: Junction Box Adapter Pack of four (4) machine screws C. One double sided hex key D. Pack of four (4) wood screws and four (4)
- Page 17 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual ® H.264 SurroundVideo Electrical Box Adapter SV-EBA Installation Instructions Inside the box: Attach Electrical Box Adapter to Electrical Box. Electrical Box Adapter Attach Dome to Electrical Box Adapter as shown in Image 46 .
-
Page 18: Important Note
® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Important Note How to correctly install SurroundVideo® on a ROUGH surface wall Correct Installation: Please connect ¾” NPT conduit pipe to junction box How to correctly install MegaDome® 2 on a ROUGH surface wall adapter as shown in Image 47 and install the ®... - Page 19 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Inappropriate Installation: ® Attaching the SurroundVideo directly onto a ROUGH wall surface or without connecting ¾” NPT Conduit to Junction Box Adapter may result in NOTE: Water damage from improper...
-
Page 20: Installation Best Practices
® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual Installation Best Practices Adding Teflon thread sealing Wind Vinyl electrical Begin Installation tape on all cables tape to all male threads Connect ¾” NPT conduit pipe to junction box adapter... - Page 21 ® Arecont Vision H.264 Color or Day/Night SurroundVideo Series Installation Manual 20 | P a g e...
