Summary of Contents for Martin Juggler
- Page 1 Juggler user manual...

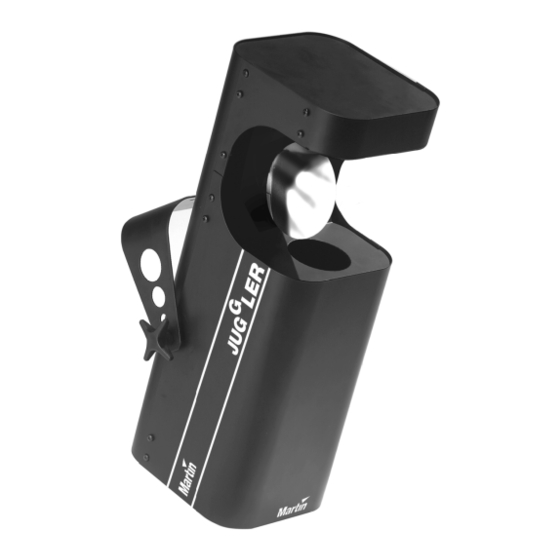

- Page 3 AC input & main fuse Thank you for selecting the Martin Juggler. This lighting fixture uses a 250 watt halogen lamp, a moving mirror, an 18-position color/gobo wheel, and a built-in microphone to project exciting effects automatically in time with the music.
-
Page 4: Afety Precautions
AFETY PRECAUTIONS The Juggler is not for household use. It is not a toy: it presents risks of serious injury due to electric shock, high heat, and intense light. For safe operation, read this manual before using the fixture and observe all warnings and precautions printed here and on the fixture. - Page 5 L A M P I N S T A L L A T I O N The Juggler is shipped with a Philips 24V/250W ELC 500 hour halogen lamp installed. When replacing the lamp, use only one of the compatible lamps listed on page 10.
- Page 6 I N S T A L L A T I O N The Juggler can be permanently installed or hung with a clamp (not included), or it can be placed on the floor as described below. For maximum lamp life, do not place the fixture directly on or beside a speaker cabinet or other source of strong vibrations.
- Page 7 Verify that the clearance around the air vent and lamp access plate is at least 0.1 meters (4 in.). To use the br acket as a floor stand The Juggler may be placed on the floor by standing it squarely on the mirror end or with the support of the mounting bracket.
- Page 8 Important! Electric dimmers may damage the electronic components. The Juggler’s operating voltage is printed on the serial number label near the AC input. Verify that the operating voltage closely matches the AC supply voltage before applying power.
-
Page 9: Troubleshooting
ERVICE There are no user-serviceable parts inside the Juggler. Please refer all service to a Martin distributor, dealer, or service center. To replace the main fuse 1 Unplug the mains cable from the input socket. Pry open the fuse holder and remove the fuse. -
Page 10: Specifications
• Minimum clearance around fan and air vents........0.1 m (4 in) CCESSORIES • Martin DMX Switch Pack, 210-245 V ........... 90758200 • Martin DMX Switch Pack, 100-130 V ........... 90758300 • Osram 24V/250W ELC 50 h halogen lamp ..........97000104 •...
