NOTE: Completely remove the system tray from the chassis
before attempting to remove or replace the component on the
system board.

Installing a memory module

The system has two DIMM slots that support up to 8 GB maximum
system memory (4 GB in each of the two DIMM slots).

Memory installation guidelines

Observe the following important guidelines when installing memory
modules:
Use only HP supported unbuffered ECC DDR3 DIMM in 1 GB,
•
2 GB or 4 GB DIMM capacities.
• For optimal performance, all DIMMs installed must be of the same
speed.

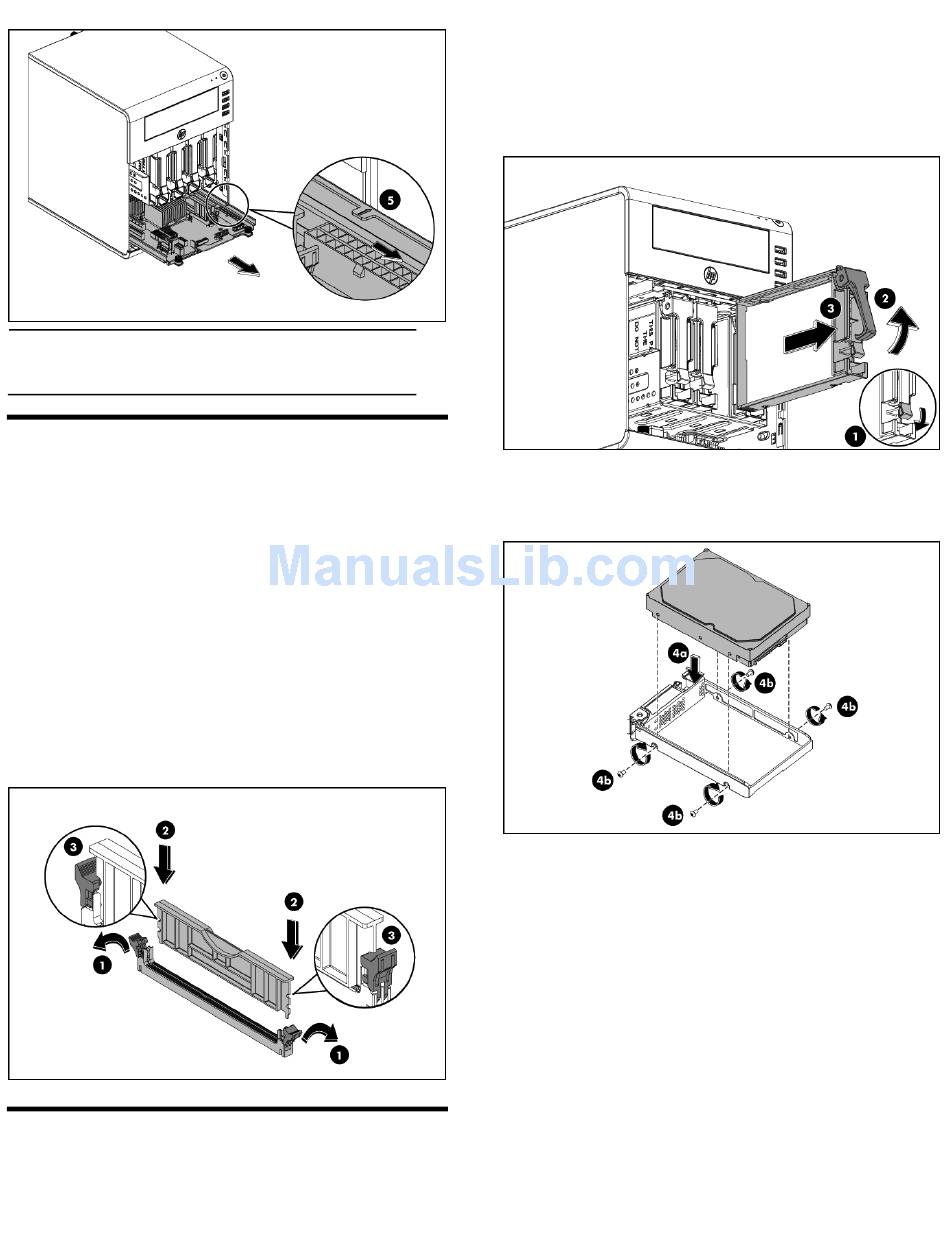

1. Completely open the holding clips securing the module.
2. Align the notch on the bottom edge of the module with the keyed
surface of the DIMM slot and then press the module fully into
the slot.
3. Lock the holding clicks to secure the memory module in place.

Installing a hard drive

The server has four 3.5" hard disc drive bays that support non-hot-plug
SATA drives. The basic system comes with one single hard drive. The
type and capacity of drives vary based on the server model.

Hard drive installation

1. Press the hard disk carrier latch to release the handle.
2. Lift the handle.
3. Use the handle to pull the hard disk carrier out of the hard disc
drive bay.
4. Install the new hard drive:
4a. Align the new hard drive on the carrier.
4b. Secure the hard drive assembly with four mounting screws.
5. Install the new hard drive assembly in the chassis:
5a. Insert the new hard drive assembly in the hard disc drive bay.
5b. Lock the hard disc drive carrier handle.
5
