Installing The Optical Disc Drive - HP ProLiant MicroServer Installation Sheet

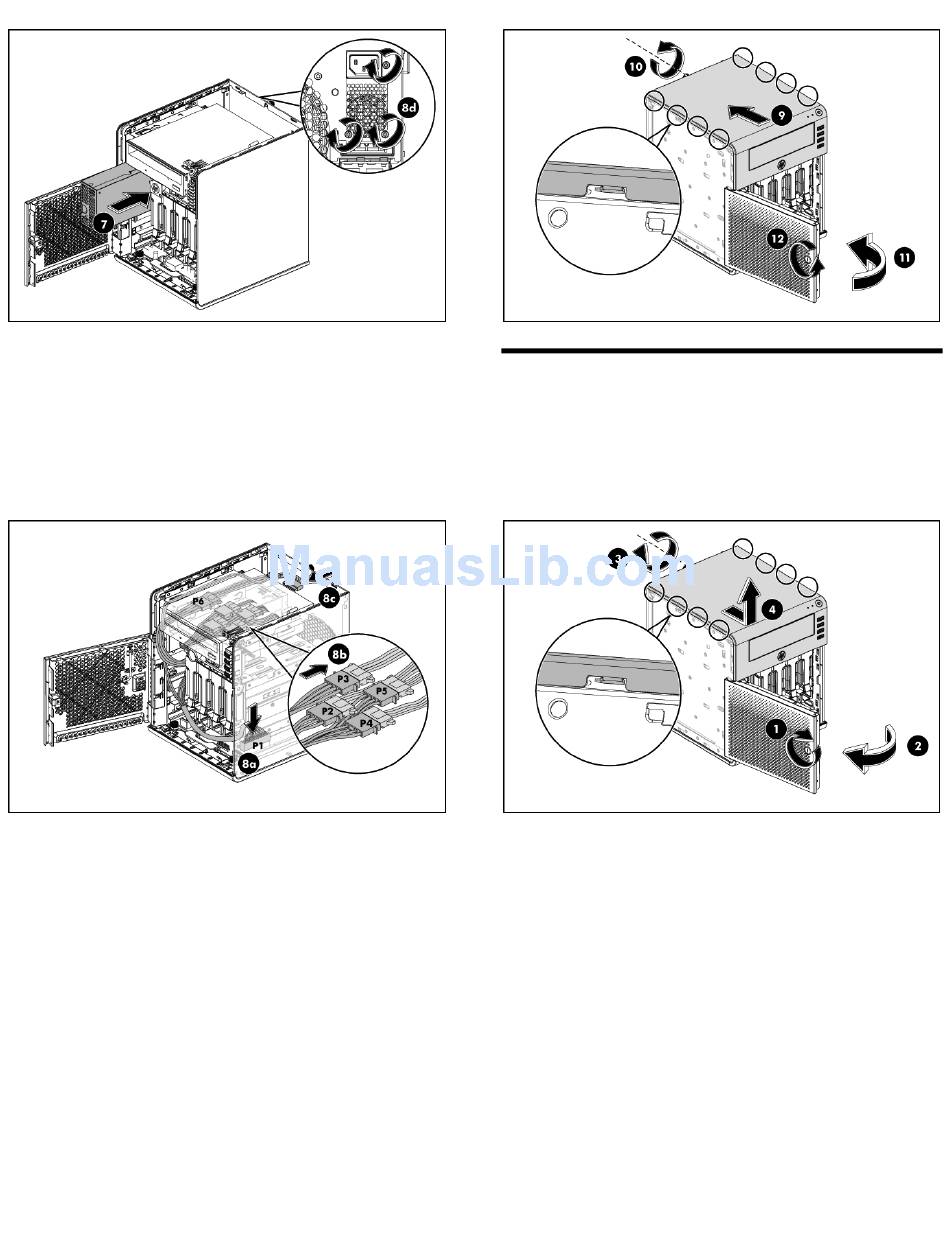

8. Connect the power cables:
8a. Connect the power cable P1 to the 24-pin power connector
on the system board (J12).
8b. Connect the power cable P2, P3, P4, P5 to Hard drive 1,
Hard drive 2, Hard drive 3, Hard drive 4.
8c. Connect the power cable P6 to the ODD and connect the
ODD cable.
8d. Fasten the three screws on the back of chassis to secure the
power supply unit (see the above picture).
9. After installing the power supply and connecting the power
cables, slide the top panel to reinstall it into the chassis.
10. Fasten the back screw to secure the top panel on the chassis.
11. Close the front panel door of the server.
12. Use the HP ProLiant MicroServer's key to lock the panel door.

Installing the Optical Disc Drive

1. Use the HP ProLiant MicroServer's key to unlock the panel door.
2. Open the panel door of the server. If necessary, remove any
components or cables that prevent access to the slot.
3. Loosen the back screw which locks the panel on the chassis.
4. Slide the top panel forward and then lift to remove it from the
chassis.
5. Install the ODD module into the chassis:
5a. Use the 4 screws to secure the ODD.
5b. Slide the ODD module into the chassis.
5c. Push the ODD (in the direction shown below) until it clicks
into place.
7
