QuickSpecs
Overview

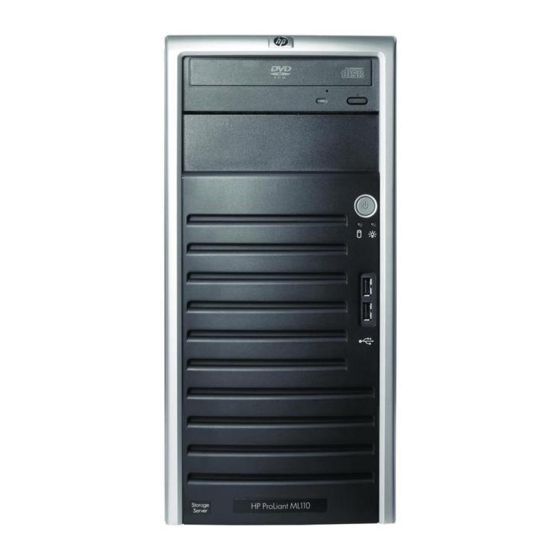

Front View:
Front View:
Front View:
Front View:
1.
DVD-ROM Drive
2.
Power LED
3.
Drive Activity LED
4.
Front Bezel
5.
SAS Cable (SAS model only)
6.
Hard Drive Controller Card (Optional)
7.
System Board
8.
HP ProLiant 100 G5 Lights-Out 100c Management Card
Port (Optional)
9.
System Fan
10.
365W Power Supply
What's New
What's New
What's New
What's New
Support for Quad-Core and Dual-Core Intel® Xeon® processors 3300 and 3100 sequence
Support for SAS Enterprise (ENT) Non-Hot Plug Hard Drives
DA - 12867
North America — Version 14 — September 15, 2008
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
HP ProLiant ML110 Generation 5 (G5)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Rear System fan
2.
PCI Slot Cover Retainer
3.
PCI Slot Covers
4.
HP ProLiant 100 G5 Lights-Out 100c Management Card
Port (Optional)
5.
LAN Port (RJ-45)
6.
Rear USB 2.0 Ports
7.
Serial Port
8.
VGA Port
9.
PS/2 Keyboard Port
10. PS/2 Mouse Port
11. Power Supply Outlet
12. Power Supply Unit (PSU) Fan
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant ML110 G5

Summary of Contents for HP ProLiant ML110 G5

  • Page 1 Power LED Drive Activity LED Front Bezel SAS Cable (SAS model only) Hard Drive Controller Card (Optional) System Board HP ProLiant 100 G5 Lights-Out 100c Management Card Port (Optional) System Fan 365W Power Supply What's New What's New What's New What's New Support for Quad-Core and Dual-Core Intel®...
  • Page 2 Warranty Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair are available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.

  • Page 3: Standard Features

    NOTE: NOTE: NOTE: details. DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) North America — Version 14 — September 15, 2008...
  • Page 4 Width Width Width Width 32-bit North America — Version 14 — September 15, 2008 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) Device Device...
  • Page 5 3.0TB (4 x 750GB) 1.8TB (4 x 450GB) 8 total (4 rear, 2 front panel, 2 internal (one for USB Tape connectivity)) NOTE: Internal USB ports are optimal for the attachment of HP USB DAT NOTE: NOTE: NOTE: Tape Drives...
  • Page 6 ProLiant 100 Series Easy Set-up CD ship standard with the ML110 G5. It offers essential single-server deployment tools for HP ProLiant 100 series servers that simplify HP entry server setup, providing a repeatable way to deploy reliable and consistent single-server configurations. The HP ProLiant Easy Set-up CDs assist with the OS installation process by preparing the system for installing "off-the-shelf"...
  • Page 7 Netware NOTE: NOTE: NOTE: NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/supportos. DA - 12867...
  • Page 8 Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
  • Page 9 FSB, 6MB) 6MB (2 x 3MB) Level 2 cache 512 MB PC2-6400 ECC (DDR2-800MHz) (1 x 512 MB) HP Embedded 6 Port SATA Controller with Embedded RAID (4 ports for HDD) 160GB SATA HDD Non-Hot Plug SATA: Maximum 3.0TB (4 x 750GB) SATA...
  • Page 10 FSB, 4MB) 4MB (1 x 4MB) Level 2 cache 1 GB PC2-6400 ECC (DDR2-800MHz) (1 x 1GB) HP SC40Ge Host Bus Adapter with RAID 0, 1 support 72GB SAS HDD Non-Hot Plug SAS: Maximum 1.8TB (4 x 450GB) SAS 16x SATA DVD-ROM Micro ATX Tower (4U) North America —...

  • Page 11: Smart Buys

    (1) Dual-Core Intel Core 2 E4400 (2.0 GHz, 800 FSB, 2M) 1x2 MB Level 2 cache 1 GB PC2-6400 ECC (DDR2-800Mhz) (1 x 1GB) HP Embedded 6 Port SATA Controller with embedded RAID (4 ports for HDD) (1) 160GB SATA 7.2K 3.5"...
  • Page 12 (1) Dual-Core Intel® Core 2 Processor E4600 (2.40 GHz, 65W, 800 FSB, 2 MB Level 2 cache 1 GB PC2-6400 ECC (DDR2-800Mhz) (1 x 1GB) HP Embedded 6 Port SATA Controller with embedded RAID (4 ports for HDD) (1) 160GB SATA 7.2K 3.5"...

  • Page 13: Configuration Information-Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are NOTE: NOTE: NOTE: ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. NOTE: NOTE: NOTE: NOTE: HP does not allow factory integration of options into standard models listed above.
  • Page 14 SATA Non-Hot Plug Midline (MDL) Drives SATA Non-Hot Plug Midline (MDL) Drives SATA Non-Hot Plug Midline (MDL) Drives HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD...
  • Page 15 Step 3: Choose Additional Factory Integratable Options Step 3: Choose Additional Factory Integratable Options Storage Controller Storage Controller Storage Controller Storage Controller HP SC40Ge Host Bus Adapter, FIO Communications Communications Communications Communications Agere 2006 PCI Hi-Speed 56K Modem, FIO Operating Systems...
  • Page 16 SATA Non-Hot Plug Midline (MDL) Drives SATA Non-Hot Plug Midline (MDL) Drives SATA Non-Hot Plug Midline (MDL) Drives HP 750GB 3G SATA 7.2K NHP 3.5" MDL HDD HP 500GB 3G SATA 7.2K NHP 3.5" MDL HDD HP 250GB 3G SATA 7.2K NHP 3.5" MDL HDD...
  • Page 17 NOTE: SAS Storage Controllers supports both SATA and SAS drives. NOTE: NOTE: NOTE: NOTE: On SATA models with embedded RAID, setup instructions are located in the User Guide. CTO RAID set-up is not available. HP ProLiant ML100 Series Server User Guide: http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00260539/ c00260539.pdf Communications...
  • Page 18 LTO Ultrium SAS Tape Drives LTO Ultrium SAS Tape Drives HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive for HP ProLiant HP D2D Backup System HP D2D Backup System HP D2D Backup System...
  • Page 19 Remote Management Remote Management HP ProLiant ML100 G5 Lights-Out 100c Remote Management Card NOTE: NOTE: NOTE: Supports HP ProLiant DL180 G5, ML110 G5, ML115 G5 and ML150 G5 NOTE: servers, NOTE: For additional information on Lights-Out 100c Remote Management Card, NOTE:...

  • Page 20: Service And Support, Hp Care Pack, And Warranty Information

    QuickSpecs Service and Support, HP Care Pack, and Warranty Information Service and Support Service and Support Service and Support Service and Support Hardware Services Next Business Day On-Site Service Hardware Services Next Business Day On-Site Service Hardware Services Next Business Day On-Site Service...
  • Page 21 8 GB 8 GB 8 GB 8 GB Following are memory options available from HP: Following are memory options available from HP: Following are memory options available from HP: Following are memory options available from HP: 2 GB Unbuffered PC2-6400 ECC DIMM (1 x 2 GB)

  • Page 22: Drive Support

    Hard Drives (SAS Models only) Hard Drives (SAS Models only) Hard Drives (SAS Models only) DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) 16x SATA DVD-ROM Removable Media Bays (5.25"...
  • Page 23 HP ProLiant ML110 Generation 5 (G5) Position Position Position Position Supported Supported Supported Supported Controller Controller Controller Controller 3,4,5,6 HP 4 Internal Port SAS HBA SC40Ge with RAID (0,1) Position Position Position Position Supported Supported Supported Supported Controller Controller Controller Controller 3,4,5,6 HP 4 Internal Port SAS HBA SC40Ge with RAID (0,1) 3.0TB (4 x 750GB)
  • Page 24 Backup Systems Backup Systems D2D120 D2D130 DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP SC11Xe Host Bus Adapter USB 2.0 Port Embedded Network Controller North America —...

  • Page 25: Power Specifications

    North America — Version 14 — September 15, 2008 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) >65%...

  • Page 26: System Specifications

    QuickSpecs System Specifications HP ProLiant ML110 G5 Fully HP ProLiant ML110 G5 Fully HP ProLiant ML110 G5 Fully HP ProLiant ML110 G5 Fully Configured Configured Configured Configured Fully Loaded System output Wattage Fully Loaded System Input Current (A rms) Fully Loaded System Thermal (BTU- Hr) 1915BTU...

  • Page 27: Technical Specifications

    Altitude Altitude Altitude DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) 14.5 x 6.9 x 16.8 in (36.7 x 17.5 x 42.6 cm) Maximum 39 lb (17.5 kg)
  • Page 28 (EMC) (EMC) (EMC) (EMC) DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
  • Page 29 72GB 15K 3.5" HDD 3.5" HDD 3.5" HDD 3.5" HDD 432095-B21 DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) Capacity Capacity Capacity...
  • Page 30 Data Transfer Method Data Transfer Method Data Transfer Method Data Transfer Method DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) Applicable Disk...
  • Page 31 Upgradeable Firmware Upgradeable Firmware Upgradeable Firmware Upgradeable Firmware DA - 12867 HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) HP ProLiant ML110 Generation 5 (G5) PCI-Express x8 1 x4 Wide SAS Connectors 12 Gb/s per x4 Wide SAS Port (4 x 3 Gb/s) 1.2TB (4 x 300GB)
  • Page 32 Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
