Overview

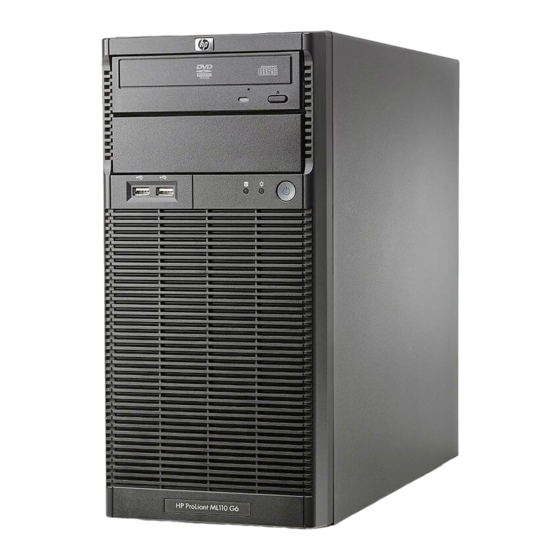

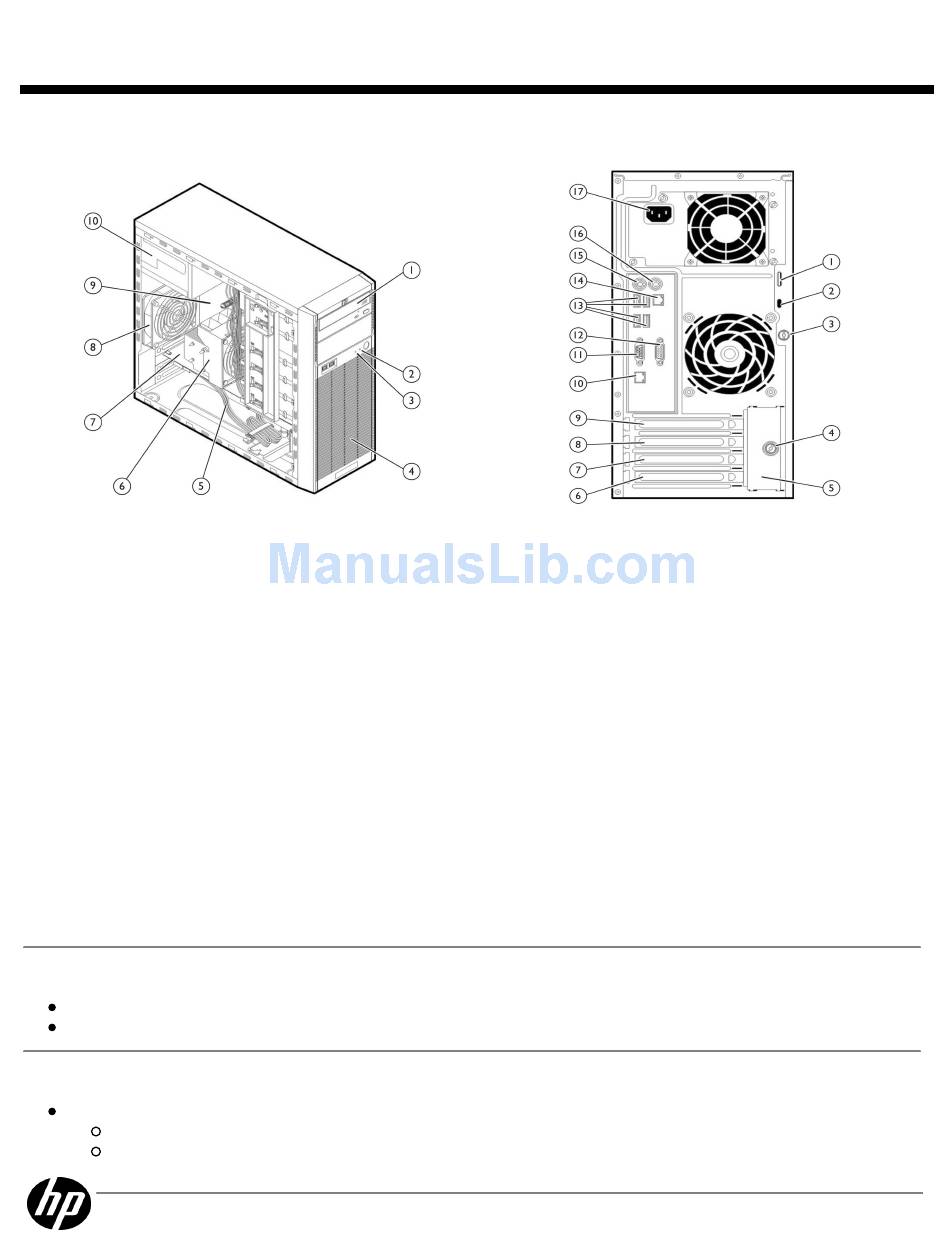

Front View:
Front View:
Front View:
Front View:
1.
DVD-ROM Drive
2.
Power LED
3.
Drive Activity LED
4.
Front Bezel
5.
SAS Cable (SAS model only)
6.
CPU Heatsink
7.
Hard Drive Controller Card (Optional)
8.
System Fan
9.
System Board
10.
300W Power Supply
What's New
What's New
What's New
What's New
Support for 4GB UDIMM
Support for embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/10)
At A Glance
At A Glance
At A Glance
At A Glance
Processor:
Processor
Processor
Processor
Intel® Xeon® processor X3400 series
Intel® Core™ i3 processors
DA - 13477
Worldwide — Version 6 — May 6, 2010
HP ProLiant ML110 Generation 6 (G6)
HP ProLiant ML110 Generation 6 (G6)
HP ProLiant ML110 Generation 6 (G6)
HP ProLiant ML110 Generation 6 (G6)
Rear View:
Rear View:
Rear View:
Rear View:
1.
Kensington lock notch
2.
Cable lock provision notch
3.
Access panel thumbscrew
4.
Expansion slot cover retainer thumb screw
5.
Expansion slot cover
6.
Expansion slot 1
7.
Expansion slot 2
8..
Expansion slot 3
9.
Expansion slot 4
10. Management NIC port (RJ-45)
11. Video port
12. Serial port
13. USB ports
14. Embedded NIC port (RJ-45)
15. PS/2 keyboard port
16. PS/2 mouse port
17. Power supply cable socket
Page 1
Advertisement
Table of Contents
Related Manuals for HP ProLiant ML110 Generation 6 (G6)
Summary of Contents for HP ProLiant ML110 Generation 6 (G6)
- Page 1 17. Power supply cable socket What's New What's New What's New What's New Support for 4GB UDIMM Support for embedded HP Smart Array B110i SATA RAID Controller (RAID 0/1/10) At A Glance At A Glance At A Glance At A Glance Processor...
- Page 2 Warranty Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair are available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.
-
Page 3: Standard Features
QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Standard Features Processor Processor Processor Processor Quad-Core Processors Quad-Core Processors Quad-Core Processors Quad-Core Processors One of the following Intel®... - Page 4 NOTE: NOTE: Support up to four (4) 3.0Gb/s SATA hard disk drives only NOTE: NOTE: NOTE: NOTE: For set up instructions refer to the HP ProLiant ML100 series server user guide at: http://bizsupport1.austin.hp.com/bc/docs/support/SupportManual/c01708878/c01708878.pdf NOTE: NOTE: NOTE: NOTE: For general information about HP Smart Array B110i SATA RAID Controller, go to: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/smartarrayb110i/...
- Page 5 Form Factor Micro ATX Tower (4U) NOTE: NOTE: NOTE: NOTE: Rack mounting available via HP Tower to Rack Conversion Tray, Universal Kit. Please see the options section in this QuickSpecs. Embedded Manageability Embedded Manageability Embedded Manageability Embedded Manageability HP LO100i Advanced...
- Page 6 USB 2.0 Manageability Manageability Manageability Manageability HP Integrated Lights-Out 100i with optional LO100i Advanced Licenses for Virtual KVM and Virtual Media Embedded Lights Out 100 IPMI 2.0 standard reporting Standard HP ProLiant ML110 G6 Easy Set-Up CD Array Configuration Utility (ACU)
- Page 7 NOTE: NOTE: NOTE: NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/supportos and our driver download page http://www.hp.com/support/ML110G6...
- Page 8 Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
- Page 9 QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Standard Features http://www.hp.com/go/proliant/carepack DA - 13477 Worldwide — Version 6 — May 6, 2010 Page 9...
- Page 10 SATA Models SATA Models NOTE: NOTE: NOTE: NOTE: HP NHP Internal SAS/SATA 4 port cable kit (487734-B21) is required when Smart Array Controller is ordered with a BTO configuration NOTE: NOTE: NOTE: NOTE: For general information about HP Smart Array B110i SATA RAID Controller, go to: http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/smartarrayb110i/index.html...
- Page 11 4GB (2x2GB) PC3-10600E DDR3 UB ECC 506668-xx1 Storage Controller Storage Controller Storage Controller Storage Controller HP Embedded 6 Port SATA Controller (4 ports for HDD) HP Embedded Smart Array B110i SATA RAID Controller (RAID 0/1/10) Hard Drive Hard Drive Hard Drive Hard Drive...
-
Page 12: Configuration Information-Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements. - Page 13 SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive 507772-B21 HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard...
-
Page 14: Core Options
SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives SATA Non-Hot Plug LFF (3.5-inch) Midline (MDL) Drives HP 1TB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard Drive 507772-B21 HP 500GB 3G SATA 7.2K rpm LFF (3.5-inch) Non-hot Plug Midline 1y Wty Hard... - Page 15 HP NC360T PCI Express Dual Port Gigabit Server Adapter 412648-B21 HP NC373T PCI Express Multi-function Gigabit Server Adapter 394791-B21 HP NC382T PCI Express Dual Port Multi-function Gigabit Server Adapter 458492-B21 NOTE: NOTE: Please see the QuickSpecs for Technical Specifications and additional...
-
Page 16: Additional Options
HP ProLiant ML110 Generation 6 (G6) Additional Options HP Entry-Level Server HP Entry-Level Server HP Entry-Level Server HP Entry-Level Server HP LO100i Advanced Pack, No Media 1-Server License including 1 year of 24x7 530521-B21 Management Management Management Management Technical Support and Updates... - Page 17 Software Software Software HP Data Protector Express 4.0 SP1 Backup Server BB117BA HP Data Protector Express 4.0 SP1 for Microsoft Small Business Server BB118BA HP Data Protector Express Backup Server 4.0 SP1Upgrade from Data Protector BB117BT Express Single Server Edition...
- Page 18 HP T1000 G3 UPS, NA AF448A HP T1000J UPS, Japan AF457A NOTE: NOTE: NOTE: NOTE: For additional information regarding HP Uninterruptable Power Systems, please see the following URL: www.hp.com/go/rackandpower (Worldwide) NOTE: NOTE: NOTE: NOTE: For additional information on sizing your server, please reference: http://www.upssizer.com...
- Page 19 NOTE: NOTE: NOTE: For the installation of Windows and other OS's, a floppy drive or the HP USB Floppy Drive Key may be required to complete driver installation. A standard USB drive key may not work to complete driver installation.
- Page 20 4 GB 4 GB 4 GB 4 GB 4 GB Following are memory options available from HP: Following are memory options available from HP: Following are memory options available from HP: Following are memory options available from HP: HP Memory...
-
Page 21: Drive Support
QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Storage removable media drive removable media drive SAS/SATA hard drive SAS/SATA hard drive SAS/SATA hard drive... - Page 22 For the complete range of StorageWorks D2D Backup Systems see: http://www.hp.com/go/d2d. For the complete range of StorageWorks RDX drives and media see: http://www.hp.com/go/rdx. For hardware and software compatibility of HP StorageWorks disk and tape backup products see: http://www.hp.com/go/connect.
- Page 23 QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Storage DAT 160 1U Rack-Mount Kit 3U Rack-Mount Kit HP StorageWorks USB HP StorageWorks USB...
- Page 24 QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Storage HP StorageWorks USB HP StorageWorks USB HP StorageWorks USB HP StorageWorks USB External USB 2.0 port...
-
Page 25: Power Specifications
QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Power Specifications Part Number Part Number Part Number Part Number 445067-001 Operational Input Voltage Range... -
Page 26: System Specifications
121565-001 109197-008 NOTE: NOTE: NOTE: NOTE: To review typical system power ratings use the Active Answers HP Power Advisor which is available via the online tool located at URL: http://www.hp.com/go/hppoweradvisor To drill down to calculators: - Click on: "ProLiant Servers"... -
Page 27: Technical Specifications
QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions (HxWxD) 14.38 x 6.9 x 16.8 in (36.52 x 17.5 x 42.6 cm) - Page 28 QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Technical Specifications Acoustic Noise Acoustic Noise Acoustic Noise Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment.
- Page 29 QuickSpecs HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) HP ProLiant ML110 Generation 6 (G6) Technical Specifications HP 250GB 3G SATA HP 250GB 3G SATA HP 250GB 3G SATA HP 250GB 3G SATA...
- Page 30 Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
