Memory Configuration; External Led Indicators - HP ProLiant MicroServer Installation Sheet

Item Designator Description
5 J21 The NMI jumper allows a user to inject a
Non-Maskable Interrupt event into the system.
6 J5 PCIe x16 slot
7 J7 IPMI slot
8 J24 ODD connector
9 J8 Mini SAS connector
10 J33 Internal USB connector
11 B1 Battery
12 J22 Fan connector
13 J20 TPM connector
14 J13 Front USB header 1
15 J14 Front USB header 2
16 J50 Front panel connector
Clear CMOS jumper_ 1-2, Normal
17 J19
Clear CMOS jumper_ 2-3, Clear CMOS
18 J12 24-pin power connector (ATXPWRCN)
19 U1 Processor
20 J3 DDR 3 DIMM slot 1
21 J4 DDR 3 DIMM slot 2

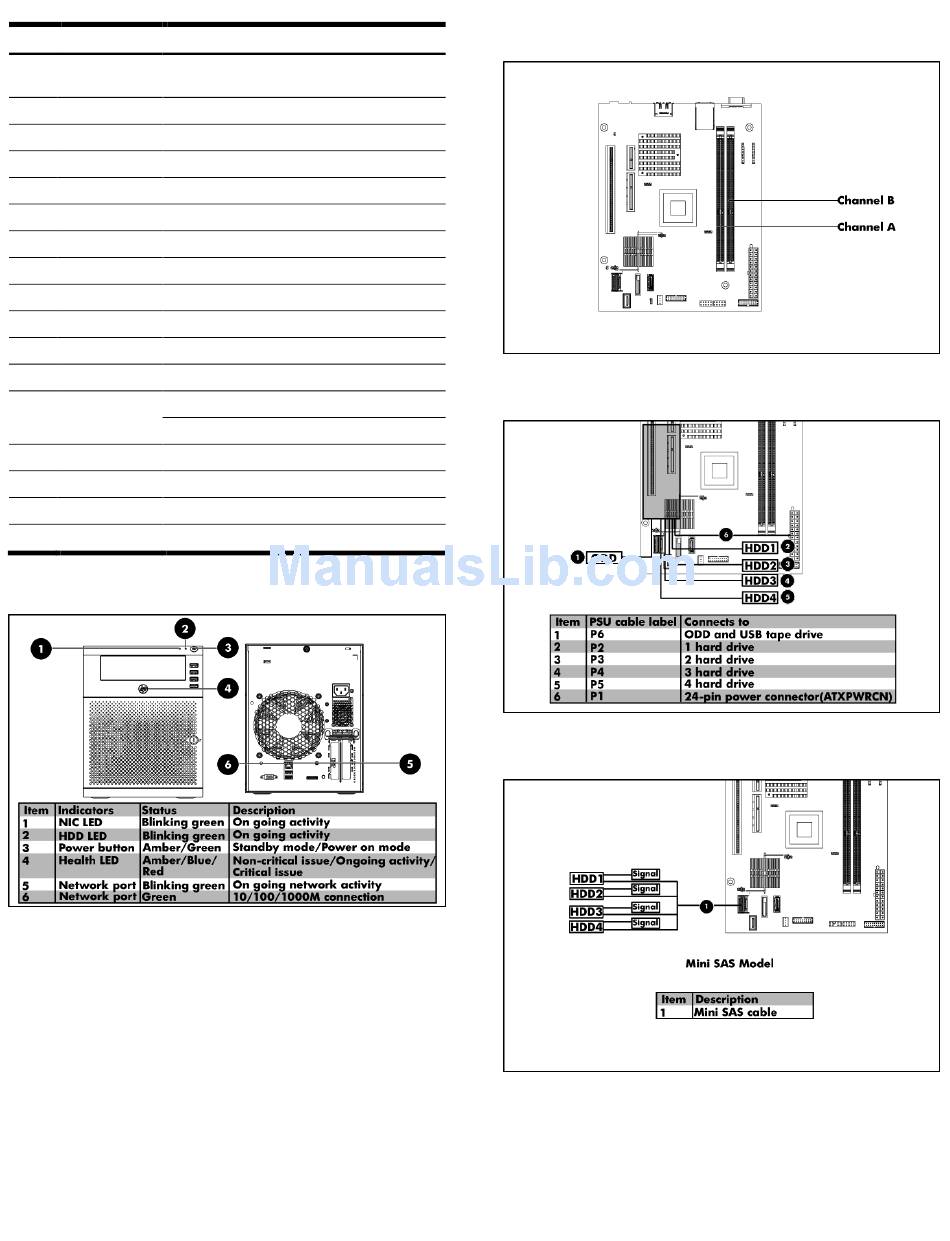

External LED indicators

Memory Configuration

Power Supply Unit Cabling
Mass Storage Cabling
3
