Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
Manual ML38V02A -- Generation 4 -- www.EclipseRackmount.com

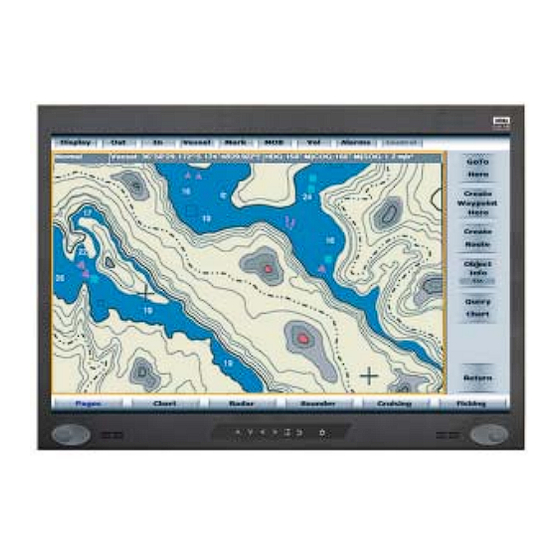

FMP-21
8U 1080p Rackmount Monitor Panel
Options Available:
- SDI / MCS
- BNC / HDMI / Audio
- Touch-Screen / DC Power
- MIL-type or Lockable Connector

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMP-21 and is the answer not in the manual?

Questions and answers

Summary of Contents for CyberView FMP-21

  • Page 1: User Manual

    User Manual FMP-21 8U 1080p Rackmount Monitor Panel Options Available: - SDI / MCS - BNC / HDMI / Audio - Touch-Screen / DC Power - MIL-type or Lockable Connector Designed/Manufactured by Austin Hughes and Distributed by Eclipse Rackmount, Inc.
  • Page 2: Legal Information

    Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
  • Page 3: Table Of Contents

    Contents < Part. 1 > FMP-21 Package Contents Structure Diagram & Dimensions P.1 - 2 Installation P.3 - 4 Specifications / OSD / Remote Controller < Part. 2 > Product Specifications P.5 - 6 On-Screen Display Operation ( OSD ) P.7 - 8...
  • Page 4: Before Installation

    Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
  • Page 5: Part. 1 > Fmp-21

    < Part 1 > < 1.1 > Package Contents FMP-21 FMP-21 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram...
  • Page 6 (W x D x H) Weight Weight 501.9 x 64 x 353 mm 555 x 124 x 537 mm 7.5 kg 10 kg FMP-21 19.8 x 2.5 x 13.9" 21.9 x 4.9 x 21.1" 16.5 lb 22 lb Page 06 -- ML38V02A -- www.EclipseRackmount.com...
  • Page 7: Installation

    < 1.3 > VESA Mount Installation FMP-21 M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided Page 07 -- ML38V02A -- www.EclipseRackmount.com...
  • Page 8 Push the lower part of the FMP-21 display panel into the rear bracket. Step ■ Fix the FMP-21 display panel into the rear bracket with two fasteners ( Left & right side ). Fastener screw ■ Lock the FMP-21 display panel by the latch ( on the bottom left &...
  • Page 9: Product Specifications

    < Part 2 > < 2.1 > Product Specifications FMP-21 Manufacturer Panel Panel Size ( diagonal ) 21.5-inch Widescreen TFT color LCD Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. )
  • Page 10 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 501.9 x 64 x 353 mm Specification 19.8 x 2.5 x 13.9 inch Packing ( W x D x H )
  • Page 11: On-Screen Display Operation ( Osd )

    < 2.2 > On-Screen Display Operation ( OSD ) FMP-21 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control...
  • Page 12 < 2.2 > On-Screen Display Operation ( OSD ) Auto adjust : Automatically adjust sizes, centers and f ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
  • Page 13: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )

    < 2.3 > How to Use Picture In Picture ( PIP ) / FMP-21 Picture By Picture ( PBP ) < 2.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF...
  • Page 14 < 2.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
  • Page 15: Options : 3G / Hd / Sd-Sdi Input

    < Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input FMP-21 The SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberV iew Full HD 1080p and ultra high...
  • Page 16: Part. 3 > Options

    ( Multi-Display Control ) The MCS solution is able to control the OSD of various CyberView LCD displays up to 64 units. The RS-232C is used for the communication between the PC and f rst display via a 15' serial cable, while the CAN bus is used for the LCD displays.
  • Page 17: Av3.0 Upgrade

    < 3.3 > AV3.0 Upgrade Options : FMP-21 - BNC ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio DVI-D Power S-Video HDMI out - in - in Video PC Page 17 -- ML38V02A -- www.EclipseRackmount.com...
  • Page 18 < 3.4 > Options : Touch-Screen & Driver 21.5" USB Touch-Screen Specification Model e-Resistive TMC2 e-Capacitive Multi-touch Technology 5-Wire Resistive Capacitive Projected Capacitive Touch Point Single Single Dual Method Stylus or Finger Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤...
  • Page 19 < 3.4 > Options : Touch-Screen & Driver FMP-21 TMC2 Driver Connect the USB cable from the USB port on the LCD to a computer. The touch-screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer.
  • Page 20: Mil-Type Or Lockable Connector

    < 3.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design f exibility possible.
  • Page 21 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. & Eclipse Rackmount, Inc. All rights reserved. Manual ML38V02A -- www.EclipseRackmount.com...
