System Architecture; Figure 1.7-1: Nfn Web Server Network Architecture - Notifier NOTI-FIRE-NET Installation & Operation Manual

1.7 S
YSTEM
There are three network options for the NFN Web Server:
• Internet or Intranet connection
• Using a dial-up modem
• Direct panel interface to an NFS-640 or NFS-3030
The following diagrams show architecture options for a system using the NFN Web Server.
I /I
NTERNET NTRANET
The NFN Web Server can uses an Internet/Intranet connection via IP over Ethernet.
NWS
NCM-W/F
NOTI•FIRE•NET™
NFN Web Server User's Manual PN 51990:A2 12/02/03
www.PDF-Zoo.com
A
RCHITECTURE
C
ONNECTION
PC Browser
Interface
Internet or
Intranet
FACP
NCS
UniNet®/NFN NION
BACnet Gateway

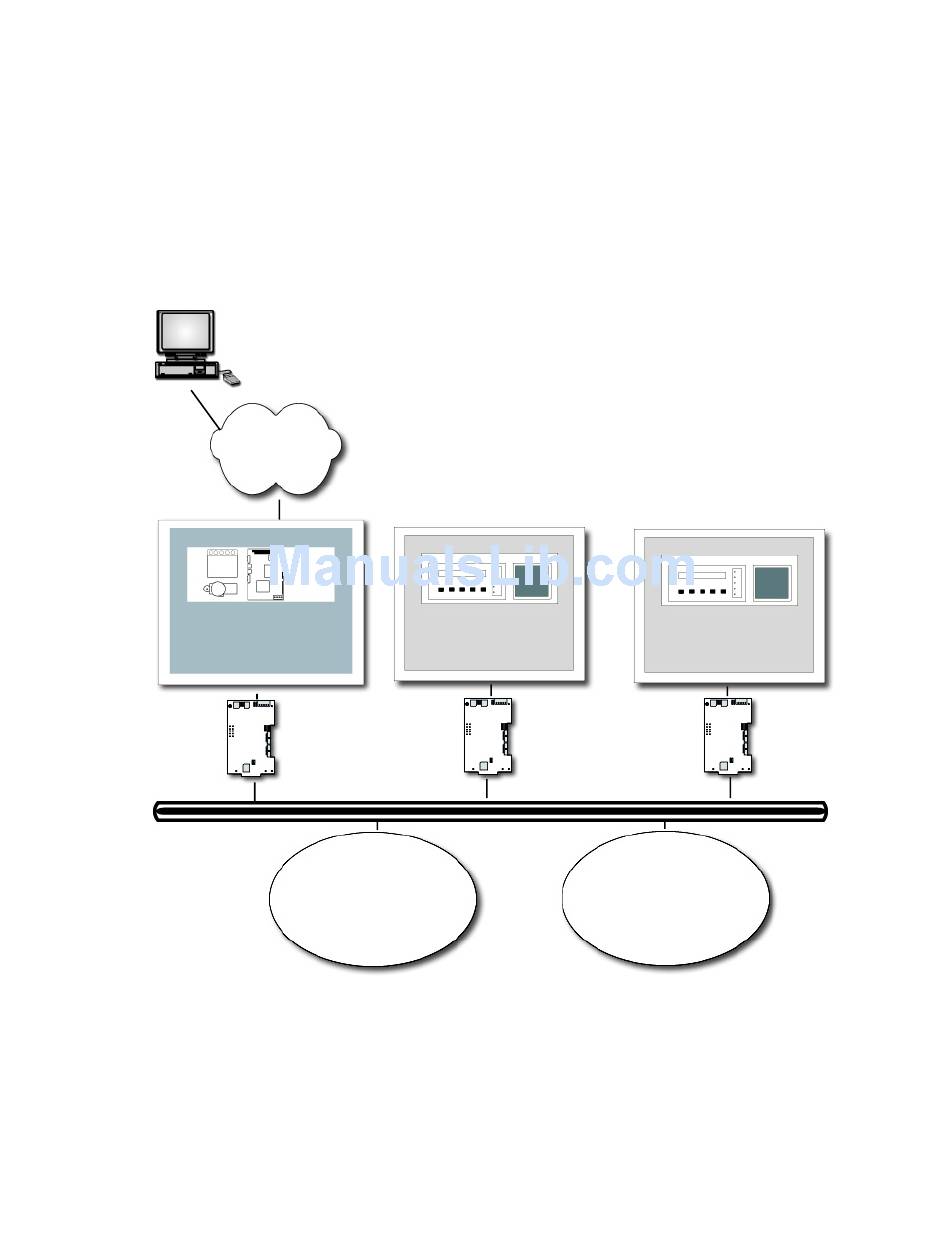

Figure 1.7-1: NFN Web Server Network Architecture

FACP
NCS
UniNet®/NFN NION
BACnet Gateway
9
