The Auto Point Detect feature does not function for the AFP-300/400 panel, as seen on the screen message shown
below.
This lets you know that the Auto
Detect task is currently being
performed.
This line denotes the current
progress of the Auto Detect task.
Once the Auto Detect has been performed, go to the Node Mapping links and make sure that all node numbers that read
"online" are also mapped. Refer to section 4.3.4 Node Mapping for more information.
NFN Web Server User's Manual PN 51990:A2 12/02/03
www.PDF-Zoo.com

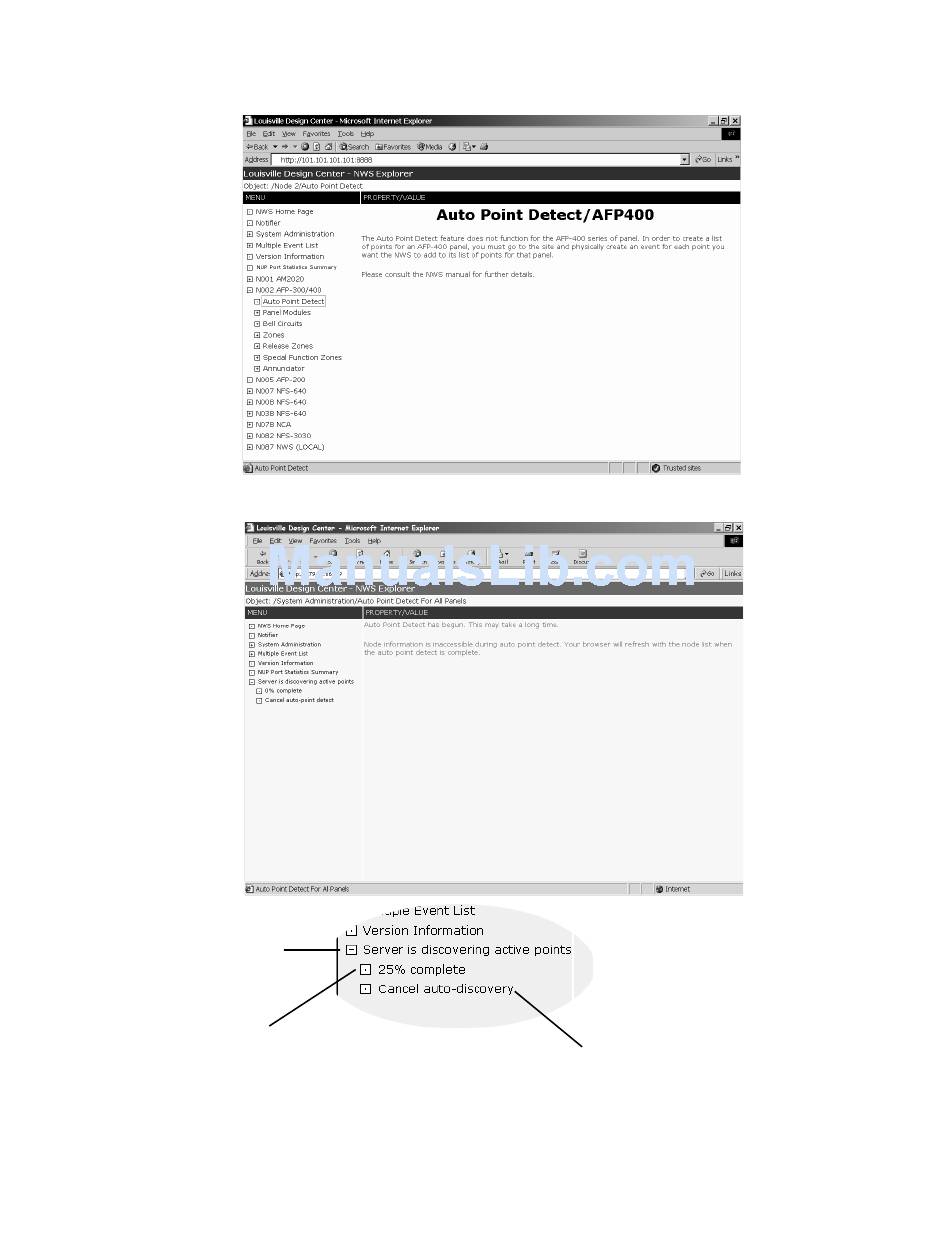

Figure 4.3.1-2: Auto Point Detect AFP400 Message

Figure 4.3.1-3: Auto Detect Screen
This option allows you to cancel
out of Auto Detect if necessary.
31
