Figure 2.5-3: Nws Power Supply Connections For Direct Panel Interfacing - Notifier NOTI-FIRE-NET Installation & Operation Manual

NWS P
OWER
When connecting the NWS directly to an NFS-640 or NFS-3030, make cable connections according to Figure 2.5-3
below.

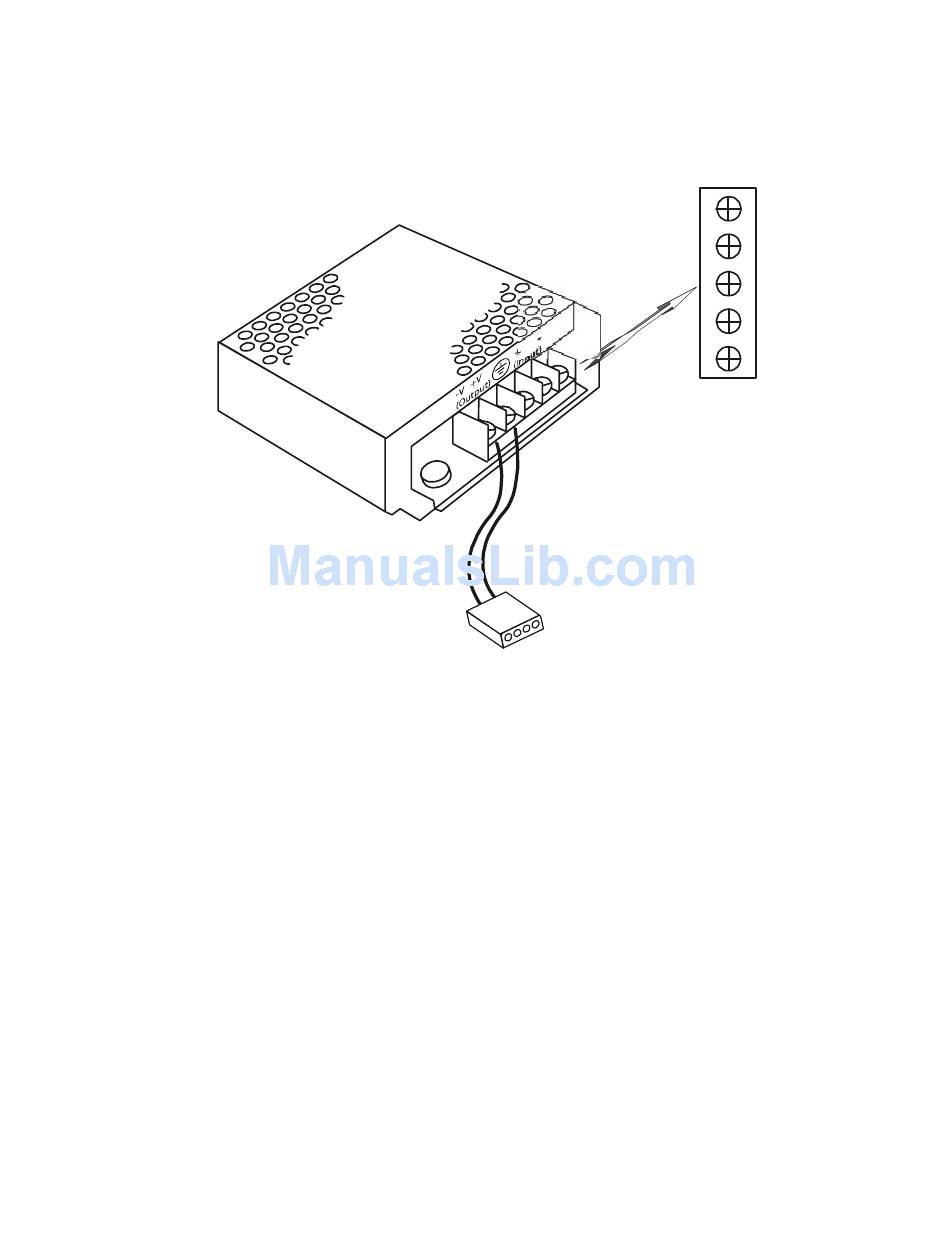

Figure 2.5-3: NWS Power Supply Connections for Direct Panel Interfacing

NFN Web Server User's Manual PN 51990:A2 12/02/03
www.PDF-Zoo.com
S C W
UPPLY ONNECTIONS
P/N 46175
C D
HEN ONNECTING IRECTLY
Red
Black
P/N 75581
To NWS PC Board
Power Connector
T NFS-640 NFS-3030
O THE OR
24V REF Input
+24VDC Input
Earth
+5VDC Output
5V REF Output
