2.8 E
THERNET
This connects the NFN Web Server to the Internet or Intranet. A PNET-1 surge suppressor must be used between the
Web Server PC board and the network. Using the RJ45 cable, plug one end into the PC board and the other into the
square end of the PNET-1. Then, connect another RJ45 cable from the PNET-1 out to the network.
The NFN Web Server can be used as a web-based gateway for communication between NOTI•FIRE•NET™ and
Veri•Fire™ Tools. The Ethernet port on the Web Server computer connects to the Ethernet port on the Veri•Fire™
Tools computer. For details on using Veri•Fire™ Tools with the NFN Web Server, consult the Veri•Fire™ Tools online
help.
To Internet or Intranet
2.9 PC
TO
This connects the NFN Web Server to a PC that has one of the following programming utilities installed on it:
• Serial Configuration Tool (P/N NWS-SW)
• Veri•Fire™ Tools (P/N VERIFIRE-TCD)
This connection is used when configuring the Web Server.
NFN Web Server User's Manual PN 51990:A2 12/02/03
www.PDF-Zoo.com
N C
ETWORK ONNECTION

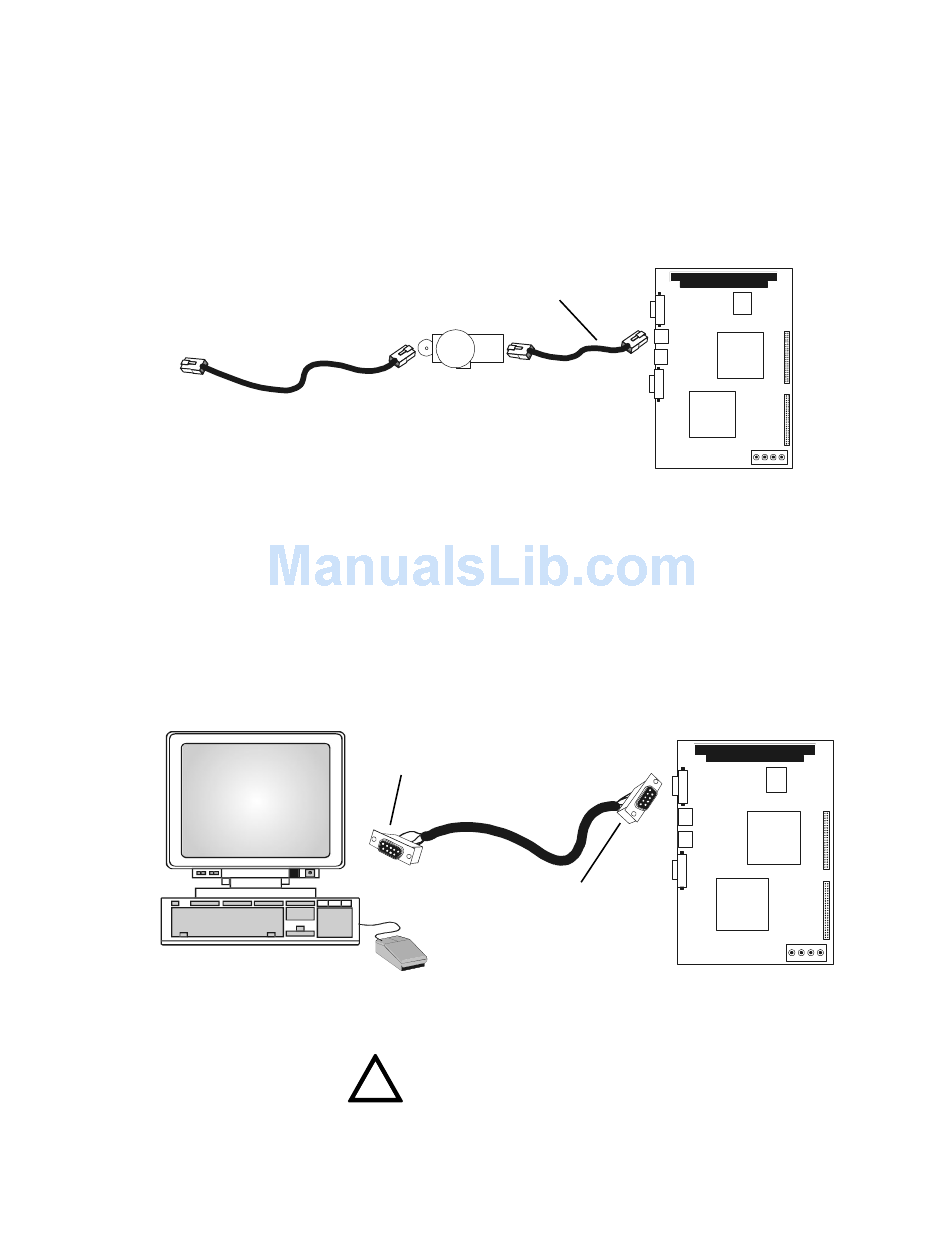

Figure 2.8-1: Ethernet Connection

PC C
ONNECTION
To EIA-232 port on
PC (or laptop)
Figure 2.9-1: PC to PC Serial Connection
!
NFN Web Server
to PNET-1
PNET-1 surge
suppressor
To EIA-232 port on
NFN Web Server PC
Board
NOTES: Cable must be
supplied by customer and must
be a null-modem cable.
NFN Web Server PC Board
