Shore Power Connection - Formula Cruiser Owner's Manual

SYSTEM OPERATION AND EQUIPMENT
MAIN CONTROLS
SHOREPOWER
MAIN #1
ON ON
120V 60HZ AC SYSTEM
MAIN #1
100
50
0
AC VOLTS
MAIN #2
100
50
0
AC VOLTS
1. Slide Cover
2. Transfer Switch
To operate equipment from the right column of
circuit breakers, turn the AC main circuit breaker
No. 2 OFF. Move the slide cover from the transfer
switch over to cover the No. 2 main circuit breaker.
Move the transfer switch up to the ON position. In
this configuration, all components can be used
with power supplied from Shore 1 cord up to a
maximum of 30 amps.

Shore Power Connection

The shore power system requires a special,
marine grade three-conductor cable to make a
proper connection to the shore. Dockside
connections and the boat side connections are
plug-in. Boatside connections are also locked in
FORMULA
GENERATOR
ON
BLOWERS
MAIN #1
150
REVERSE
POLARITY
150
REVERSE
POLARITY

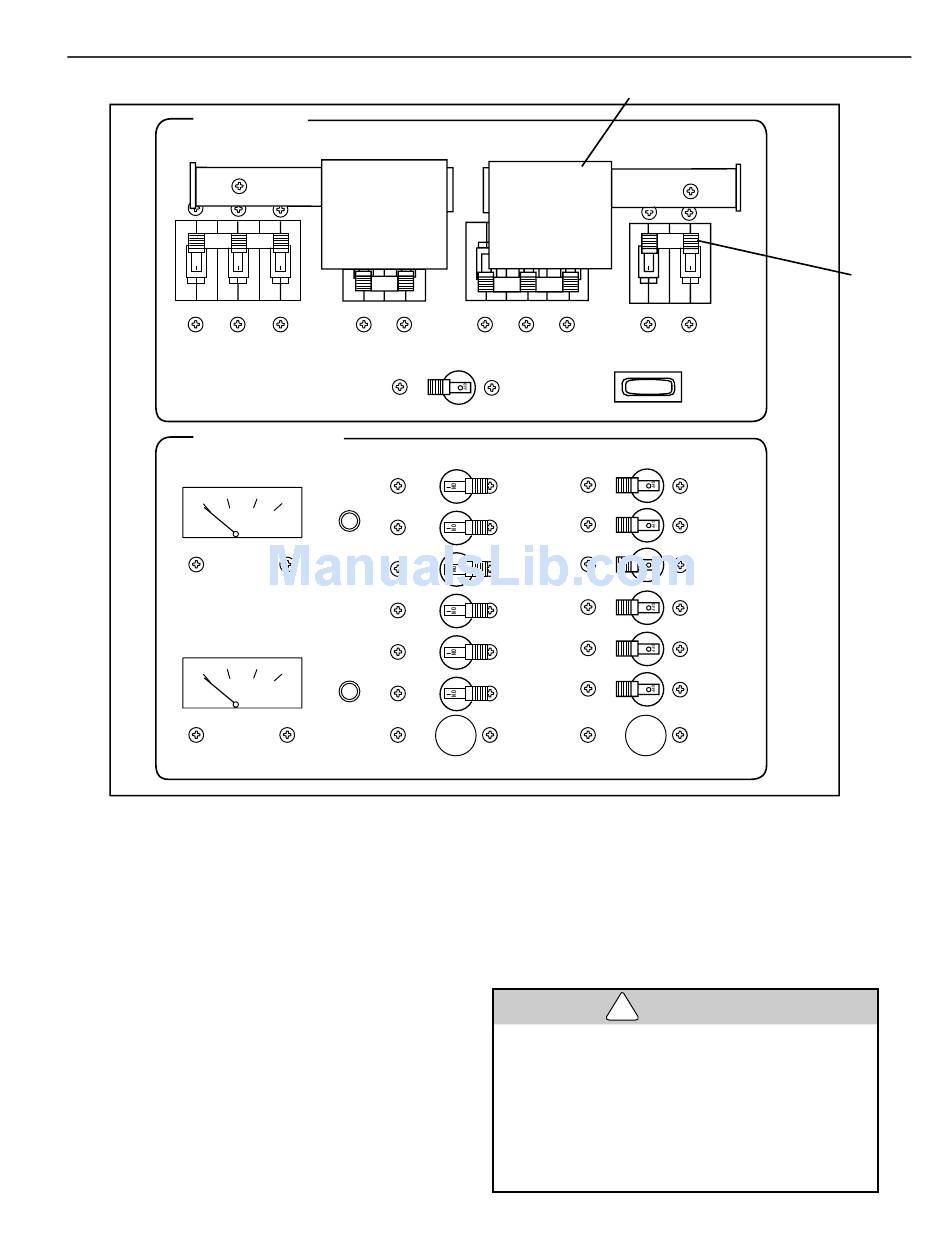

Using Shore 1 Power Cord
Figure 5-6
CRUISER/SUPERSPORT
1
SHOREPOWER
MAIN #2
TRANSFER
ON
GENERATOR CONTROLS
START
MAIN #2
BATTERY
CHARGER
PORT
OUTLETS
STBD
OUTLETS
GALLEY
OUTLETS
AIR
COND,
ICE
MAKER
CABIN
HEATER
position with a threaded locking collar to prevent
accidental disconnection and enhance water
resistance. Refer to Specifications, in Section 3,
for location of your shore power receptacles.
!
WARNING
Plugs and receptacles for different
systems are designed in non-
interchangeable configurations. A plug
from one system cannot fit into the
receptacle of another system. Do not
modify a shore power cable. Use only
commercially available adapters for
system modification.
ON
STOP
WATER
HEATER
REFRIG.
MICROWAVE
STOVE
WALL
VACUUM
ACC./
AIR COND.
ACC.
FOR146A
