HELM CONTROLS AND
INDICATORS

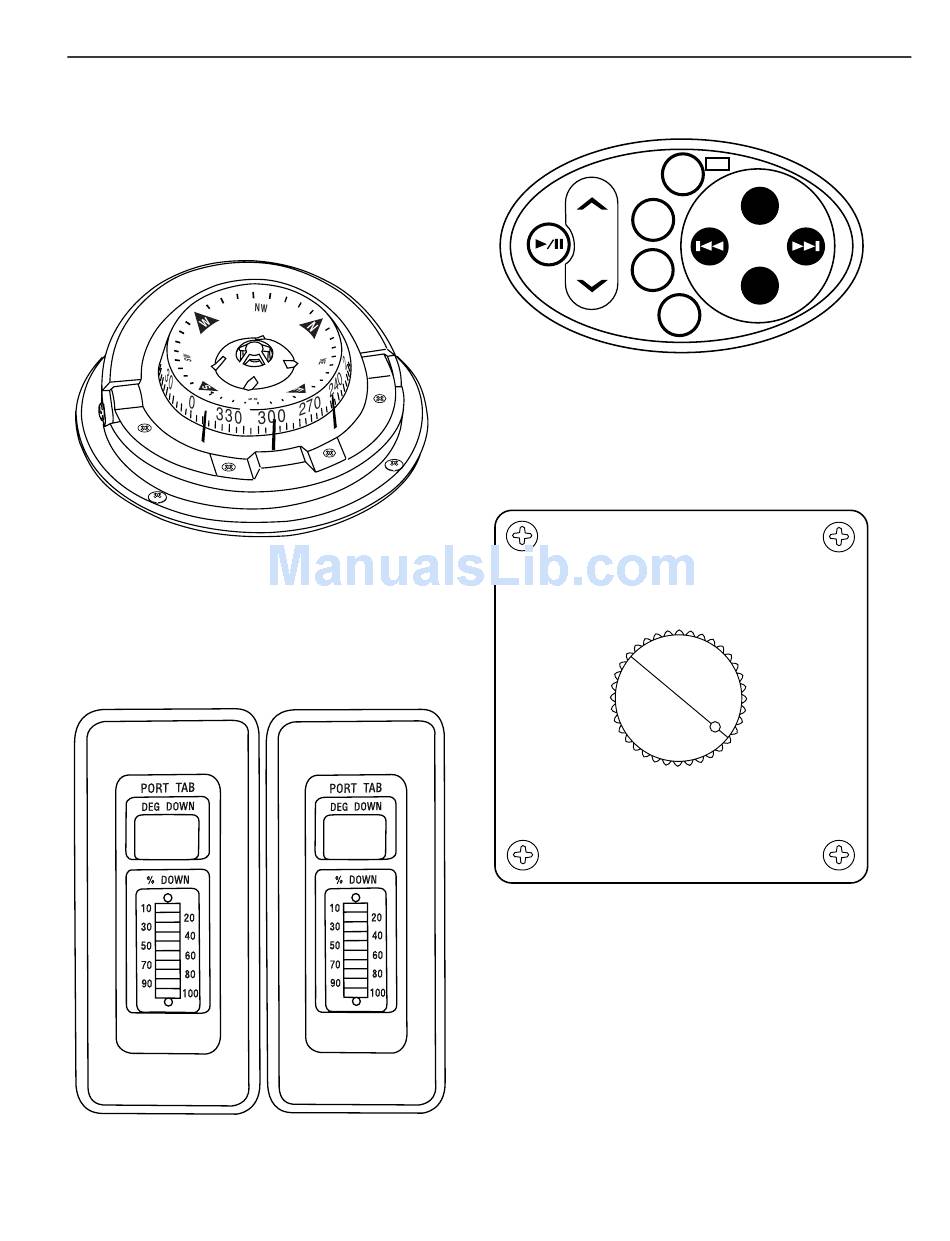

Compass—Aids in navigation of your Formula
boat, a compass is mounted at the helm. Refer to
the compass user's manual supplied in your
Owner Information Binder for operating
information.
Compass
Figure 4-24
Trim Tab Indicators—Displays the trim tab
location in degrees and percent of deflection.
Refer to Trimming-Drive Units and Trim Tabs, in
Section 7, for trim tab operation.
Trim Tab Indicators
Figure 4-25
FORMULA
CONTROLS AND INDICATORS
Stereo Remote Control—Provides full-feature
stereo remote control from the helm (Figure 4-26).
Stereo Remote Volume Control—Controls local
volume of the stereo. Several volume controls are
installed in your Formula boat (Figure 4-27).
FOR025
FOR063
CRUISER/SUPERSPORT
SRC
TUN
DISC UP
OFF
CD
VOLUME
TRACK/TUNE
CD
CH
DISC DOWN
TAPE
Stereo Remote Control
Figure 4-26
