Section 1
Introduction

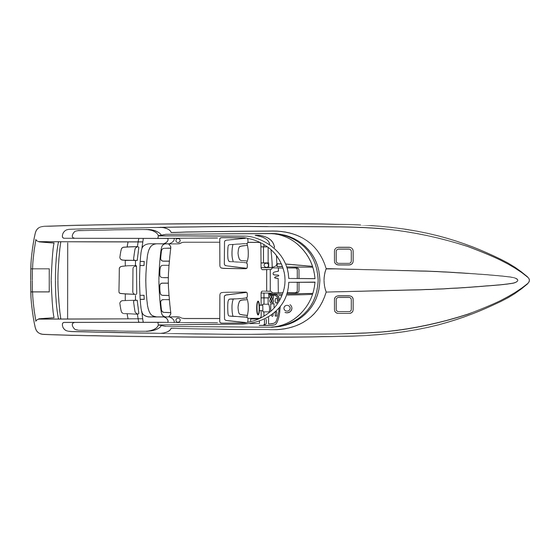

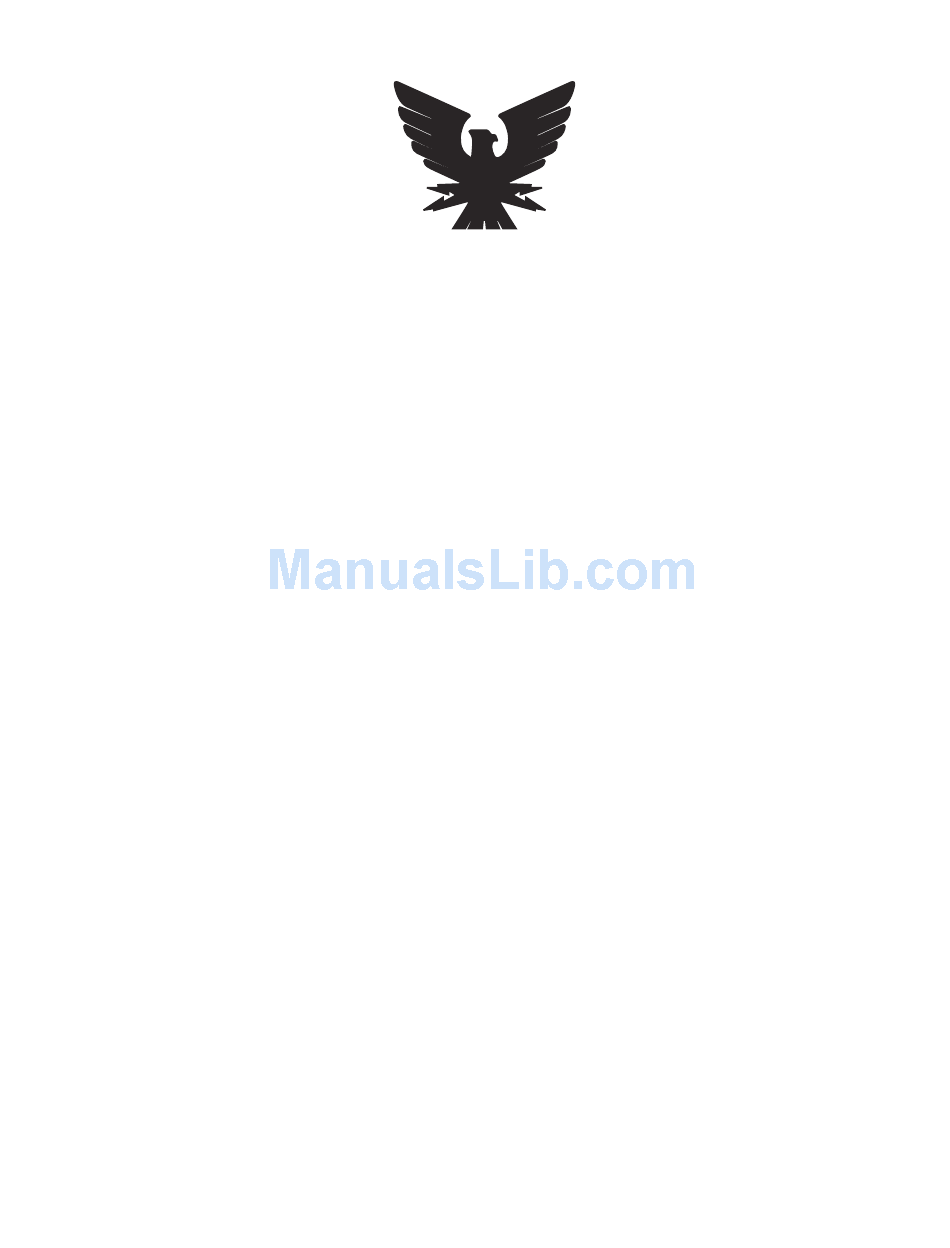

Welcome Aboard

Dear Formula Owner:
Welcome aboard! We appreciate how much careful thought, research and planning you put into the
decision to purchase a new boat, and we are pleased to welcome you as a new member of the Formula
family.
Members of the Formula team – your local dealership's personnel as well as all the Formula employees
who had a part in building, inspecting and providing support for your boat – are dedicated to delivering the
highest quality product possible, and we all share in your pride of ownership.
Your Formula boat will afford you many hours of relaxation and pleasure on the water. Along with the
enjoyment, however, comes responsibility for not only yourself but also your passengers and others on
the water. This Owner Information Manual is designed to help you familiarize yourself with your new
Formula before you take her out on the water and as a quick-reference tool whenever a little information
is needed. Your selling dealer will also be glad to help you learn more about your new boat should any
questions arise.
We also encourage you, and all those who will be boating with you, to take a safe boating course. The
United States Coast Guard Auxiliary, the United States Power Squadron, and the American Red Cross all
offer free courses. Call 1-800-336-BOAT for information on the boating course nearest you (in Virginia,
call 1-800-245-BOAT). The more you know about boating, the more fun you will have!
Congratulations on your wise decision. We wish many satisfying hours of boating pleasure to you and
your crew!
Sincerely,
Scott D. Porter
President
1-1
FORMULA
FASTECH
