Ac Electrical - Formula Cruiser Owner's Manual

PERFORMANCE CRUISER/SUPER SPORT

AC ELECTRICAL

CAUTION
Any modification performed on the boat's
AC system must be made by a qualified
marine technician. The modification must
be checked to assure compliance with
ABYC guidelines and National Electrical
Codes.
1
MAIN CONTROLS
SHOREPOWER
MAIN #1
ON ON
6
120V 60HZ AC SYSTEM
MAIN #1
50
0
AC VOLTS
5
MAIN #2
50
0
AC VOLTS
4
1. Shore Power No. 1 Main Circuit
Breaker
2. Shore Power No. 2 Main Circuit
Breaker
5-4
2
GENERATOR
ON
100
150
REVERSE
POLARITY
100
150
REVERSE
POLARITY
3. Shore Power No. 2 Reverse
Polarity Light
4. Shore Power No. 2 Voltmeter

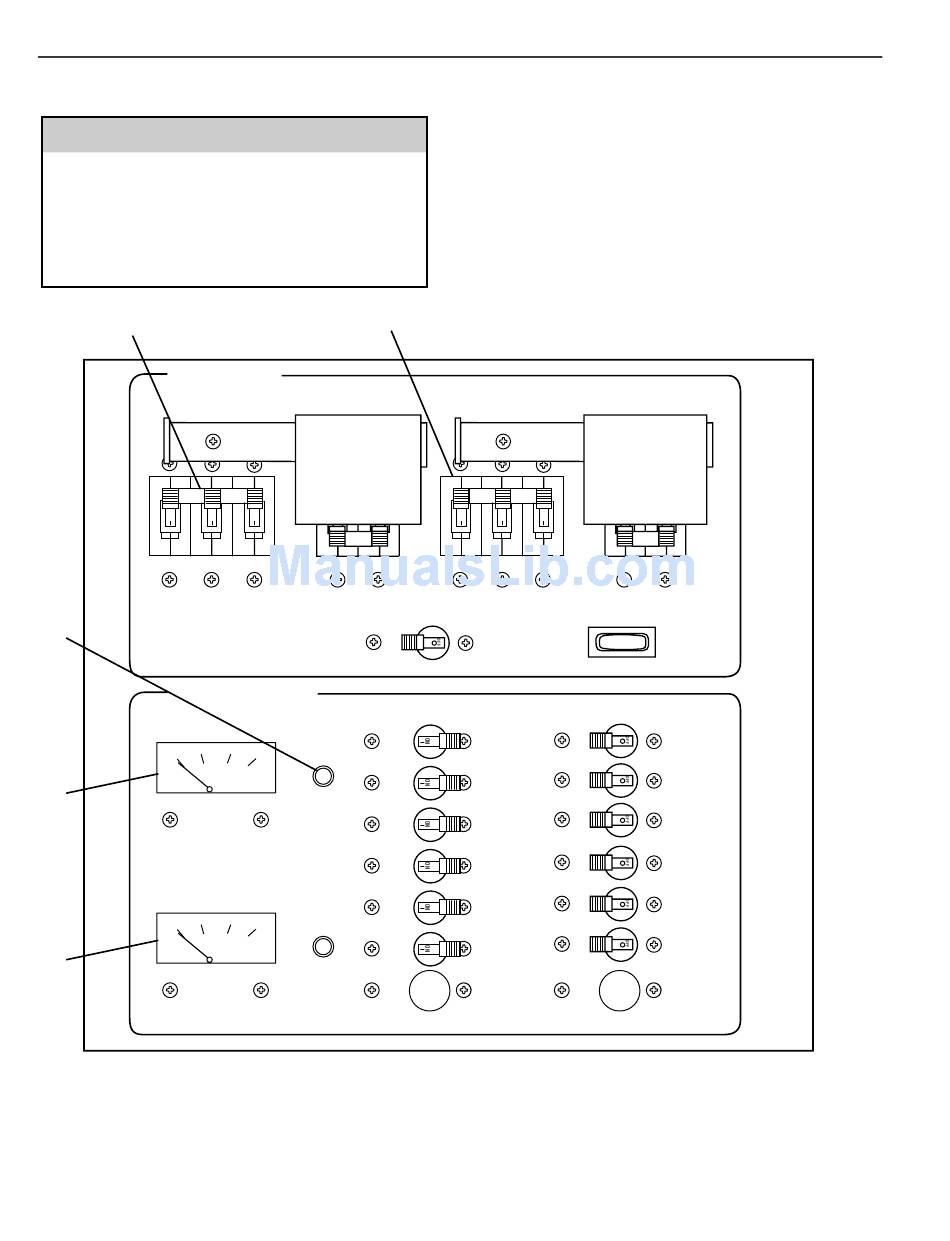

AC Electrical Panel
CRUISER/SUPERSPORT
The AC portion of the control panel receives AC
power from the shore power cable(s) or the
generator. The AC panel distributes power through
two main circuit breakers which in turn supplies
the individual branch circuit breakers. AC
electricity typically operates the following
equipment:
● Electrical outlets
● Microwave, Stove and Refrigerator
Battery charger and Hot water heater
●
● Air conditioning and Vacuum
SHOREPOWER
MAIN #2
ON ON ON
GENERATOR CONTROLS
BLOWERS START
MAIN #1
BATTERY
CHARGER
PORT
OUTLETS
STBD
OUTLETS
GALLEY
OUTLETS
AIR
COND,
ICE
MAKER
CABIN
HEATER
Figure 5-3
TRANSFER
STOP
MAIN #2
WATER
HEATER
REFRIG.
MICROWAVE
STOVE
WALL
VACUUM
ACC./
AIR COND.
ACC.
5. Shore Power No. 1 Voltmeter
6. Shore Power No. 1 Reverse
Polarity Light
FOR076
FORMULA
