Installation of the Opener

Caution:
*Be sure that the opener is installed in a level and paralleled position and is properly secured.
Improper installation could result in property damage, severe injury, and/or death.
* Before starting installation, ensure that there is no point of friction during the entire movement of
the gate and there is no danger of derailment.
* Ensure that the Warning Signs are present.
Necessary Tools: The following tools may be
necessary to install the Gate opener. You will
need screwdrivers, an electric drill, wire cutters
and a wire stripper, a socket set, and possibly
access to a welder.

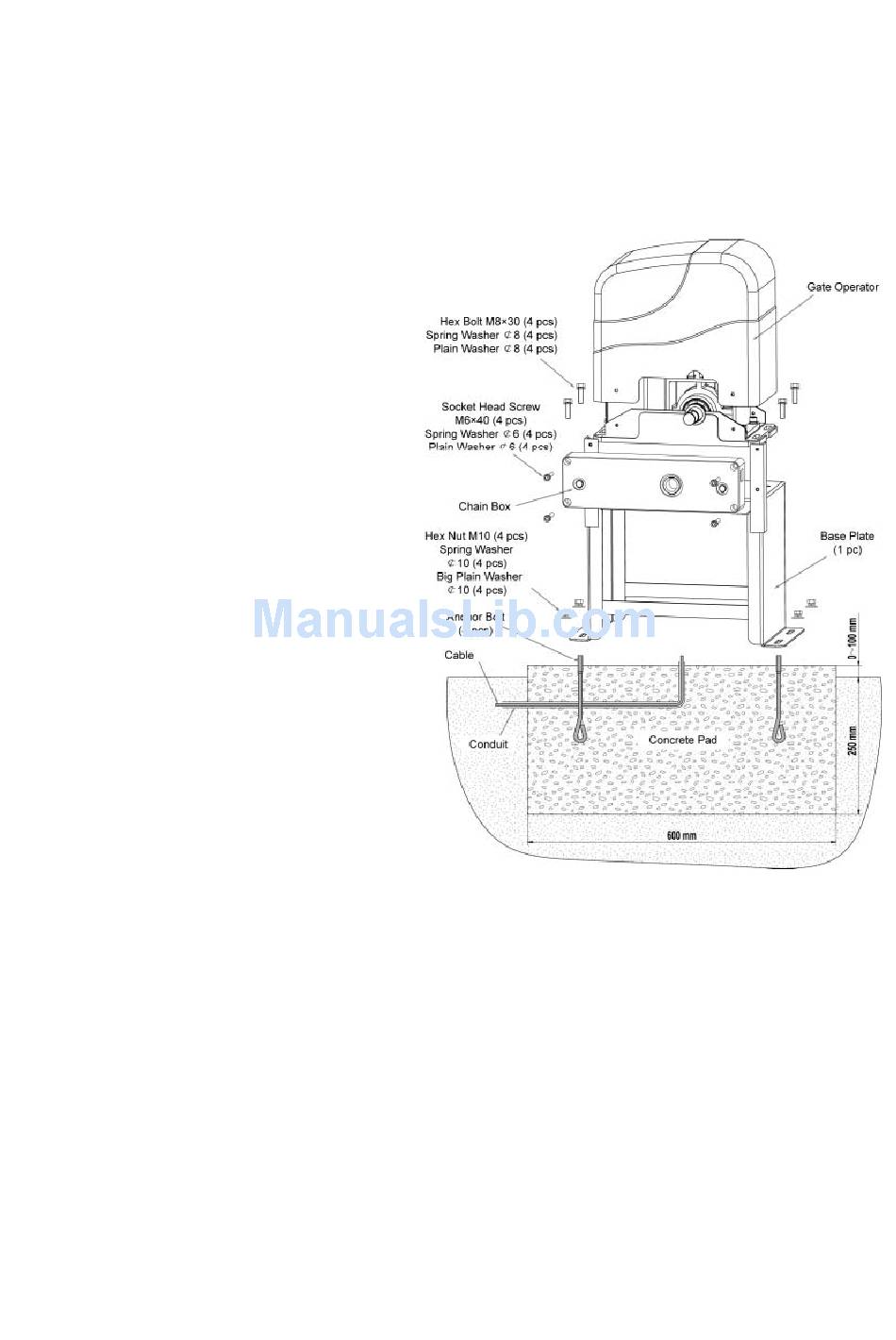

When install the opener, you should build a
concrete pad to support the base plate of opener
in order to maintain proper stability.
The installation proceeds are as follows:
1.Dig a hole for a concrete pad which should be
approximately 60 x 32 x 35cm (24〞x 13〞x 14
〞). It may protrude 10 cm (4") above ground and
25 cm (10") in depth underground. Increase the
pad height if necessary to protect the system
from flooding, heavy snow etc.
2. Prepare one or more conduits for the electrical
cables before pour concrete. Remember that
cable conduits have to pass through the hole in
the base plate.
3. Pour concrete and before it starts to harden,
check that it is parallel to the gate leaf and
perfectly level.
4. The four anchor bolts must be set into the
concrete when it is poured, make sure the position of anchor bolts was placed according to the position of
mounting holes on the base plate before concrete become harden.
5. Mount the base plate to the concrete Pad. It's only temporary installation. Further adjustment will be
required when install the chain.
6. Mount the chain box to the base plate by using screws and washers, don't make the four screws too tight.

Manual Operation

The opener should be put in the manual (emergency release) position before fitting the chain, installing the
opener and limit switch. The process is as follows:
1) Take of the rubber stopple.
2) Insert the Release Key（provided）and turn it in counter-clockwise 180° to disengage the clutch between
the gear shaft and power output. Now the opener is in the manual operation.
