Retro-Reflective Photocell (Item No. LM104B)
User Manual
Thank you for purchasing the Retro-Reflective Photocell (LM104B). It is designed to be
used as a reversing sensor for automatic garage door, vehicle swing gates and parking
barriers. It is very easy to install and use with reliable performance.
Specifications
Detection Method: Retro-Reflective
o
Angle: 1.5
approx.
Max. Sensing Range: 40 Feet (12 m)
Supply Voltage: 12-36VDC/12-24VAC
Output: Relay SPDT
Output Capacity: 1A/24VDC, 1A/120VAC
Protection Degree: IP66

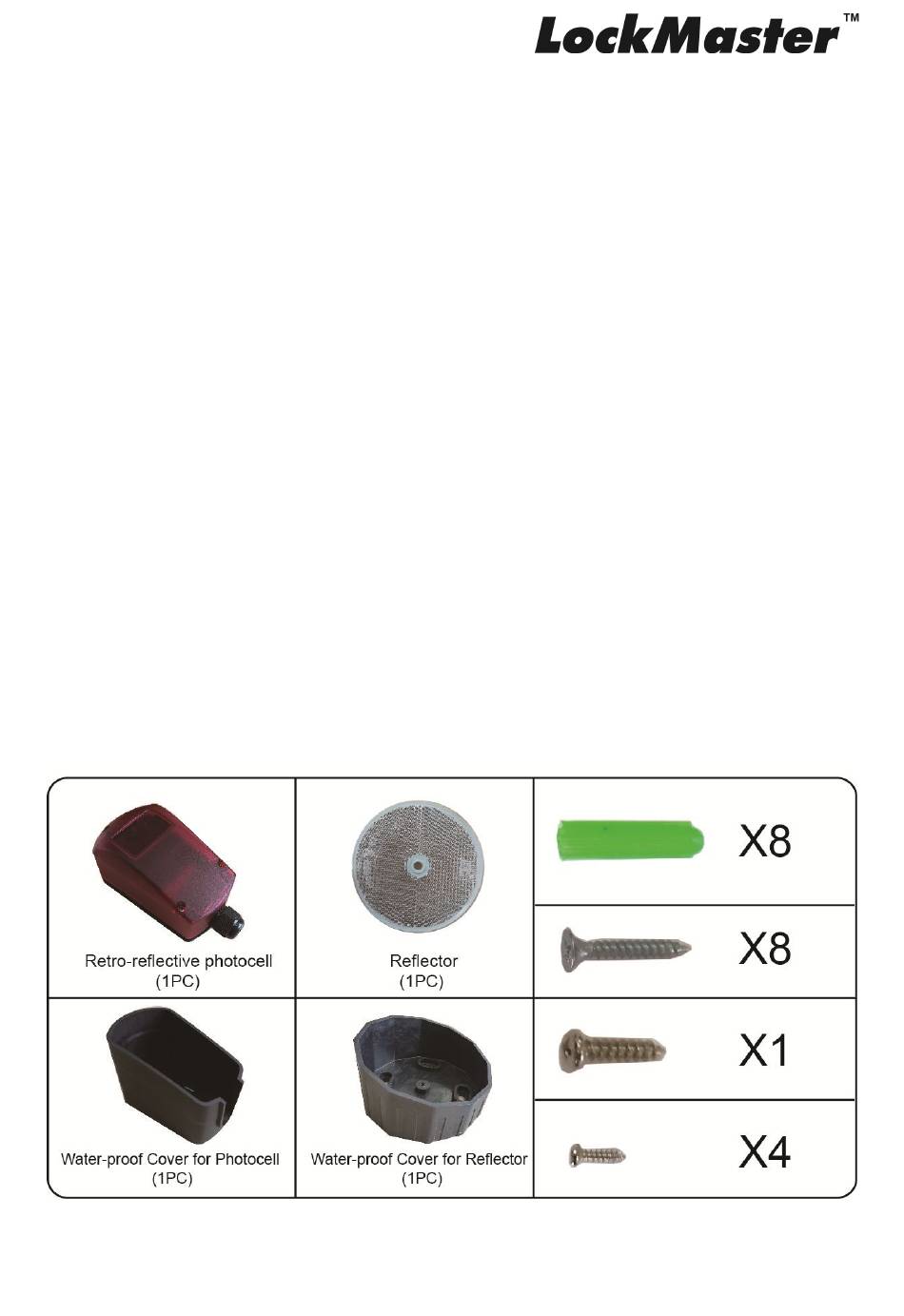

Part List
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LockMaster LM104B
Summary of Contents for LockMaster LM104B
- Page 1 Retro-Reflective Photocell (Item No. LM104B) User Manual Thank you for purchasing the Retro-Reflective Photocell (LM104B). It is designed to be used as a reversing sensor for automatic garage door, vehicle swing gates and parking barriers. It is very easy to install and use with reliable performance.
- Page 2 Installation WARNINGS ★ Do not touch un-insulated cables unless they are disconnected upstream. Do not install the sensor during storms with lightning. ★ If the cable is subjected to flexing, a coiled section should be used with a bending radius that prevents 90 degree bends in angle. Install the photocell over the height of 20cm.
