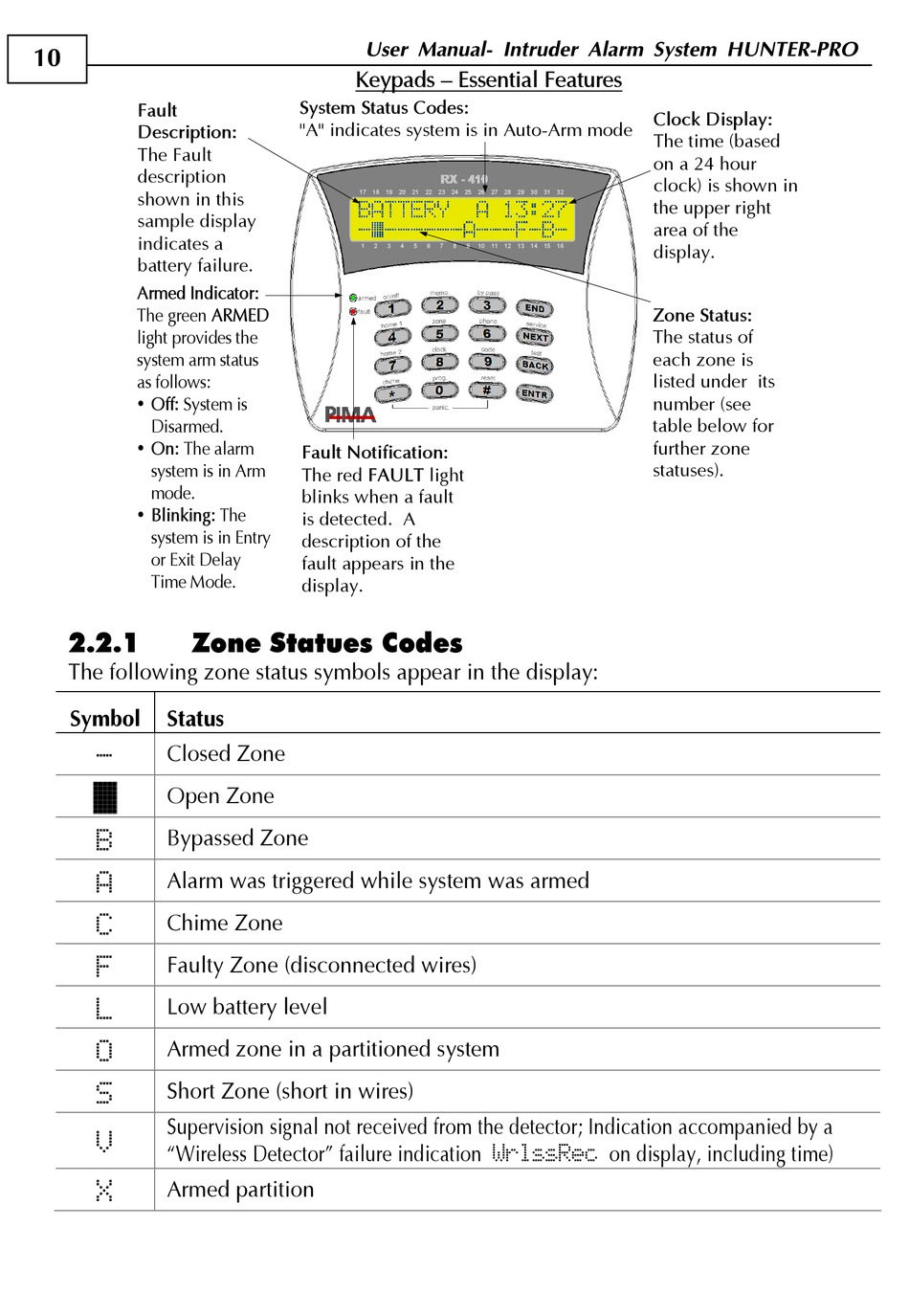

Zone Statues Codes - Pima hunter-pro User Manual

10
Fault
Description:
The Fault
description
shown in this
sample display
indicates a
battery failure.
Armed Indicator:
The green ARMED
light provides the
system arm status
as follows:
Off: System is
Disarmed.
On: The alarm
system is in Arm
mode.
Blinking: The
system is in Entry
or Exit Delay
Time Mode.
2.2.1

Zone Statues Codes

The following zone status symbols appear in the display:
Symbol Status
-
Closed Zone
Open Zone
B
Bypassed Zone
A
Alarm was triggered while system was armed
C
Chime Zone
F
Faulty Zone (disconnected wires)
L
Low battery level
O
Armed zone in a partitioned system
S
Short Zone (short in wires)
Supervision signal not received from the detector; Indication accompanied by a
V
"Wireless Detector" failure indication
X
Armed partition
User Manual
Keypads – Essential Features
System Status Codes:
"A" indicates system is in Auto-Arm mode
17 18 19 20 21 22 23 24 25
1 2 3 4 5 6 7 8 9
Fault Notification:
The red FAULT light
blinks when a fault
is detected. A
description of the
fault appears in the
display.
- Intruder Alarm System
26 27 28 29 30 31 32
10 11 12 13 14 15 16
WrlssRec
on display, including time)
HUNTER-PRO
Clock Display:
The time (based
on a 24 hour
clock) is shown in
the upper right
area of the
display.
Zone Status:
The status of
each zone is
listed under its
number (see
table below for
further zone
statuses).
