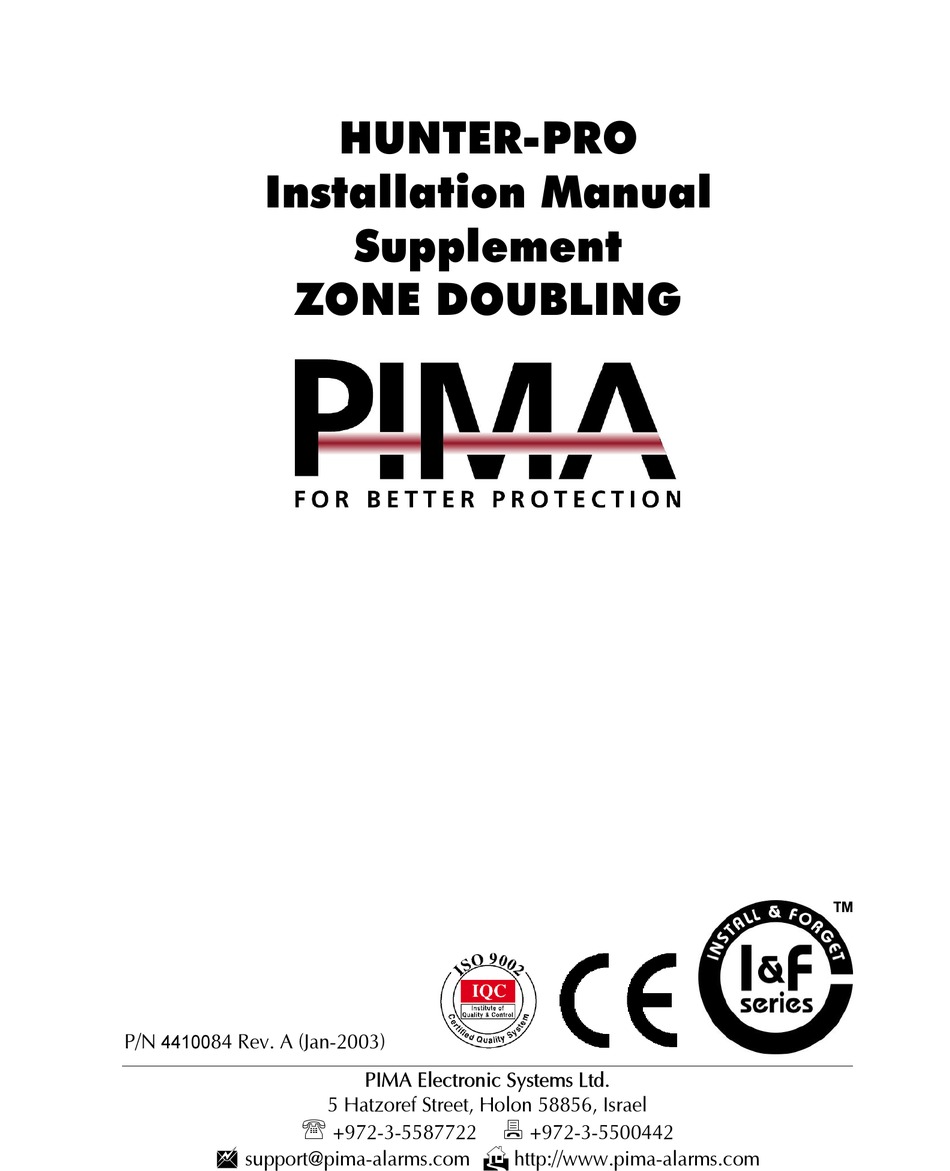

- Page 1 HUNTER-PRO Installation Manual Supplement ZONE DOUBLING 44100 84 Rev. A (Jan-2003) PIMA Electronic Systems Ltd. 5 Hatzoref Street, Holon 58856, Israel ℡ +972-3-5587722 +972-3-5500442 support@pima-alarms.com http://www.pima-alarms.com...
- Page 2 PIMA’s prior written consent is granted. All efforts have been made to ensure that the content of this manual is accurate. Pima retains the right to modify this manual or any part thereof, from time to time, without serving any prior notice of such modification.
-
Page 3: Table Of Contents
HUNTER-PRO Installation Manual Supplement - ZONE DOUBLING Table of Contents Introduction .....................1 Upgrading an Existing HUNTER-PRO ..............1 Upgrade Kit Contents...................... 2 Zones Connection Options ..................2 Connecting and Configuring................3 Connecting the Doubled Zones ................3 Connecting Without an EOL Resistor ................3 Connecting With an EOL Resistor ................... - Page 4 Table of Contents This page was intentionally left blank...
-
Page 5: Introduction
Introduction Zone Doubling is a cost-effective way to expand the eight-zone HUNTER-PRO control panel up to 16 zones. The zone doubling is done without any hardware add-on. Zone doubling uses the same HUNTER- PRO panel, the smoke input and adding a resistor and diode to each of the doubled zones. -
Page 6: Upgrade Kit Contents
Connecting and Configuring Upgrade Kit Contents The upgrade kit includes the following items: ! HUNTER-PRO EPROM with version 2l ! 16Kb E PROM ! 8 Diodes ! 8 Resistors Zones Connection Options The Zones can be connected in one of the configurations described in Table 1. -
Page 7: Connecting And Configuring
HUNTER-PRO Installation Manual Supplement - ZONE DOUBLING Connecting and Configuring Connecting the Doubled Zones Connecting Without an EOL Resistor Zones 1 through 8 are connected with a serial 10KΩ resistor to the zone inputs on the control panel (see Figure 2). Zones 9 to 16 are connected with a serial diode to the zone inputs (i.e., zone 9 is connected to zone... -
Page 8: Connecting With An Eol Resistor
Connecting and Configuring IMPORTANT! Pay attention to the polarity (direction) of the diode when connecting it (see Figure 3). This side is connected to the SMOKE input Figure 3 - Connecting the Diode Connecting With an EOL Resistor Zones 1 through 8 are connected as without an EOL resistor (i.e., a serial 10KΩ... -
Page 9: Connecting Normally Open Detectors
HUNTER-PRO Installation Manual Supplement - ZONE DOUBLING NOTE: Figure 4 illustrates how to connect NC (Normally Closed) type detectors; for NO (Normally Open) type read the following. Connecting Normally Open Detectors As a rule, when using Zone Doubling Feature, Zones 1 through 8 can include ONLY Normally Closed (NC) type detectors. -
Page 10: Configuring Hunter-Pro For Zone Doubling
For future use. M Zone Doubling feature; when enabled (+), the zone-doubling feature is enabled and the HUNTER-PRO can support up to 16 zones without expanding the hardware. After enabling the Zone Doubling, the 16 zones can be configured using...
