Page 1: User Manual

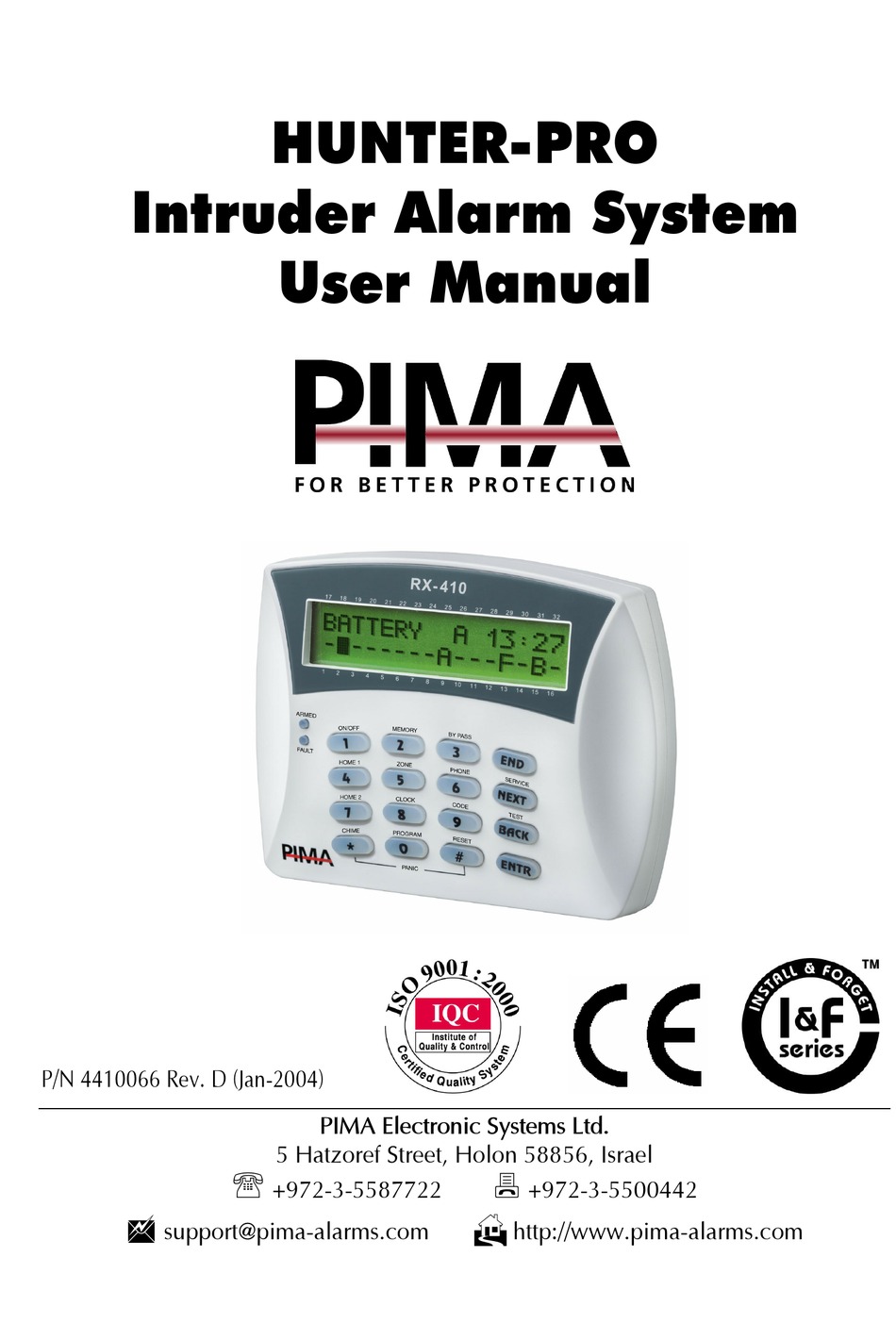

HUNTER-PRO Intruder Alarm System User Manual P/N 4410066 Rev. D (Jan-2004) PIMA Electronic Systems Ltd. 5 Hatzoref Street, Holon 58856, Israel ℡ +972-3-5587722 +972-3-5500442 support@pima-alarms.com http://www.pima-alarms.com... - Page 2 PIMA’s prior written consent is granted. All efforts have been made to ensure that the content of this manual is accurate. Pima retains the right to modify this manual or any part thereof, from time to time, without serving any prior notice of such modification.
-
Page 3: Table Of Contents
HUNTER-PRO Intruder Alarm System - User Manual Table of Contents Chapter 1 Introduction ................5 Main Features of the HUNTER-PRO ...........5 Operating Codes ................6 Chapter 2 Keypads and the Remote-Control........... 9 Introduction ..................9 Keypads Description ................9 2.2.1 Zone Statues Codes...............10 2.2.2 System Status Codes..............11... - Page 4 User Manual Intruder Alarm System HUNTER-PRO Chapter 4 Troubleshooting ................ 30 Troubleshooting ................30 Wireless Detectors for Walk-Test............31 4.2.1 Wireless Event Histories..............32 Code Related Problems ..............33...
-
Page 5: Chapter 1 Introduction
HUNTER-PRO Intruder Alarm System once a week. The HUNTER-PRO Intruder Alarm System offers a choice of different keypad models. All but one (RX-200) are equipped with a Liquid Crystal Display (LCD). For complete instructions on... -
Page 6: Operating Codes
Double communication to Monitoring Stations by telephone and Long-Range VHF/UHF Radio Transmitter Connection to a local printer to print all events Connection to an external PIMA output card to activate auxiliary devices such as video cameras etc. Enabled for expansion (zone doubling, wireless, etc.) - Page 7 HUNTER-PRO Intruder Alarm System - User Manual NOTES: You can program a name for each user code. This user name will appear when viewing the ‘history log.’ Short Code: A two-digit code with which you can ONLY arm the system.
- Page 8 User Manual Intruder Alarm System HUNTER-PRO Empty Page...
-
Page 9: Chapter 2 Keypads And The Remote-Control
You have a choice of keypad models with Liquid Crystal Display (LCD) that you can connect to the HUNTER-PRO. All the keypads are identical in functionality and have a display with two rows of 16 characters on each row. The keypads vary only in design and size of display. -
Page 10: Zone Statues Codes
User Manual Intruder Alarm System HUNTER-PRO Keypads – Essential Features System Status Codes: Fault Clock Display: "A" indicates system is in Auto-Arm mode Description: The time (based The Fault on a 24 hour description clock) is shown in 17 18 19 20... -
Page 11: System Status Codes
HUNTER-PRO Intruder Alarm System - User Manual 2.2.2 System Status Codes Appear to the left of the clock: Symbol Status System is communicating via phone lines Siren is ON Relay is active (ON) System is sending transmission via long-range radio... -
Page 12: Outdoor Anti-Vandal Keypad
Note that your installer can disable the LED indications Although the RX-200 does not have an LCD display, all its key functions are identical to the regular keypads. However, programming the HUNTER-PRO with RX-200 is unsupported. LED indications: Indication... -
Page 13: The Remote Control
HOME mode, and send a panic signal. NOTE: REM-3 is only available for HUNTER-PRO with wireless add-on system. The remote is a Code-Hopping type (i.e., the code is changed with each operation and thus prevents “code stealing”) with a key holder for carrying with ones keys. - Page 14 User Manual Intruder Alarm System HUNTER-PRO Empty Page...
-
Page 15: Chapter 3 System Functions
HUNTER-PRO Intruder Alarm System - User Manual Chapter 3 System Function IMPORTANT! symbol indicates information in the form of letters or numbers that you have to enter. 3.1 Arming and Disarming You have different options to Arm and Disarm the System; remote control with your telephone, remote control, Automatic Arming, and using your keypad as described bellow. -
Page 16: Auto Arming
. Enter desired time (in minutes) ENTR NOTE: When Auto Arming is programmed, the HUNTER-PRO Alarm System shall automatically arm at the set time. When the Silence time is set (must be greater then 5 minutes), the Alarm System shall automatically arm when no activity is sensed (i.e., all zones are closed) for the set time period. -
Page 17: Zone Bypass
HUNTER-PRO Intruder Alarm System - User Manual To cancel Passive Auto Arming time: Master Code PROGRAM PROGRAM ENTR ENTR ENTR 3.1.2 Zone Bypass Lets you bypass a zone if you wish to leave a window open, or if the particular zone is malfunctioning. In some systems, depending on the configuration by the installer, zone bypass is not possible under any circumstance if the system identifies one or more failures. -
Page 18: Bypass Entry Countdown
User Manual Intruder Alarm System HUNTER-PRO BYPASS Press to stop the arming procedure, or press to bypass the open zone and commence with the exit countdown. You must press one of the two choices; otherwise the system will automatically commence with the exit countdown and sound the alarm once it is armed. -
Page 19: Panic
HUNTER-PRO Intruder Alarm System - User Manual NOTE: The letter (for Chime) in the display above the zone number is visible only after you enter the Master code. CHIME To cancel a Chime Zone: Master Code RESET Zone Number CHIME To enable the Chime feature: Press and hold . -
Page 20: Keypad Buzzer
User Manual Intruder Alarm System HUNTER-PRO The HUNTER-PRO has an on-board relay to activate auxiliary devices such as video cameras and external floodlights. You can control the relay from the keypad and from a touch-tone telephone; refer to section 3.9 for instructions on controlling the HUNTER-PRO from telephones. -
Page 21: Programming
3.8 Programming IMPORTANT! The first step in programming any parameter in HUNTER-PRO begins with entering a valid Master Code, after which you will see the message Select:OFF in the keypad’s display. -
Page 22: User Codes
User Manual Intruder Alarm System HUNTER-PRO 3.8.1.2 User codes CODE To program User Code #1: Master Code SERVICE ENTR NEXT new User Code (4 to 6 ENTR ∗ digits) enter start/stop time frame ENTR enter user name (see table in section 3.8.2 in... - Page 23 HUNTER-PRO Intruder Alarm System - User Manual To delete User Code #2 through #16: Master Code CODE SERVICE NEXT (as many as the User Code RESET ENTR number) Example: In order to program or delete User Code #6, enter the Master Code, press the...
-
Page 24: Short Code
User Manual Intruder Alarm System HUNTER-PRO 3.8.1.4 Short Code CODE To program a Short Code: Master Code BACK (until Short Code is displayed) ENTR ENTR New Short Code (2 digits) CODE To delete a Short Code: Master Code BACK (until... -
Page 25: Entering Names
HUNTER-PRO Intruder Alarm System - User Manual 3.8.2 Entering Names When you program User Codes, you can also assign a User Name for each code. To program names use the keypad according to the following layout: A B C 1... - Page 26 , and end with pressing twice. NOTES: You can program up to four telephone numbers to which the HUNTER-PRO will call in an emergency. If you connect the HUNTER-PRO Alarm System on a PBX extension, remember to enter the prefix number and an asterisk before the telephone number, e.g., 9*555- 5555.
- Page 27 HUNTER-PRO Intruder Alarm System - User Manual To view programmed telephone numbers: Master Code PHONE SERVICE NEXT Telephone sequence SERVICE ENTR NEXT number. Now and then BACK to scroll between numbers To test a programmed telephone number: PHONE SERVICE NEXT...
-
Page 28: Time And Date
Correct time and date is important for proper functioning of the HUNTER-PRO Alarm System. The HUNTER-PRO Alarm System will report a failure if you don’t enter the time and date after a complete power failure (AC and Battery). The HUNTER-PRO Alarm System will not accept incorrect data. For example, if you enter 25:25 for the hour, the programming will be stopped automatically, and you will have to start the procedure from the beginning. -
Page 29: Partitions
HUNTER-PRO Intruder Alarm System - User Manual 3.10 Partitions The HUNTER-PRO can be programmed to function as several independent subsystems called “Partitions.” One or more zones can be allocated to each partition, with one User Code for each partition. Each User Code can be assigned to control one partition or the entire system as in regular operating mode. -
Page 30: Chapter 4 Troubleshooting
The HUNTER-PRO regularly checks itself and the devices that are connected to it. The red failure indication lamp will blink if the HUNTER-PRO detects any failure, and in some cases a failure will be reported to the monitoring station and/or private telephone number (according to installation programming.) A description of the failure will be displayed in... -
Page 31: Wireless Detectors For Walk-Test
“Walk Test” tests the strength of the radio transmission from the detector to the HUNTER-PRO only. During the Walk Test, the display will show the letter The Walk Test is valid for only 10 minutes from the time you start it. After 10 minutes you have to restart the Walk Test from the beginning. -
Page 32: Wireless Event Histories
Anti-Vandal Keypad Model In addition, the keypad will release tones in varying frequencies where the highest frequency represents the better reception. The wireless detectors will be automatically tested one after the other, and the readings will be saved in the system memory for future reference. -
Page 33: Code Related Problems
HUNTER-PRO Intruder Alarm System - User Manual 1 4 ) Z o n e B A T A U G 0 5 : 1 2 Supervision signal was not received from Zone 5 1 5 ) Z o n e...
