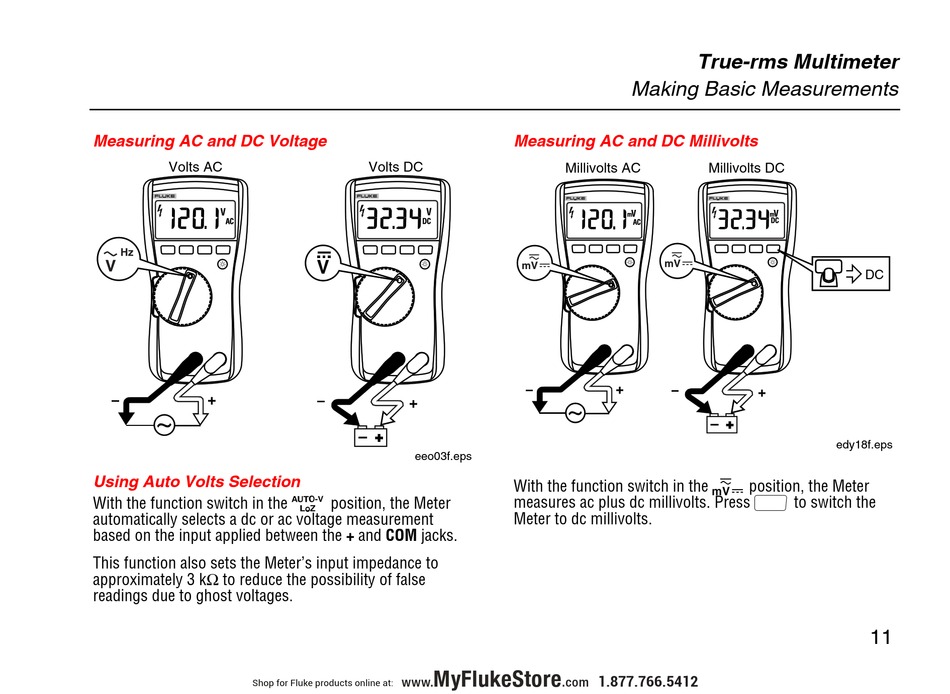

Measuring AC and DC Voltage
Volts AC
Using Auto Volts Selection
With the function switch in the x position, the Meter
automatically selects a dc or ac voltage measurement
based on the input applied between the + and COM jacks.
This function also sets the Meter's input impedance to
approximately 3 kΩ to reduce the possibility of false
readings due to ghost voltages.
Shop for Fluke products online at:
Volts DC
V
eeo03f.eps
MyFlukeStore
www.

Making Basic Measurements

Measuring AC and DC Millivolts
Millivolts AC
With the function switch in the l position, the Meter
measures ac plus dc millivolts. Press g to switch the
Meter to dc millivolts.
1.877.766.5412
.com
True-rms Multimeter
Millivolts DC
DC
edy18f.eps
11
